Instrument Panel - Exploded View




Instrument Panel - Exploded View

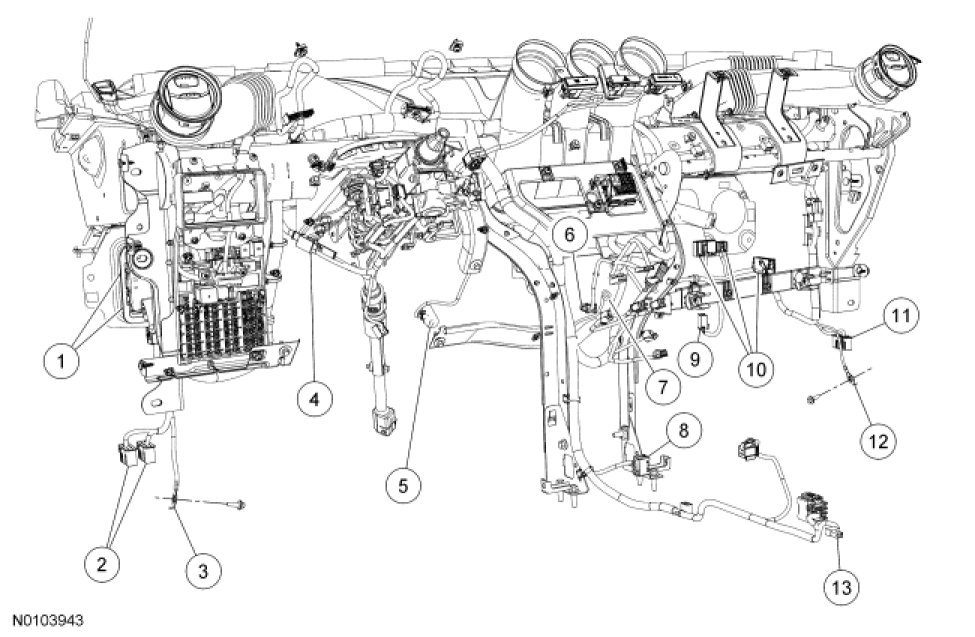

Instrument Panel Electrical Connectors

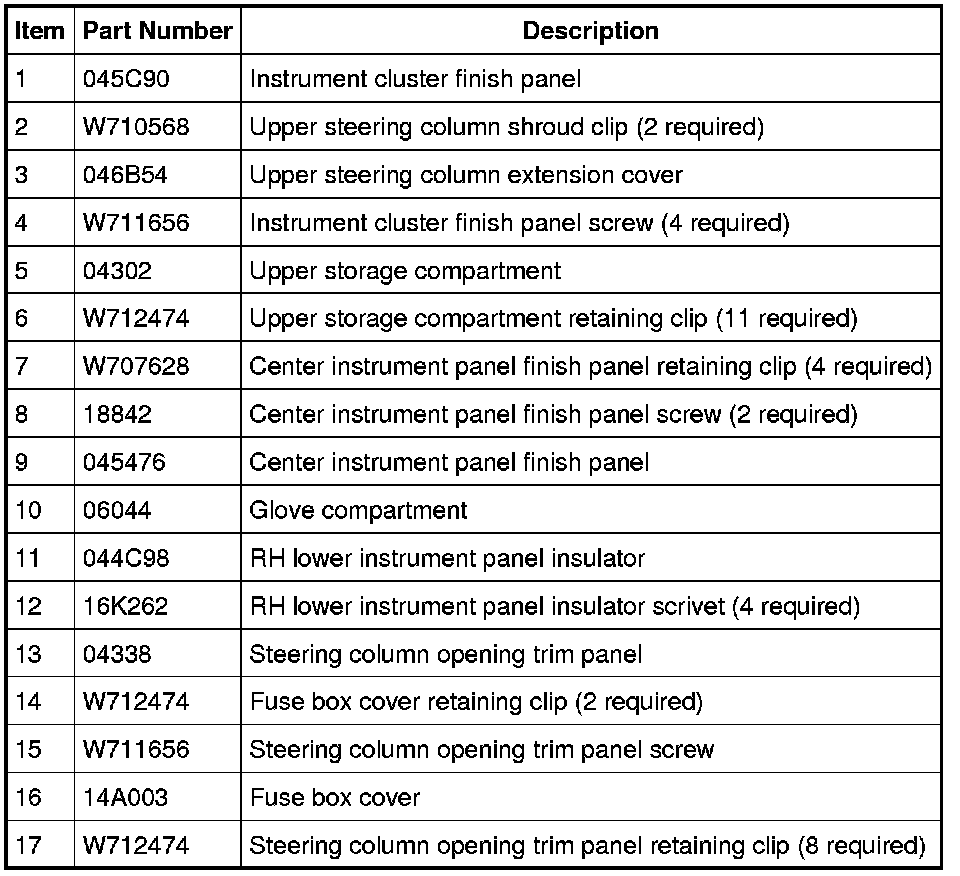

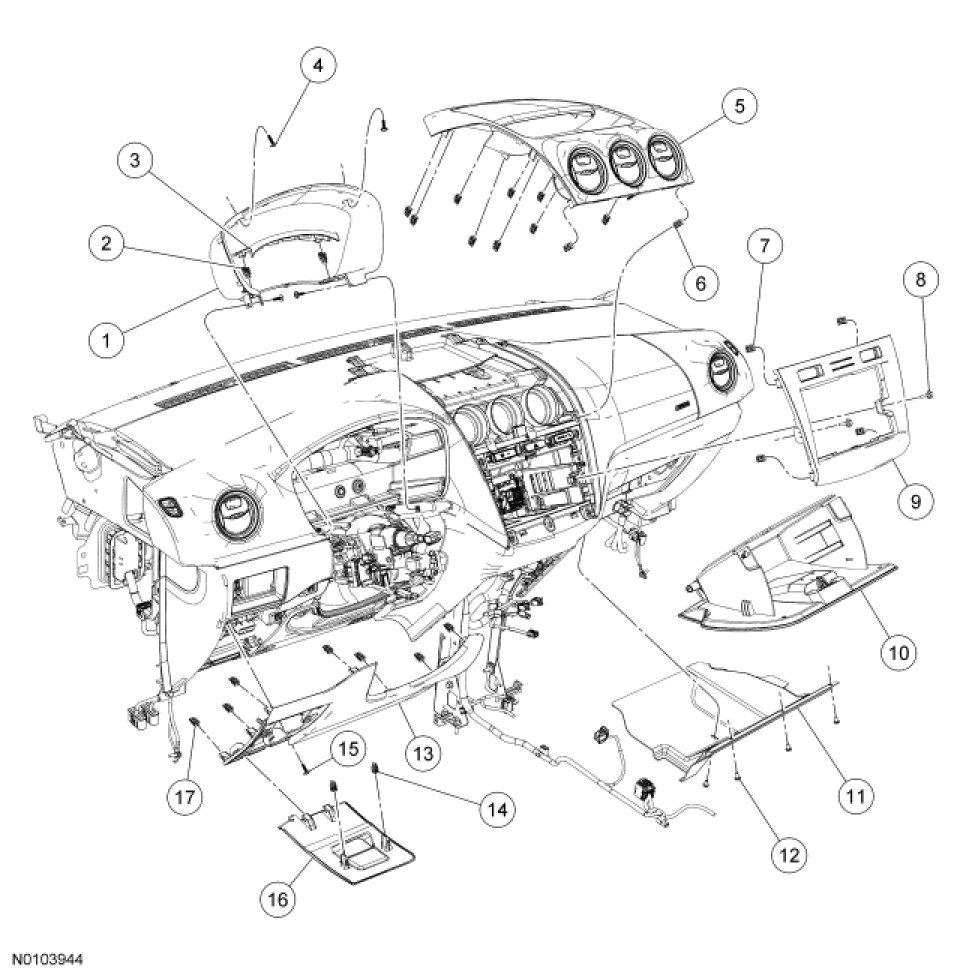

Instrument Panel Finish Panels

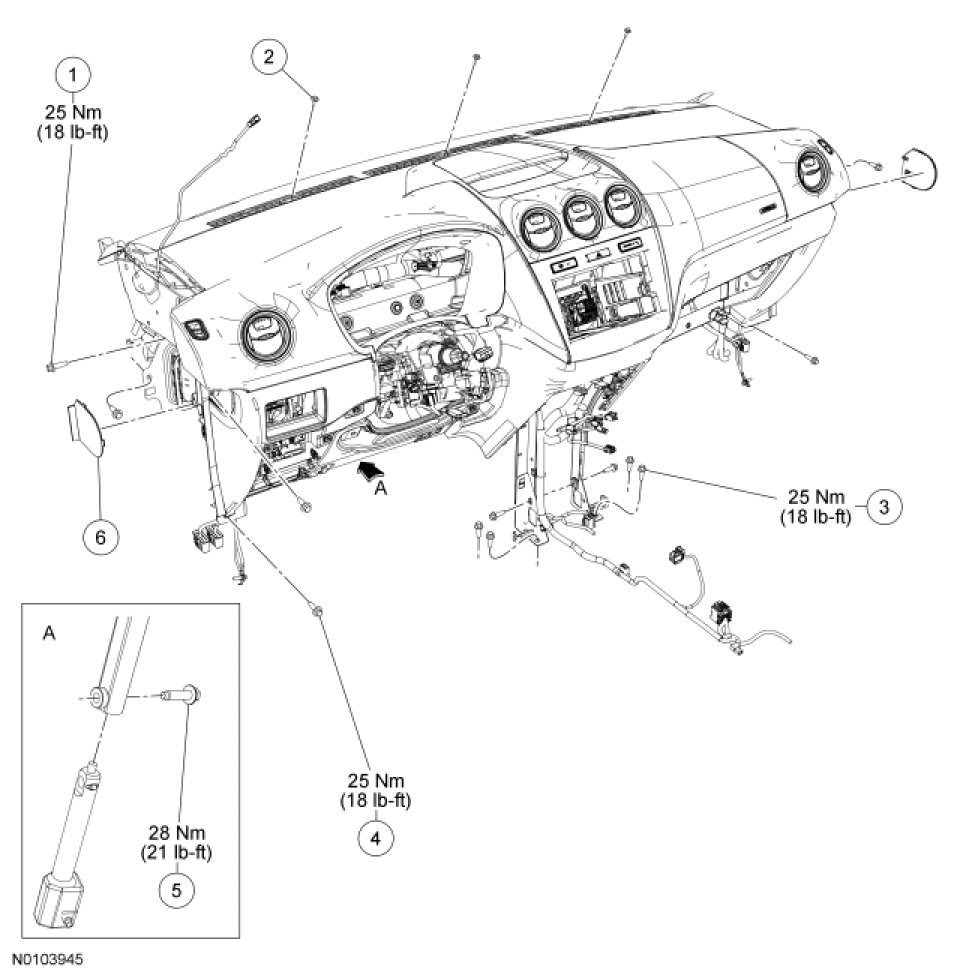

Instrument Panel Fasteners
