Test DW: Heated Oxygen Sensor (HO2S)

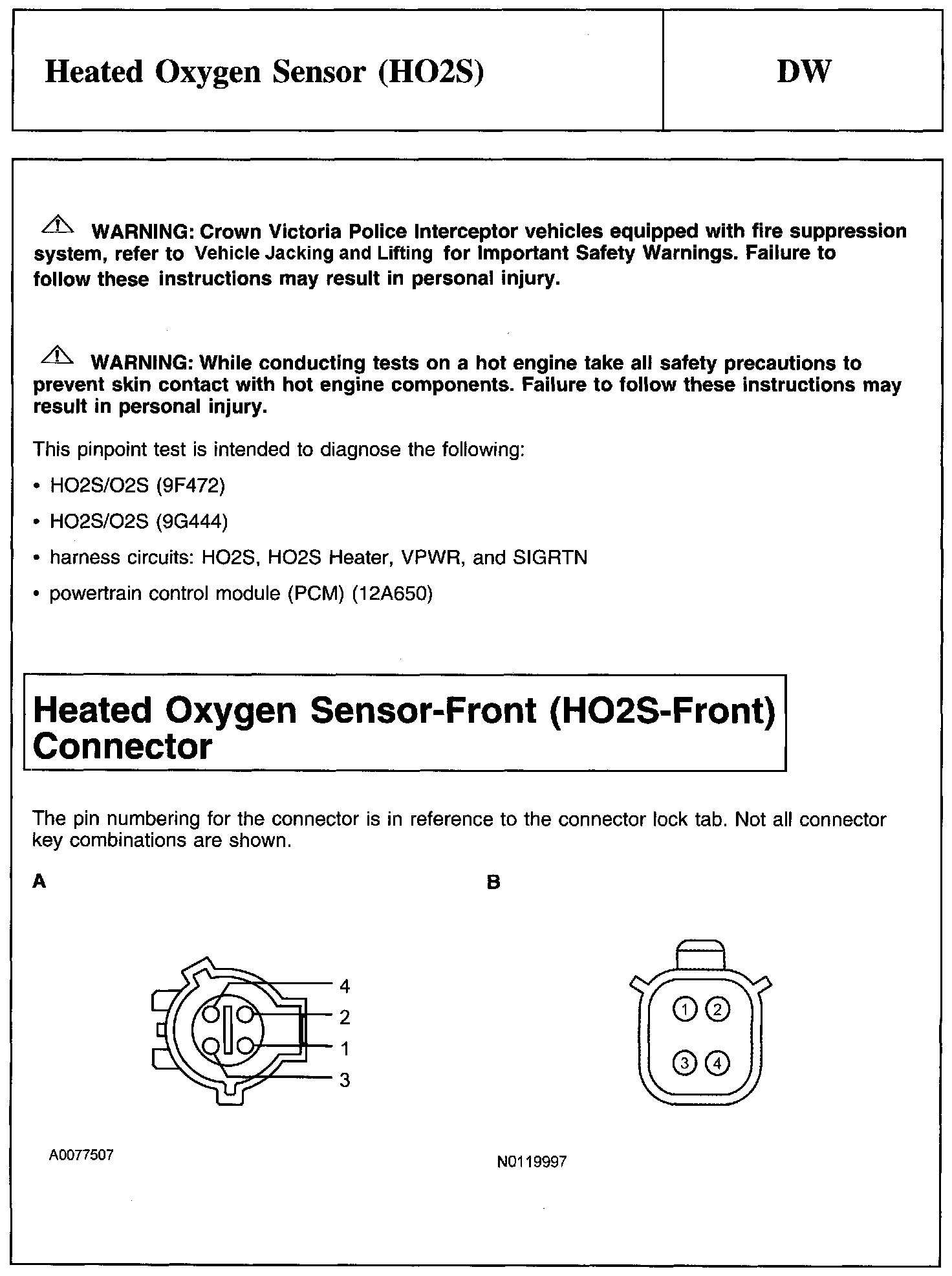

PINPOINT TEST DW: HEATED OXYGEN SENSOR (HO2S)Warnings And Heated Oxygen Sensor-Front (HO2S-Front) Connector:

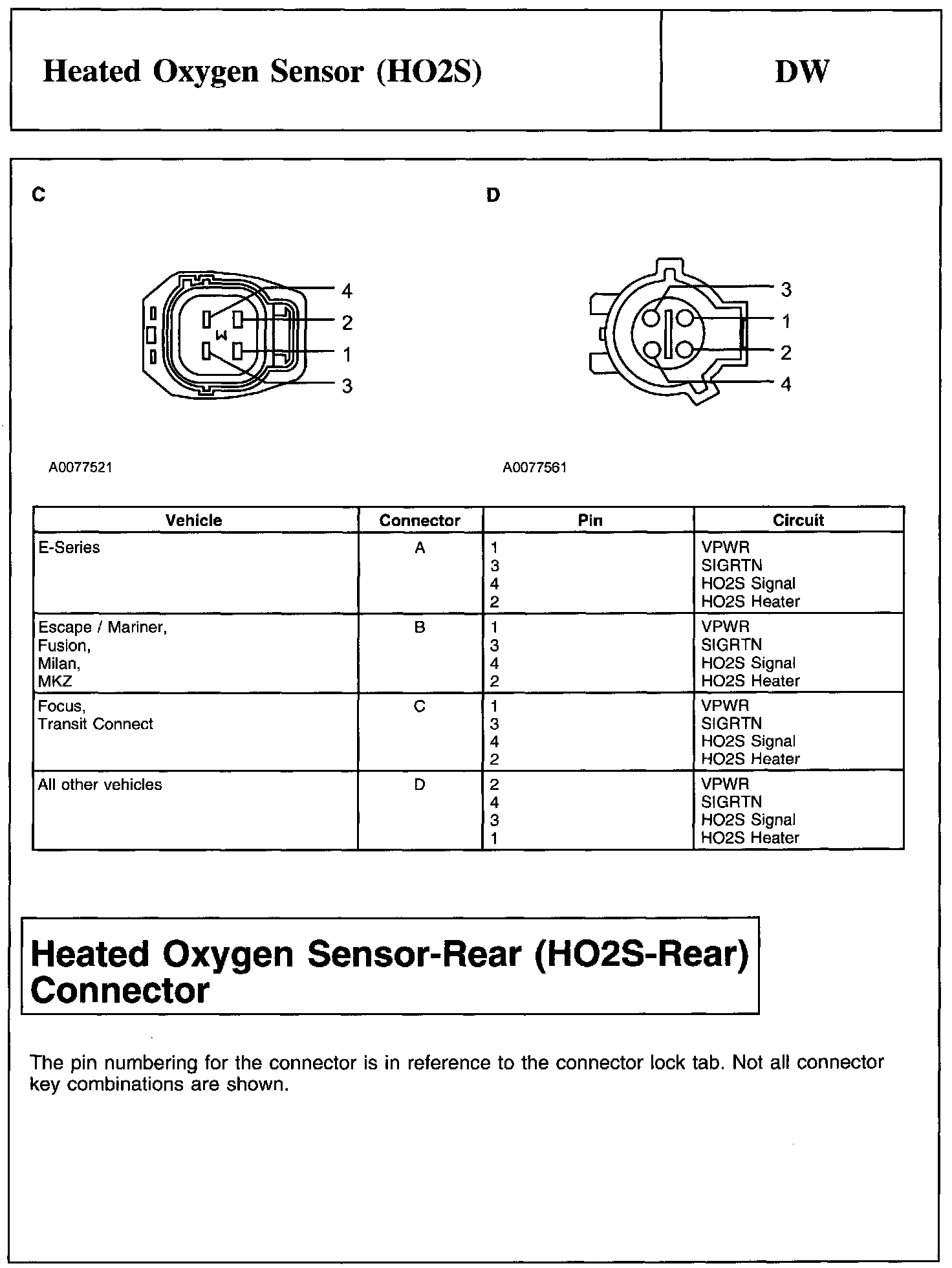

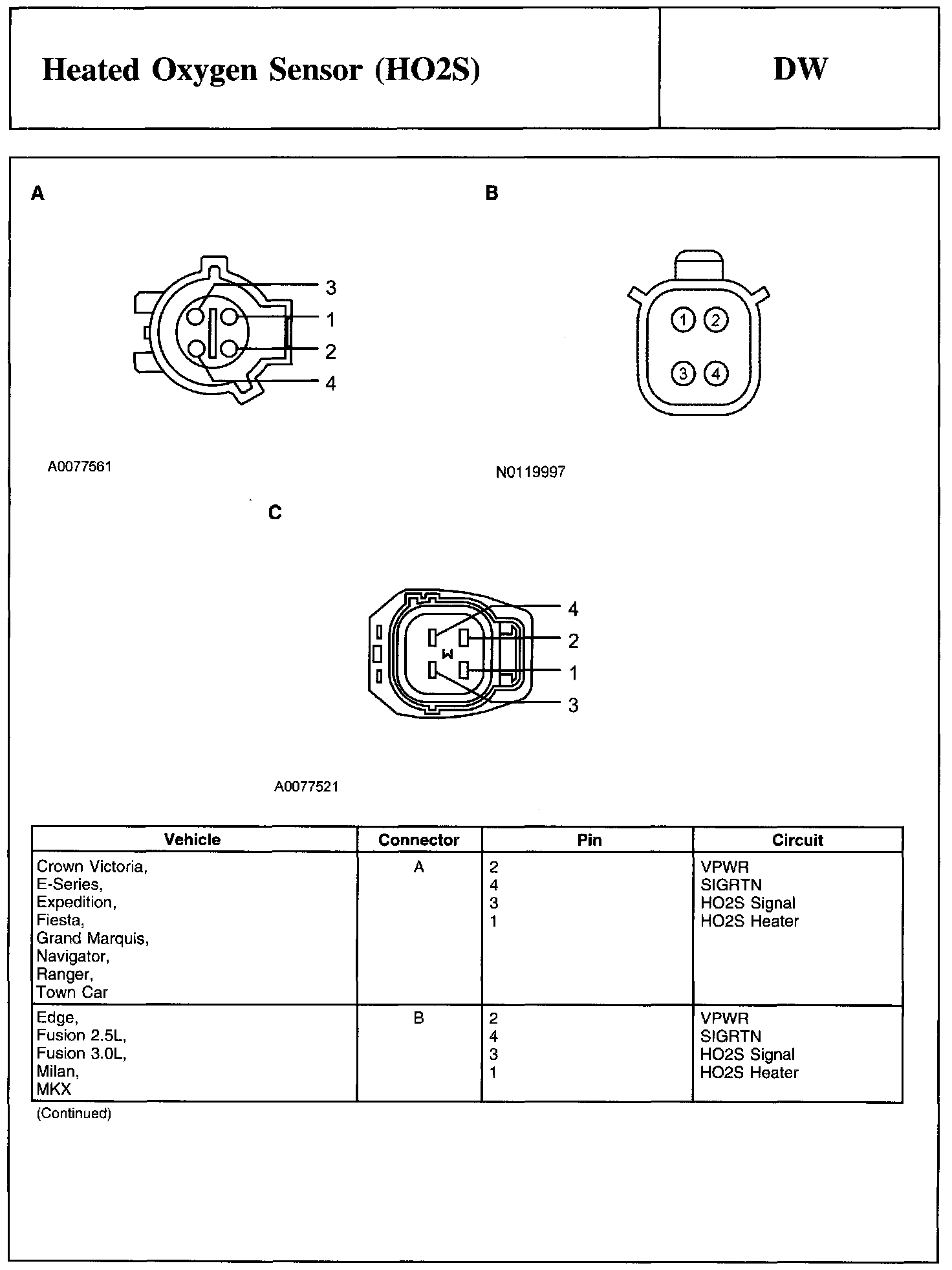

Heated Oxygen Sensor-Front (HO2S-Front) Connector And Heated Oxygen Sensor-Rear (HO2S-Rear) Connector:
Heated Oxygen Sensor-Rear (HO2S-Rear) Connector:
Heated Oxygen Sensor-Rear (HO2S-Rear) Connector And Powertrain Control Module (PCM) Connector:

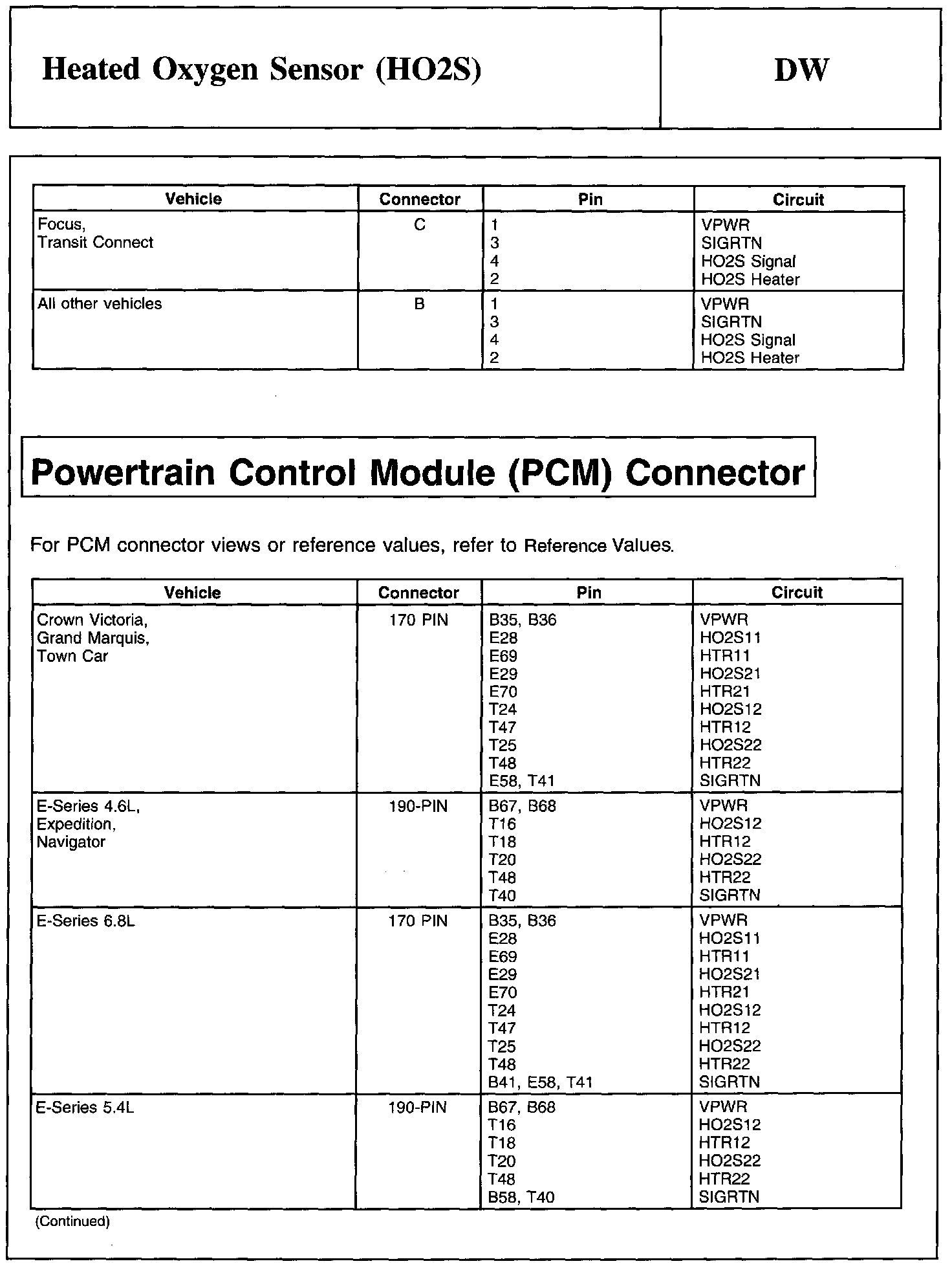

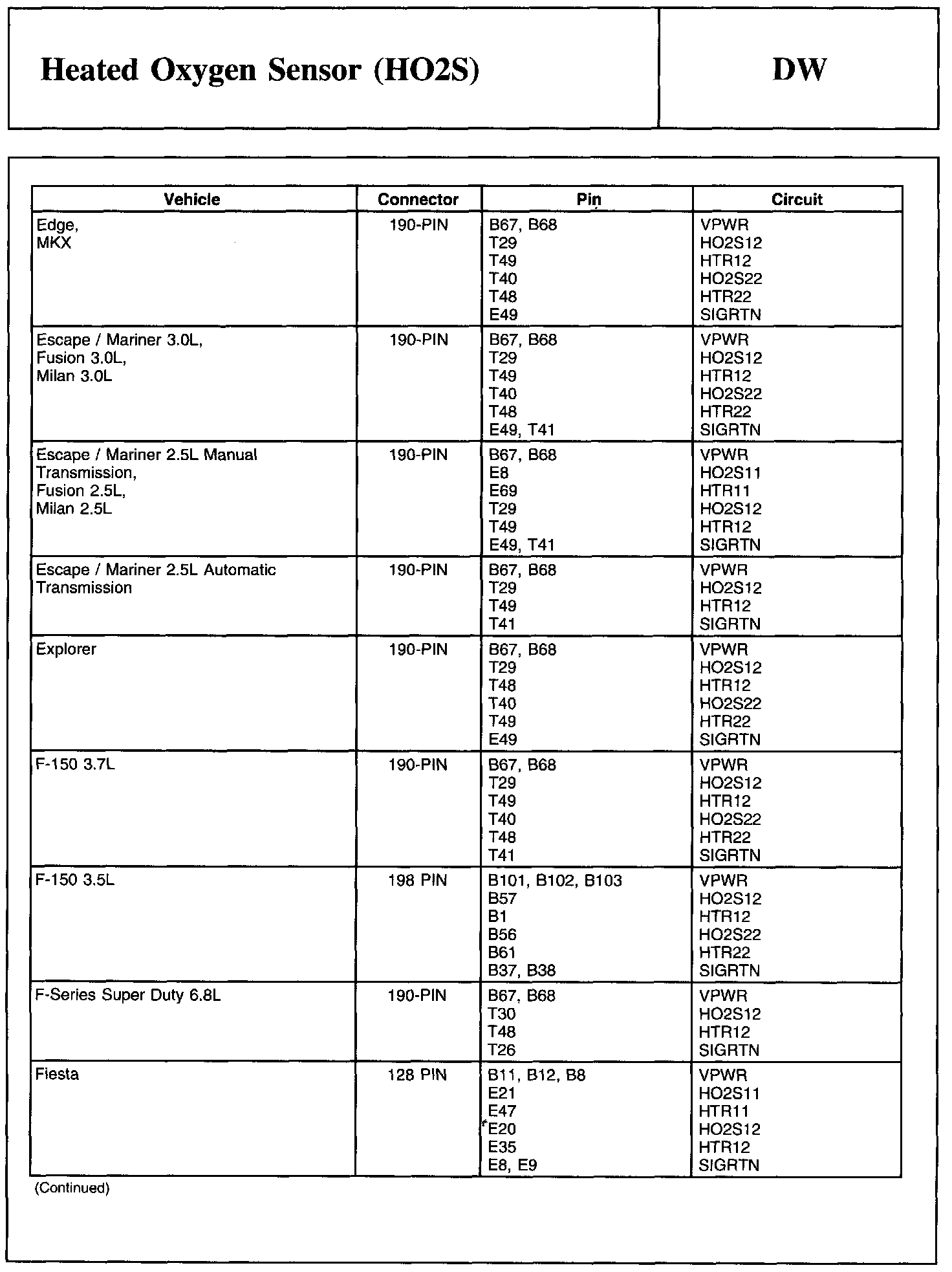

Powertrain Control Module (PCM) Connector:

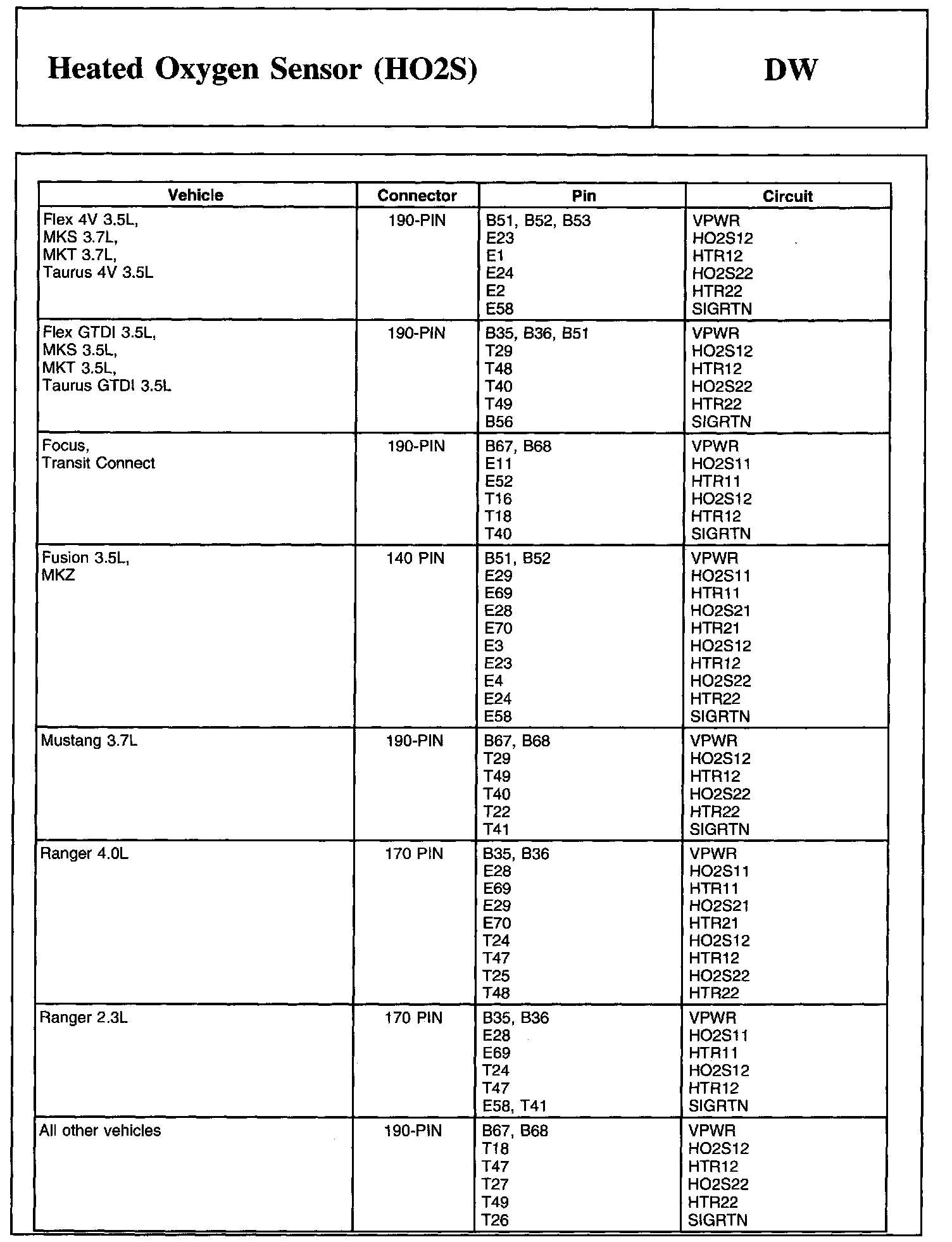

Powertrain Control Module (PCM) Connector:

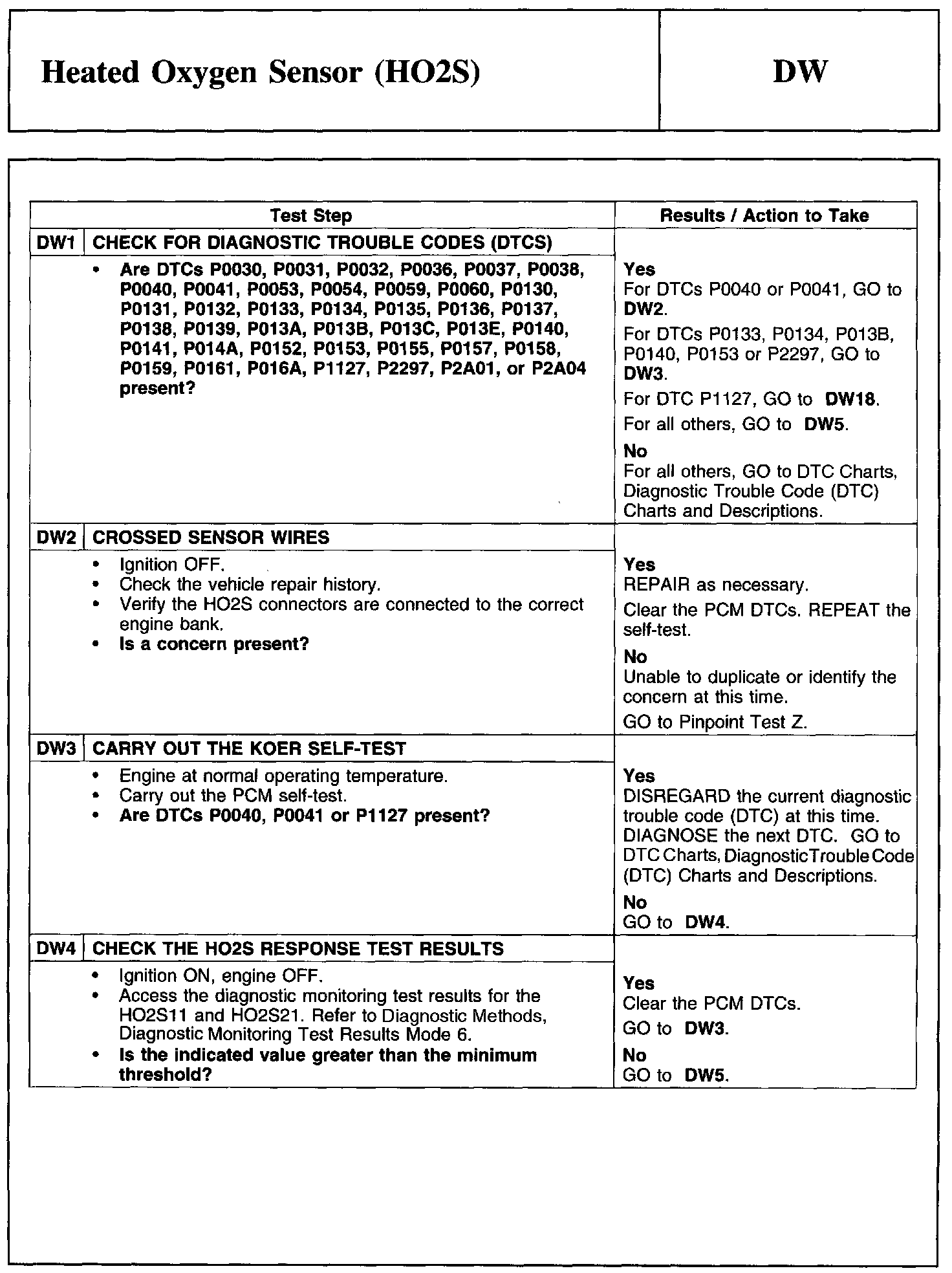

DW1-DW4:

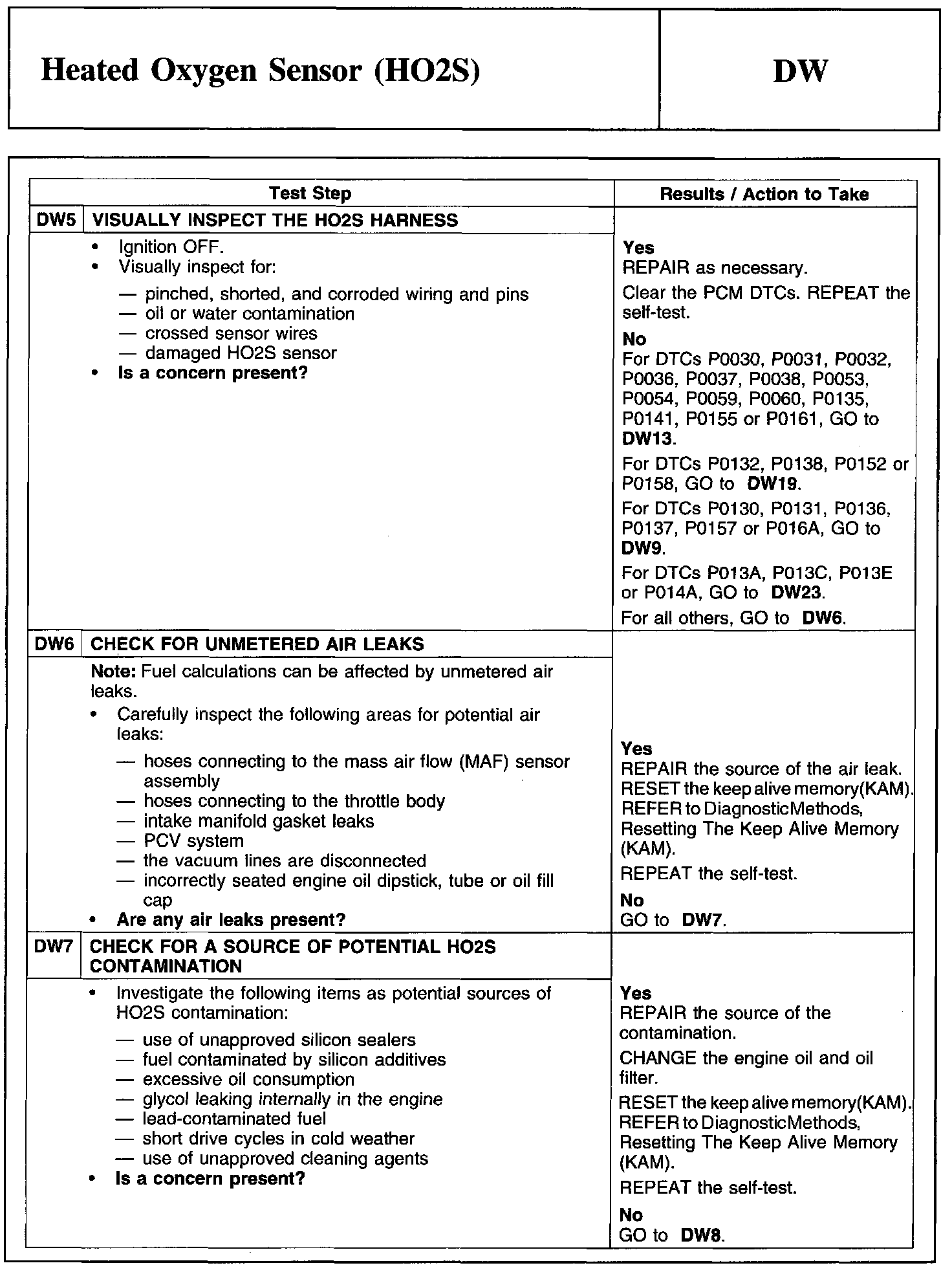

DW5-DW7:

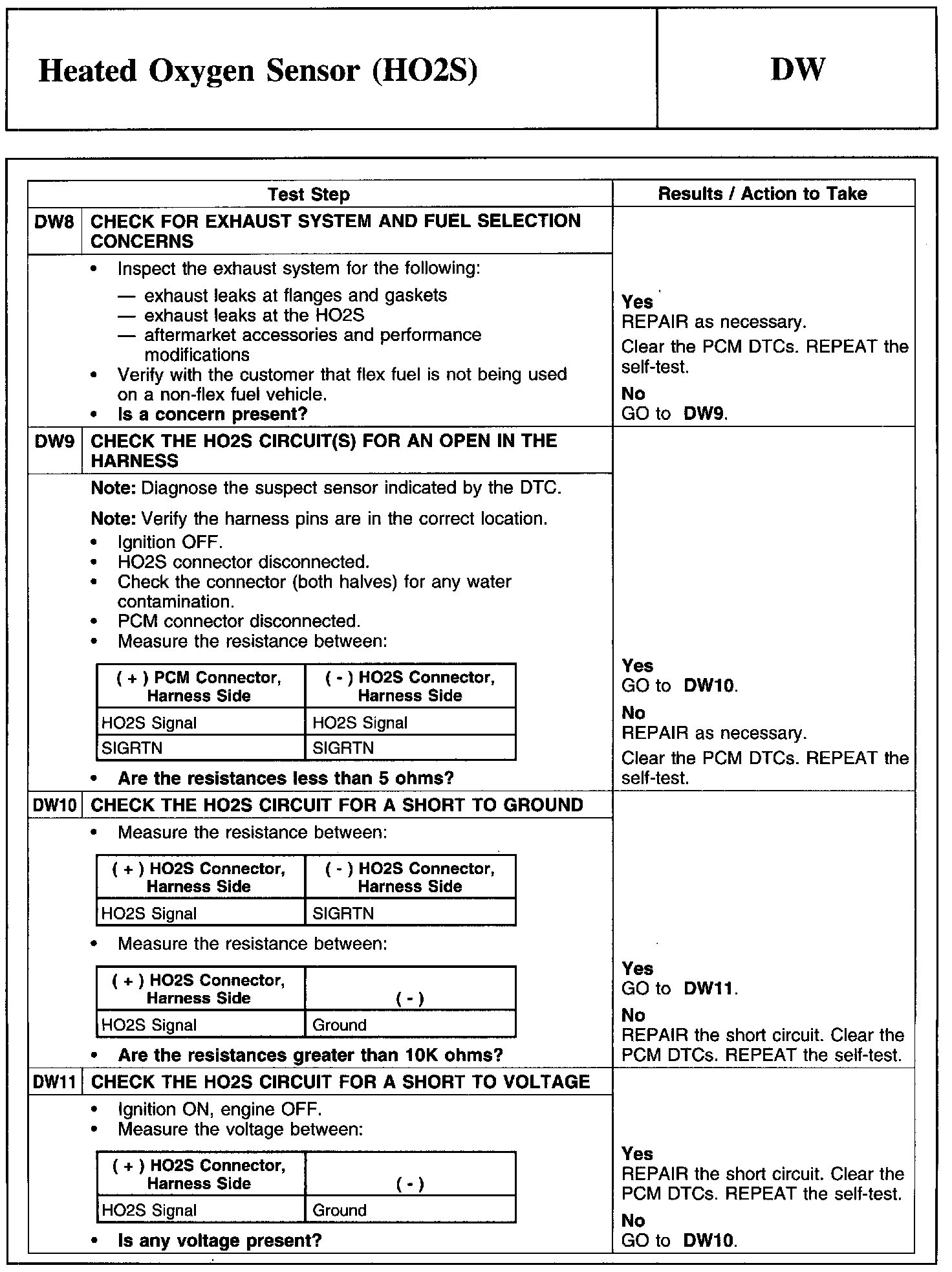

DW8-DW11:

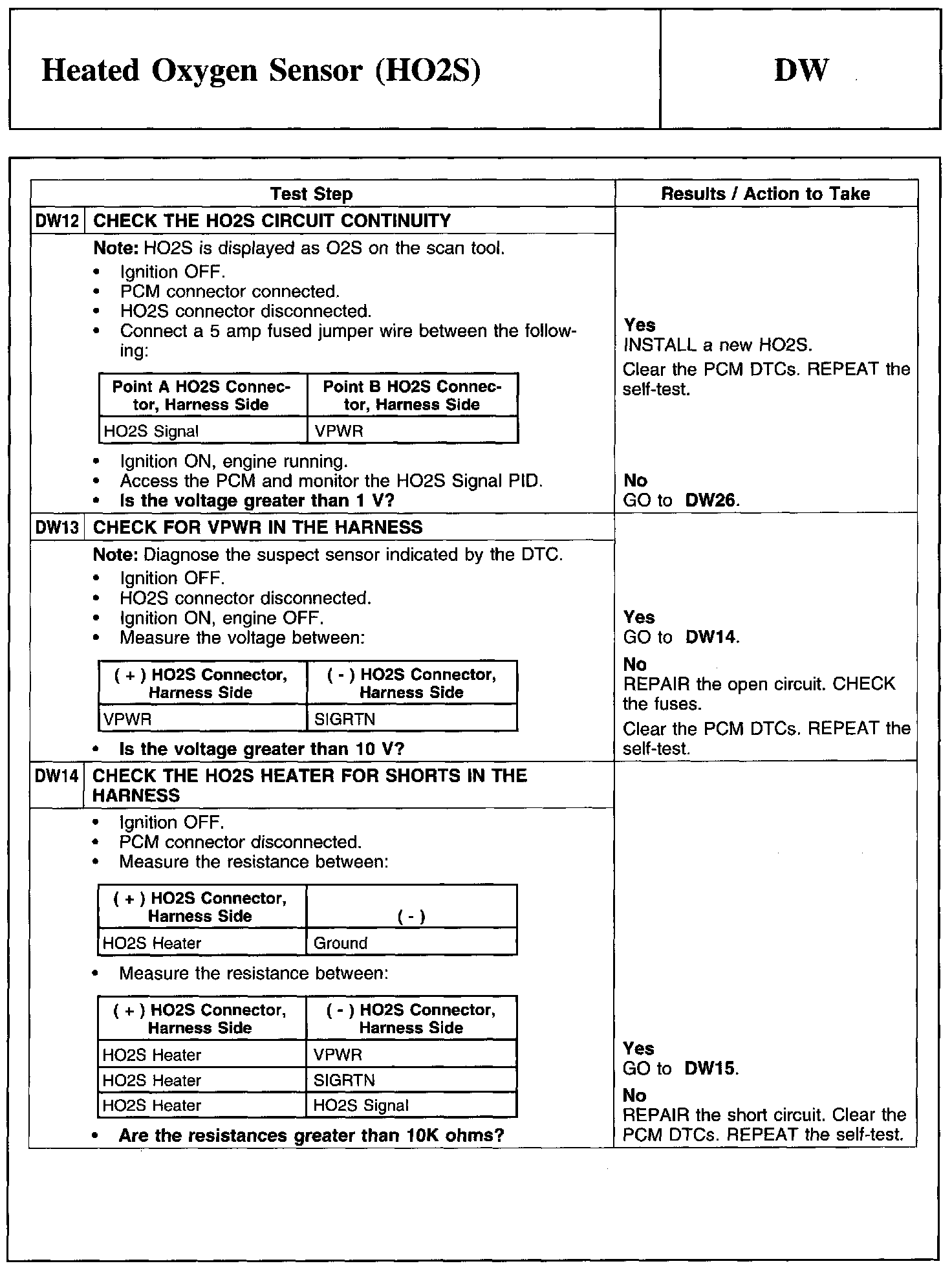

DW12-DW14:
