Oil Separator: Service and Repair

Crankcase Vent Oil Separator

Removal and Installation









1. Remove the intake manifold. For additional information, refer to Engine - 2.0L Service and Repair.

2. Remove the bypass hose from the retainer clip and position aside.

3. NOTE: Inspect the crankcase vent oil separator gasket for damage and replace if necessary.

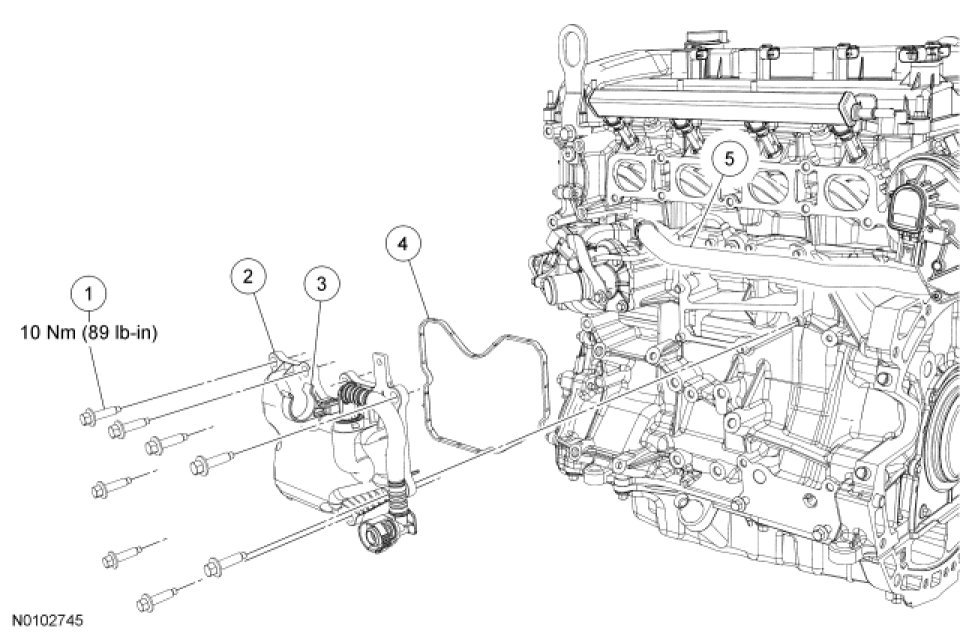

Remove the 8 bolts, crankcase vent oil separator and the gasket.

- To install, tighten to 10 Nm (89 lb-in).

4. NOTE: Clean and inspect the gasket mating surfaces.

NOTE: Inspect the crankcase vent oil separator gasket for damage. Replace as necessary.

To install, reverse the removal procedure.
