Valve Spring Installed Length

NOTE: Refer to the appropriate ENGINE MECHANICAL - 2.0L article for the specification.
  1. Measure the installed length of each valve spring.

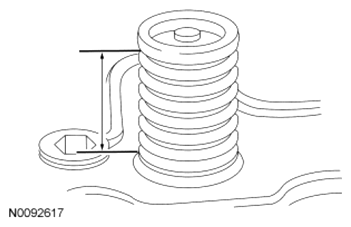

    Fig 1: Identifying Valve Spring Installed Length
    G07495418Courtesy of FORD MOTOR CO.
