Transfer Shaft: Disassembly

  1. Using the Bearing Puller, Front Hub Tool and Step Plate, remove the RH transfer shaft gear bearing.

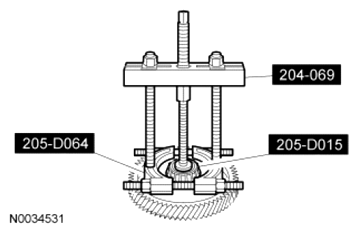

    Fig 1: Removing RH Transfer Shaft Gear Bearing
    G07496369Courtesy of FORD MOTOR CO.
  2. Using the Step Plate and a press, remove the LH transfer shaft gear bearing while separating the gears.

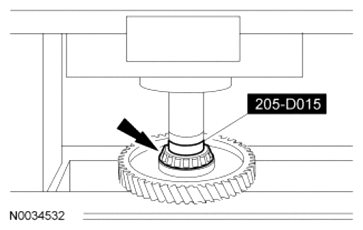

    Fig 2: Removing LH Transfer Shaft Gear Bearing
    G07496370Courtesy of FORD MOTOR CO.
