Main Control Valve Body: Disassembly

  1. Remove the solenoid body bolts and the solenoid body.

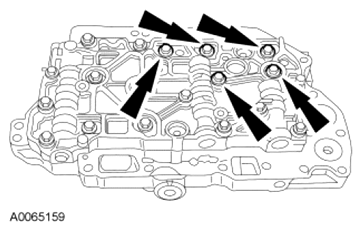

    Fig 1: Locating Solenoid Body Bolts
    G07496447Courtesy of FORD MOTOR CO.
  2. Remove and discard the solenoid body gaskets.

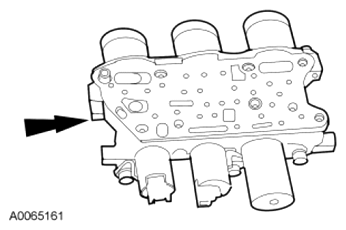

    Fig 2: Identifying Solenoid Body Gaskets
    G07496448Courtesy of FORD MOTOR CO.
  3. Remove and discard the seals.

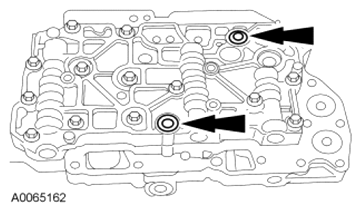

    Fig 3: Locating Seals
    G07496449Courtesy of FORD MOTOR CO.
  4. Disassemble the main control valve body.

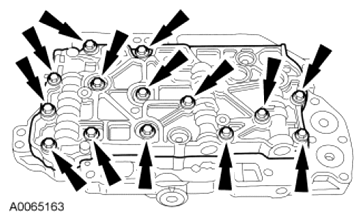

    Fig 4: Locating Main Control Valve Body Bolts
    G07496450Courtesy of FORD MOTOR CO.
