Transaxle Case: Disassembly

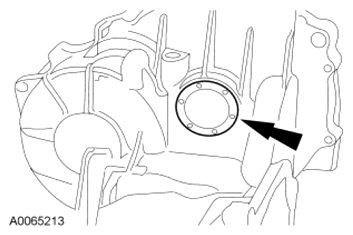

Remove the halfshaft seals (LH shown in illustration).

Fig 1: Locating Halfshaft Seals
Courtesy of FORD MOTOR CO.

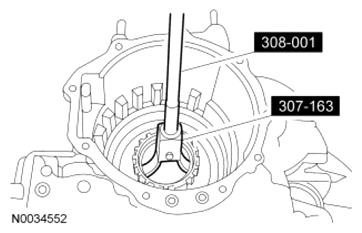

Using the Pilot Bearing Remover and Stator Case Bearing Remover, remove the differential case bearing cups (LH shown in illustration).

Fig 2: Removing Differential Case Bearing Cups
Courtesy of FORD MOTOR CO.

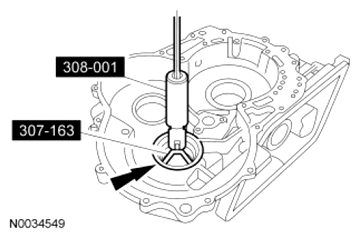

Using the Pilot Bearing Remover and Stator Case Bearing Remover, remove the final drive input gear bearing cup.

Fig 3: Removing Final Drive Input Gear Bearing Cup
Courtesy of FORD MOTOR CO.

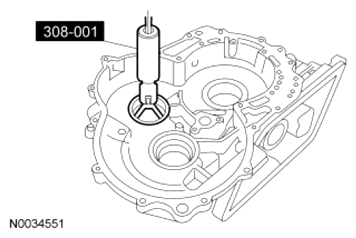

Using the Pilot Bearing Remover, remove the transfer shaft gear bearing cups (LH shown in illustration).

Fig 4: Removing Transfer Shaft Gear Bearing Cups
Courtesy of FORD MOTOR CO.

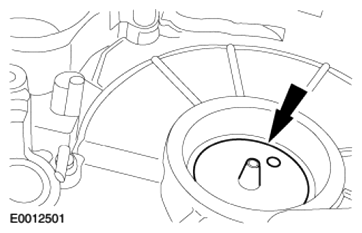

NOTE: Note the location of the bleed hole in the funnel in relation to the bottom of the case.

NOTE: Inspect the bleed hole for foreign material.

NOTE: If flatness of funnel is compromised during bearing removal, install a new funnel.

Fig 5: Locating Funnel

Courtesy of FORD MOTOR CO.

Remove the funnel.
Rotate the transaxle 180 degrees.

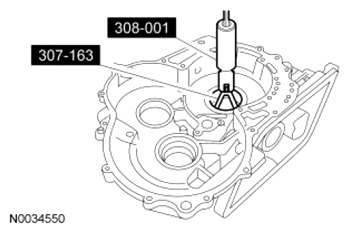

Using the Pilot Bearing Remover and Stator Case Bearing Remover, remove the final drive input gear bearing cup.

Fig 6: Removing Final Drive Input Gear Bearing Cup
Courtesy of FORD MOTOR CO.
