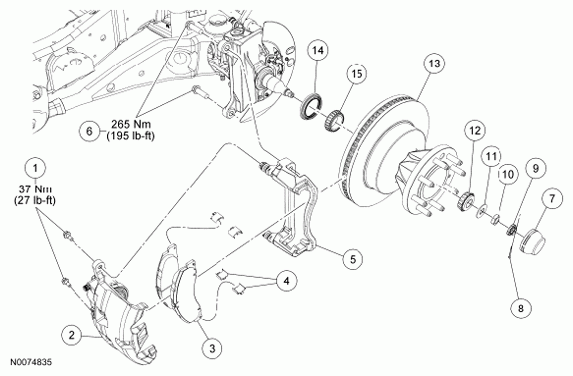

Front Disc Brake (View 1 of 2)
WARNING: This page is about a different variant/trim than selected.
NOTE:
Dual Rear Wheels (DRW) shown in illustration, Single Rear Wheel (SRW) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C534 | Brake caliper guide pin bolts (2 required) |
| 2 | 2B120 | Brake caliper |
| 3 | 2018 | Brake pads |
| 4 | 2B164 | Brake pad anti-rattle clips (4 required) |
| 5 | 2B292 | Brake caliper anchor plate |
| 6 | N811625 | Brake caliper anchor plate bolts (2 required) |
| 7 | 1131 | Hub grease cap |
| 8 | N642569 | Cotter pin |
| 9 | 390622 | Spindle nut retainer |
| 10 | 374504 | Spindle nut |
| 11 | 1195 | Outer wheel bearing retainer washer |
| 12 | 1216 | Outer wheel bearing |
| 13 | 1102 | Brake disc and hub |
| 14 | 1201 | Inner wheel bearing |
| 15 | 1190 | Grease seal |
