Removal And Installation: Clockspring: Notes

WARNING: This page is about a different variant/trim than selected.

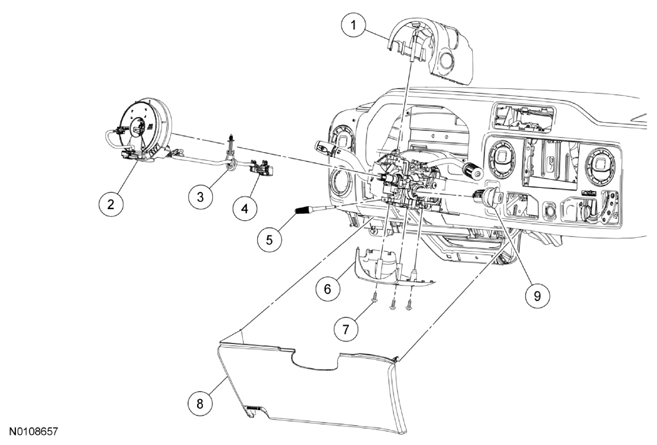

Fig 1: Exploded View Of Clockspring
G07950384Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3530 Upper steering column shroud
2 14A664 Clockspring
3 - Clockspring wiring retaining clip (part of 14A664) (2 required)
4 - Electrical connector (part of 14A664)
5 3F609 Tilt lever/handle
6 3530 Lower steering column shroud
7 - Lower steering column shroud screw (3 required)
8 04459 Steering column opening cover
9 11582 Ignition lock cylinder
