Suction Accumulator: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |

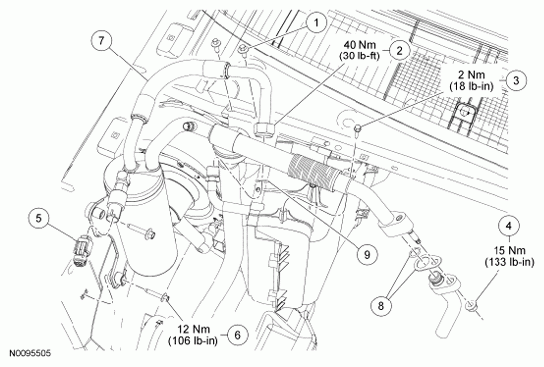

| Item | Part Number | Description |
|---|---|---|
| 1 | N800369 | Washer reservoir filler tube bolt |
| 2 | - | Evaporator outlet fitting (part of 19C836) |
| 3 | W701696 | Suction accumulator outlet line bracket screw |
| 4 | W520413 | Suction accumulator outlet fitting nut |
| 5 | 12A581 | A/C cycling switch electrical connector |
| 6 | W703845 | Suction accumulator bolt (2 required) |
| 7 | 19C836 | Suction accumulator |
| 8 | 19B596 | O-ring seal and gasket seal kit |
| 9 | 19E889 | O-ring seal |
