Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY  .
  2. Remove the temperature control switch knob.
  3. Remove the temperature control switch.
    1. Remove the screw.
    2. Remove the temperature control switch.

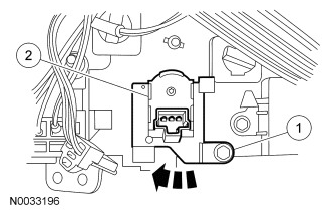

      Fig 1: Identifying Temperature Control Switch
      G06600153Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
