Flexplate

Flexplate





Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the transaxle.

3. Remove the 8 bolts and the flexplate.

Installation

1. NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.
Install the flexplate and the 8 bolts.

- Tighten in the sequence shown to 80 Nm (59 lb-ft).






2. Install the transaxle.

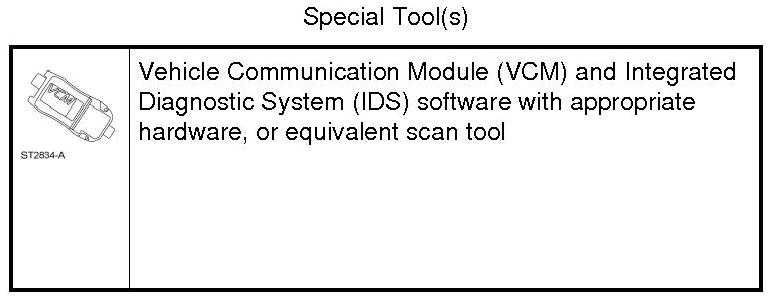

3. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
