Home >> Ford >> 2012 >> Edge AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> C505 Door Lock Switch, Driver Side
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

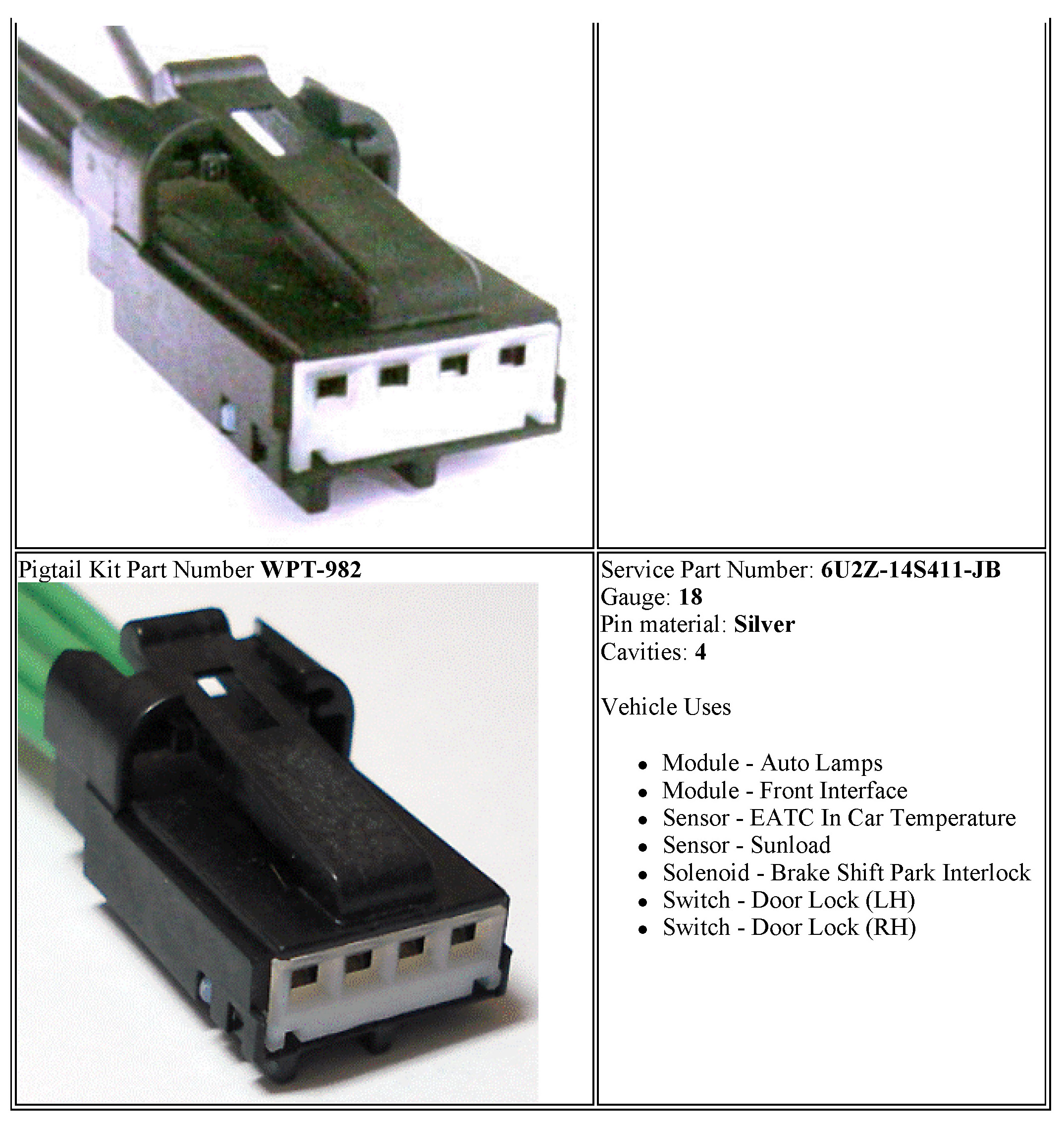

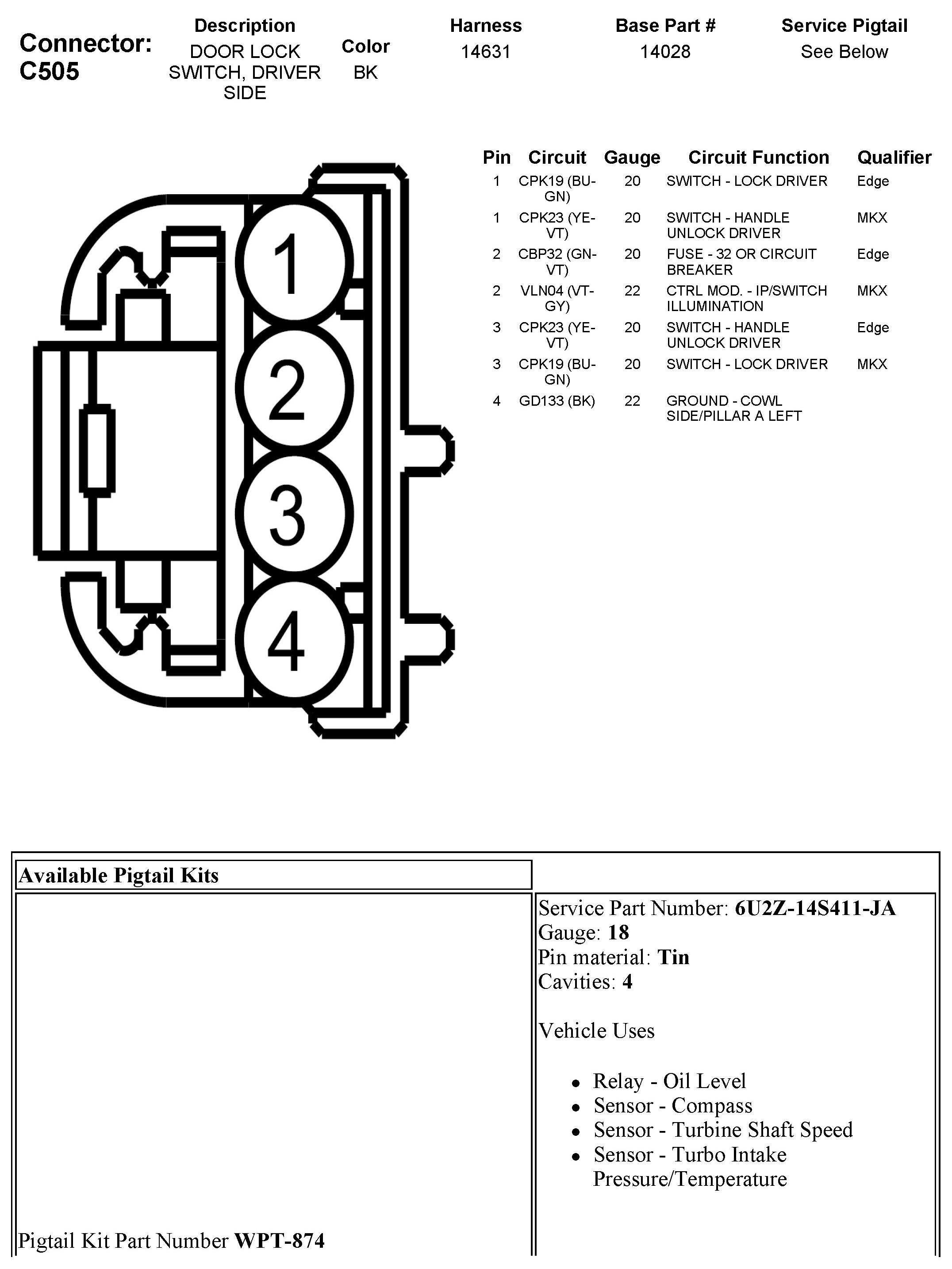

C505 Door Lock Switch, Driver Side
