Engine Block Heater: Service and Repair

Block Heater - 2.0L GTDI

Removal and Installation

1. Drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding Service and Repair.

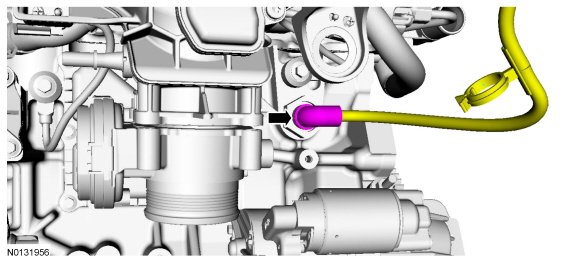

2. NOTICE: To install, route the block heater power cable away from hot or rotating components, or the cable can be damaged.

Disconnect the block heater electrical connector.

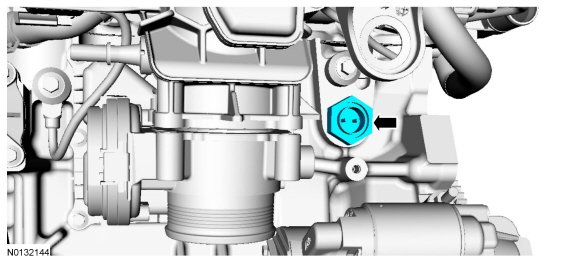

3. Remove the block heater.
- To install, tighten to 40 Nm (30 lb-ft).






4. To install, reverse the removal procedure.

5. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding Service and Repair.
