Neutral Position: Notes

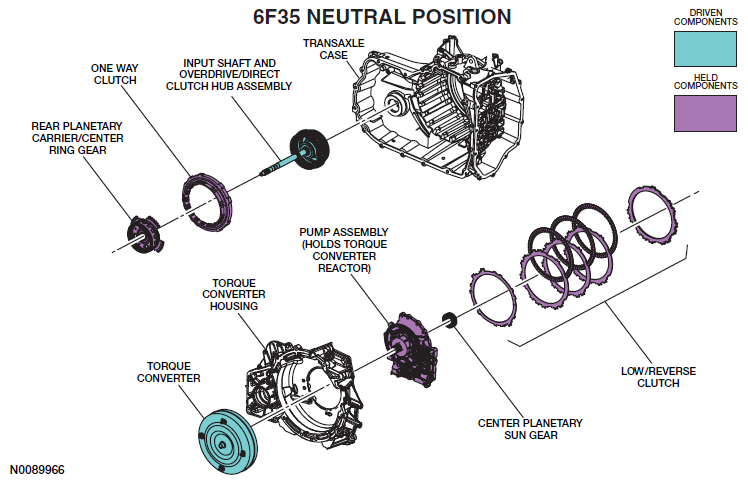

Fig 1: Identifying Neutral Position Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
