Transaxle Case: Assembly

Install the differential ring gear in the torque converter housing.

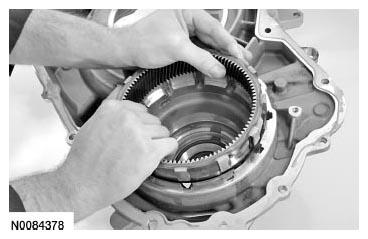

Fig 1: Removing/Installing Differential Ring Gear
Courtesy of FORD MOTOR CO.

NOTE: Be sure the flat side of the beveled snap ring is facing down or the ring can come loose, causing damage to the transaxle.

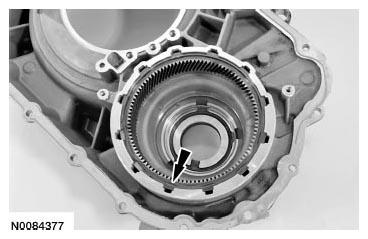

Fig 2: Locating Beveled Differential Ring Gear Snap Ring

Courtesy of FORD MOTOR CO.

Install the beveled differential ring gear snap ring with the flat side facing down.
Seat the snap ring.

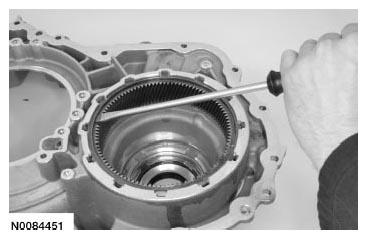

Fig 3: Seating Snap Ring
Courtesy of FORD MOTOR CO.
Assemble the Handle 205-153 and the Bushing Installer 307-664 and install a new bushing on the Bushing Installer.

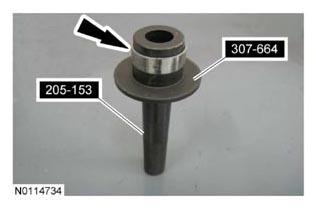

Fig 4: Identifying Handle 205-153 And Bushing Installer 307-664
Courtesy of FORD MOTOR CO.
Using the Handle 205-153 and the Bushing Installer 307-664, install the new bushing in the transaxle case.

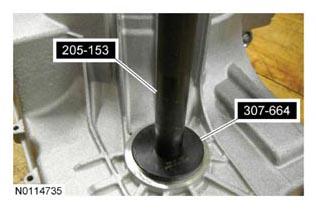

Fig 5: Installing Bushing In Transaxle Case Using Handle 205-153 And Bushing Installer 307-664
