Transaxle Case: Disassembly

NOTE: Press the bushing out of the transaxle case from the outside to the inside so that the transaxle case rests on a flat surface.

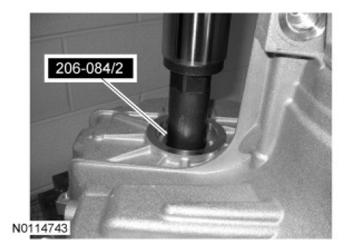

Fig 1: Removing LH Transaxle Case Bushing From Transaxle Case

Courtesy of FORD MOTOR CO.

Using the Wheel Speed Sensor Ring Installer 206-084/2 and a press, remove and discard the LH transaxle case bushing from the transaxle case.
Remove the differential ring gear snap ring.

Fig 2: Locating Beveled Differential Ring Gear Snap Ring
Courtesy of FORD MOTOR CO.
Remove the differential ring gear.

Fig 3: Removing/Installing Differential Ring Gear
Courtesy of FORD MOTOR CO.
