Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to the replacement of the module, it is necessary to upload the module configuration information to the appropriate scan tool. This information must be downloaded into the new module after installation. For additional information, refer to MODULE CONFIGURATION . For vehicles without Intelligent Access (IA), verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

Connect a battery charger. Refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES article .

NOTE: This step is necessary only if the BCM is being replaced.

Upload the module configuration information from the BCM into the scan tool. For additional information, refer to MODULE CONFIGURATION .
Remove the steering column opening trim panel. Refer to INSTRUMENT PANEL AND CONSOLE .
Disconnect the 7 BCM electrical connectors and remove the 2 harness pushpins from the BCM.

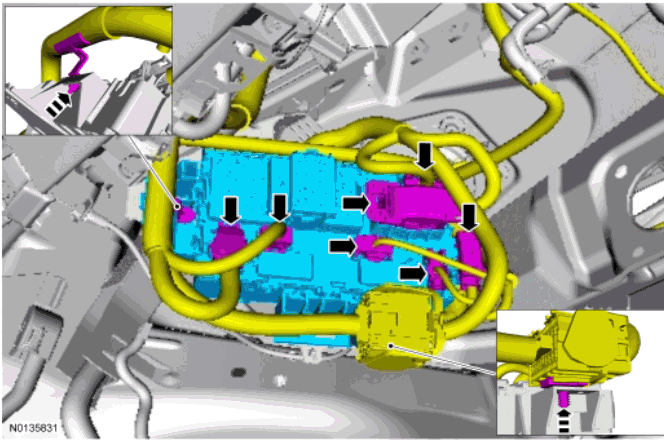

Fig 1: Locating BCM Electrical Connectors And Harness Pushpins
Courtesy of FORD MOTOR CO.
Lift the BCM release tab (away from the BCM bracket), slide the BCM to the left and remove.

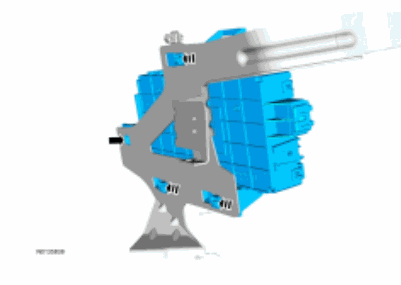

Fig 2: Identifying BCM Release Tab
Courtesy of FORD MOTOR CO.
