All Others

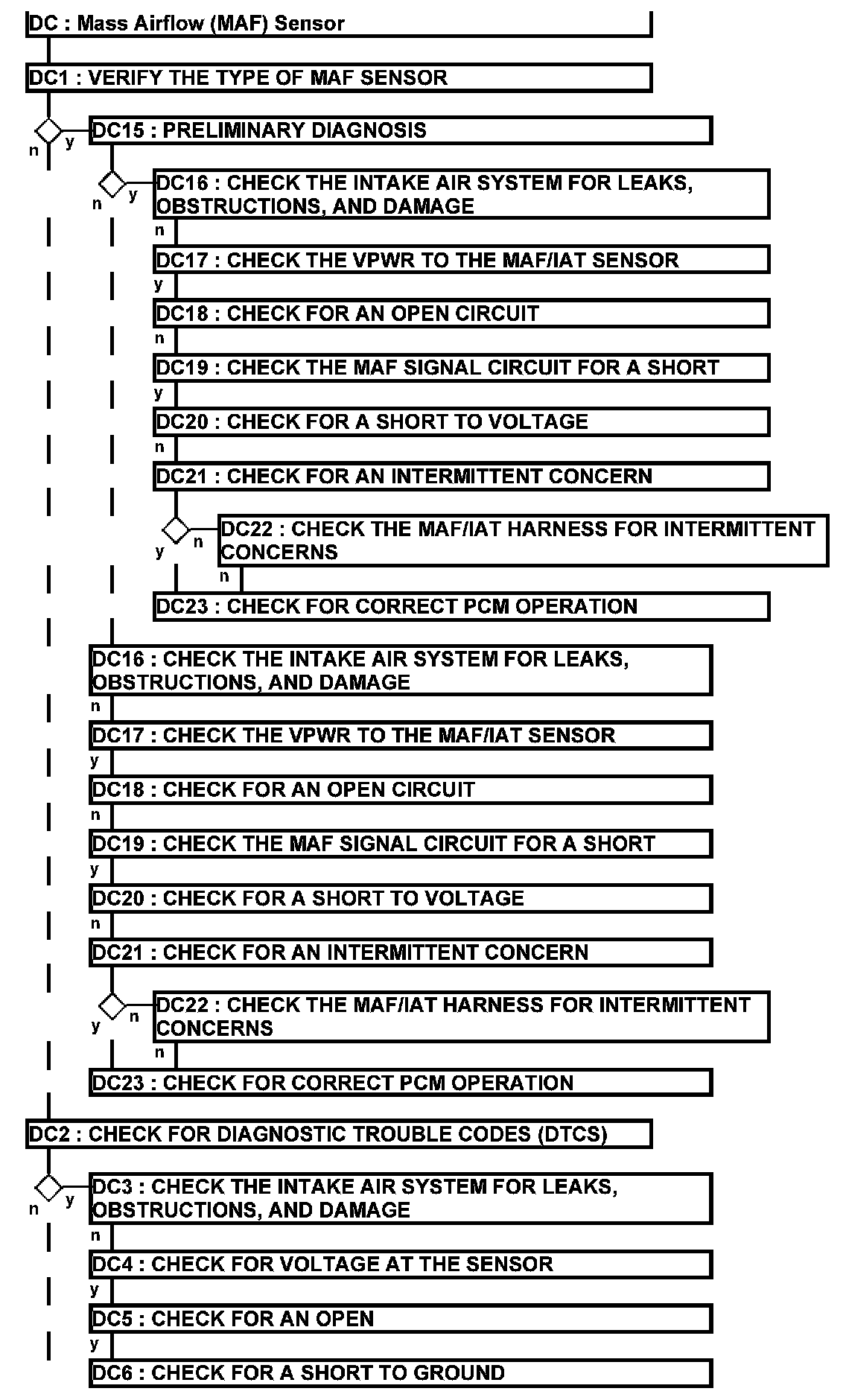

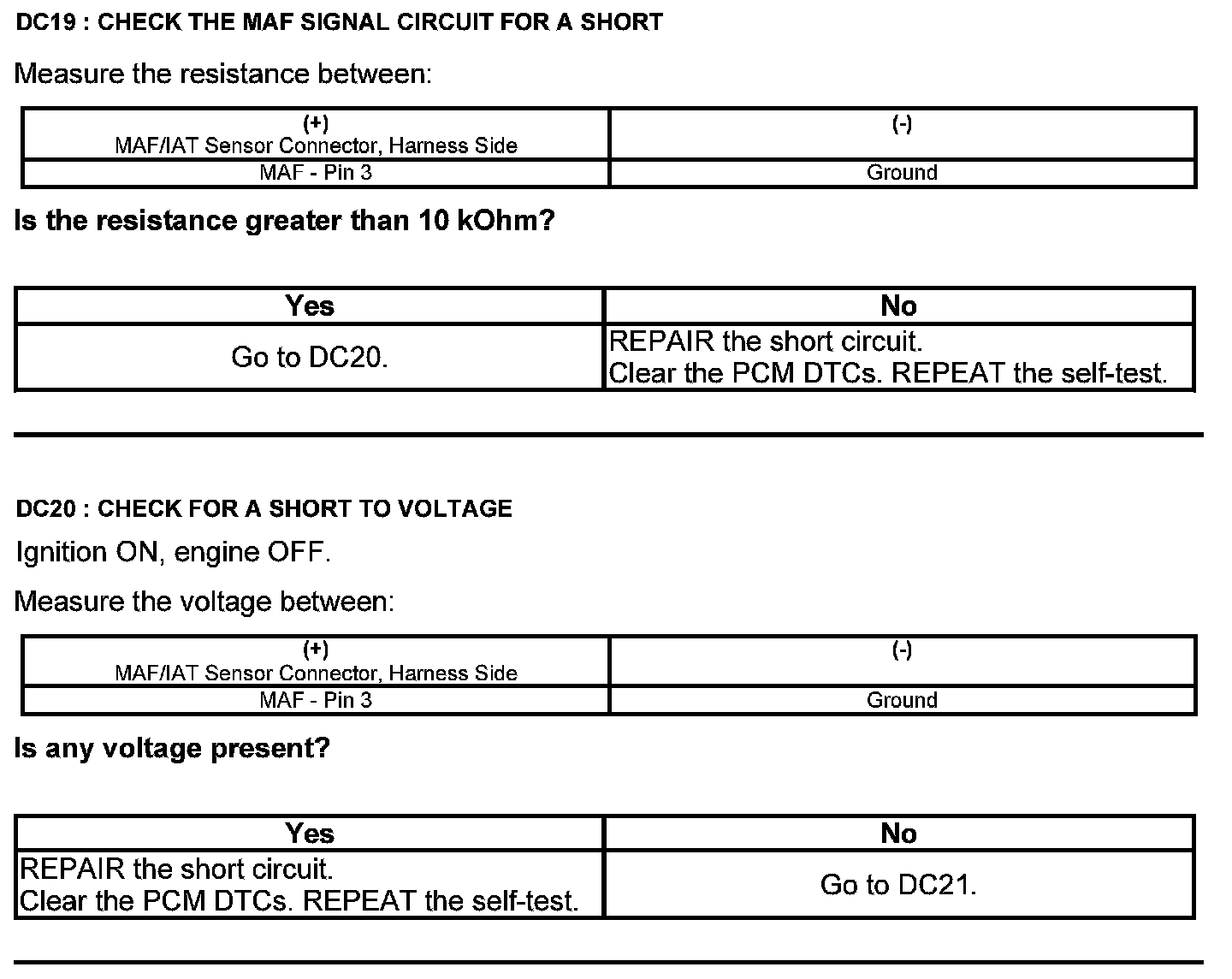

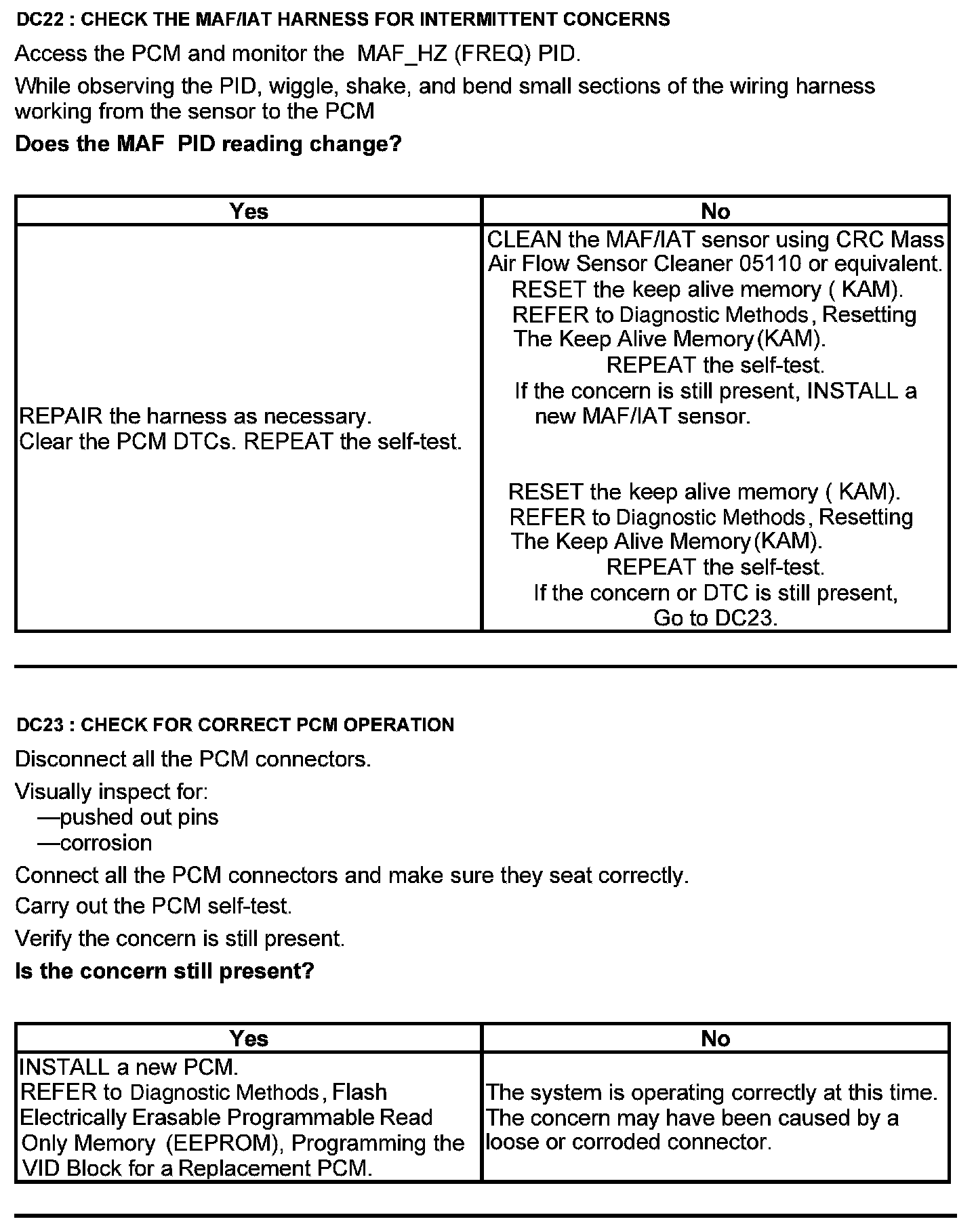

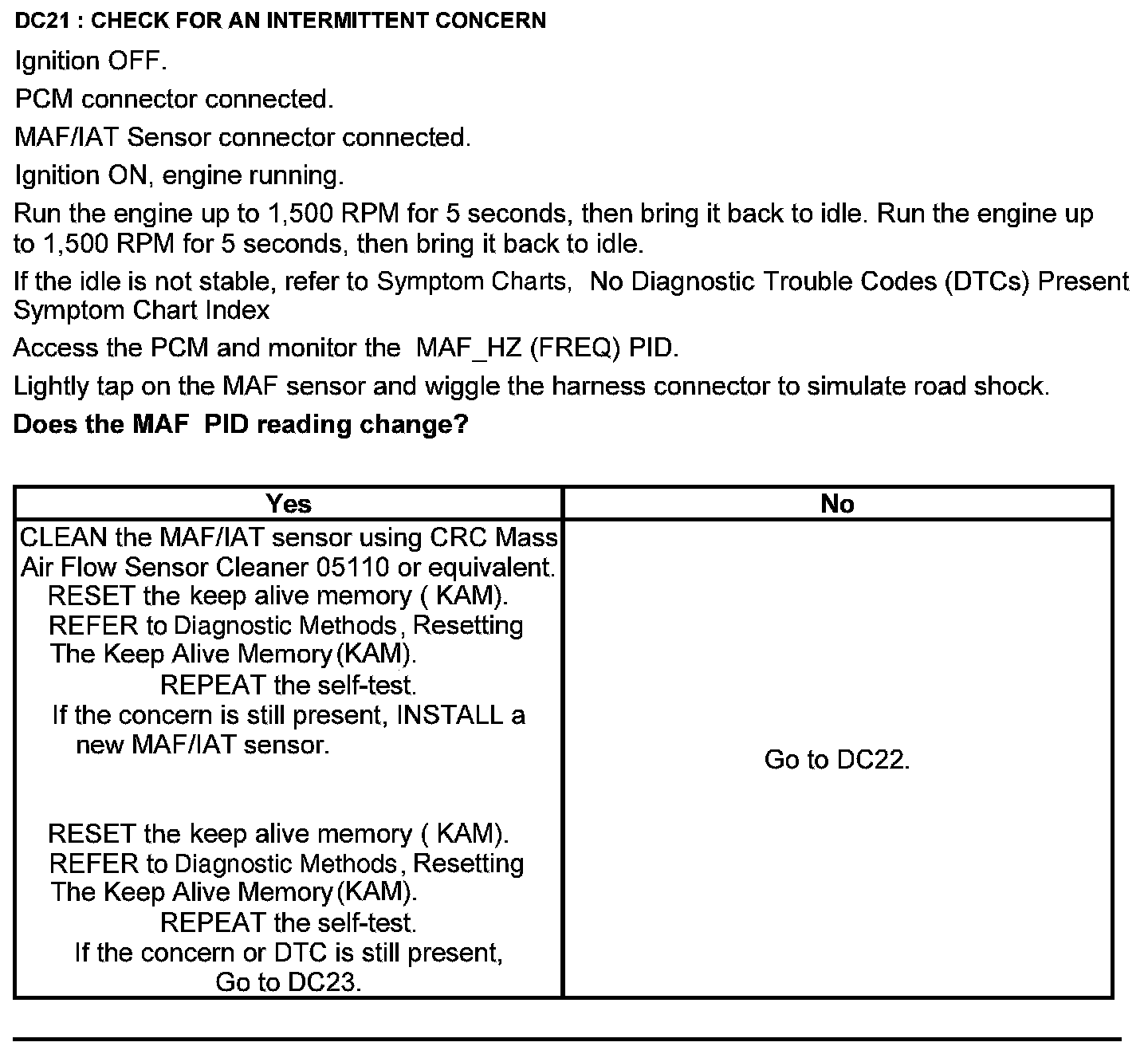

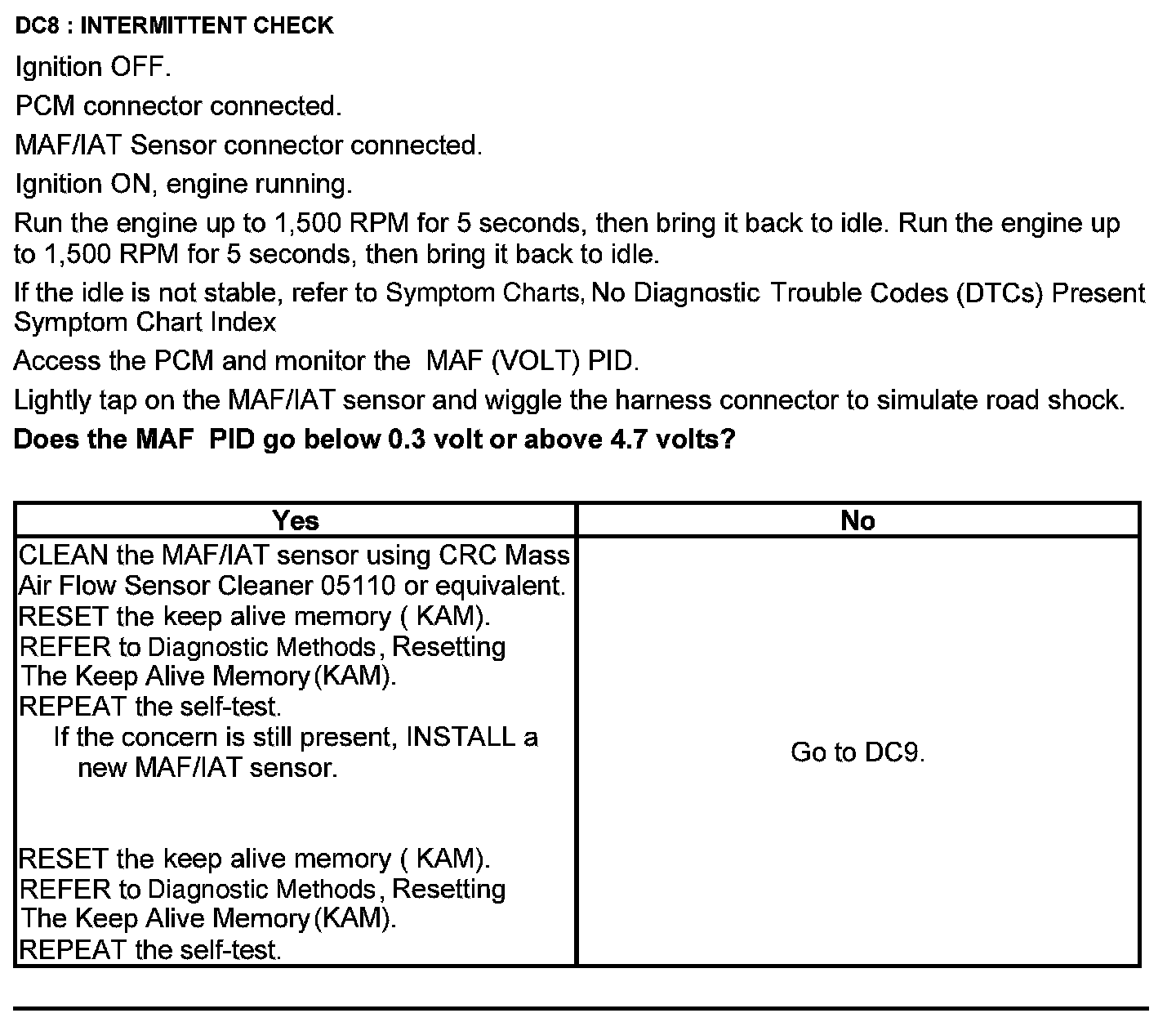

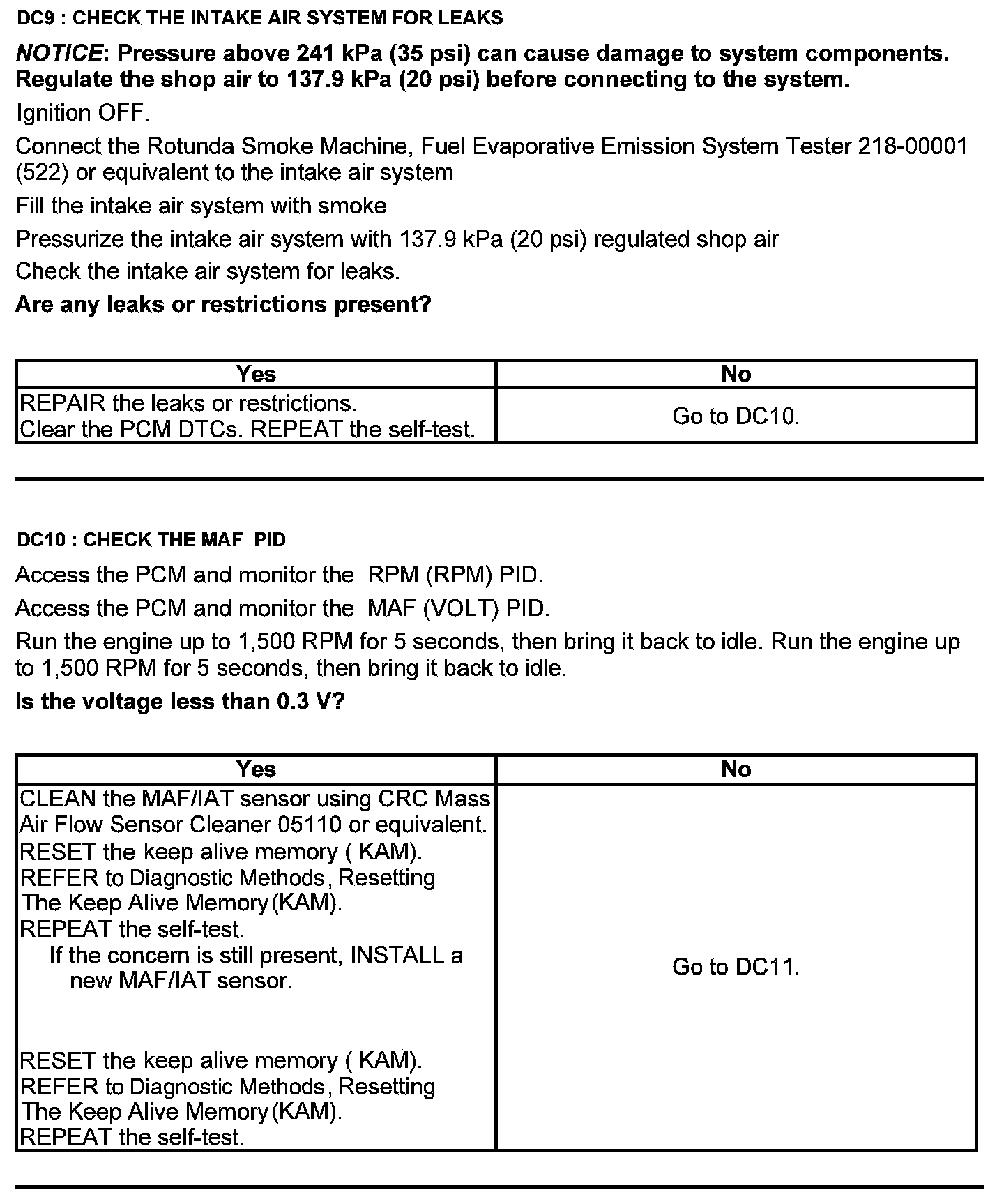

Mass Airflow (MAF) Sensor - All Others

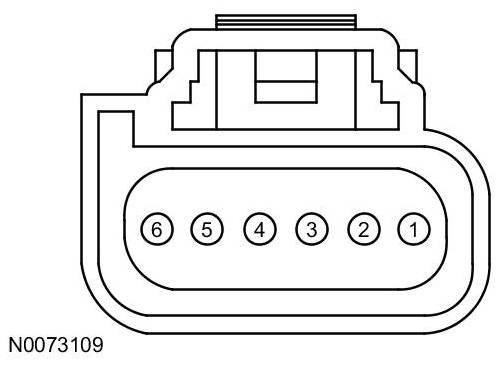

Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector





Harness Side
