All Others



Intake Air Temperature 2 (IAT2) Sensor - All Others

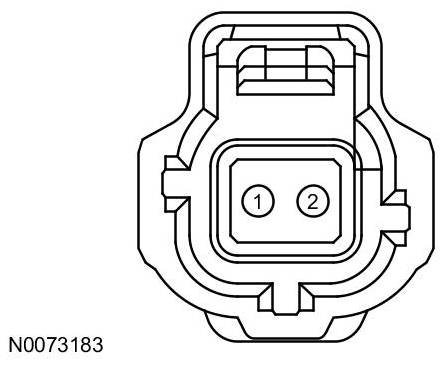

Intake Air Temperature 2 (IAT2) Sensor Connector





Harness Side
