Transmission Speed Sensor: Service and Repair

Vehicle Speed Sensor (VSS)









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

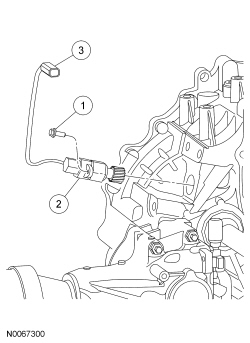

2. NOTE: The electrical connector and the Vehicle Speed Sensor (VSS) are accessed from the top of the transaxle.
Remove the VSS (Vehicle Speed Sensor) bolt.


3. Disconnect the electrical connector and remove the VSS (Vehicle Speed Sensor).

4. To install, reverse the removal procedure.
