Disassembly And Assembly: Halfshaft: Notes
SPECIAL TOOLS CHART
| Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Constant Velocity Joint Grease (High Temperature) XG-5 |
WSS-M1C258-A1 |
NOTE:

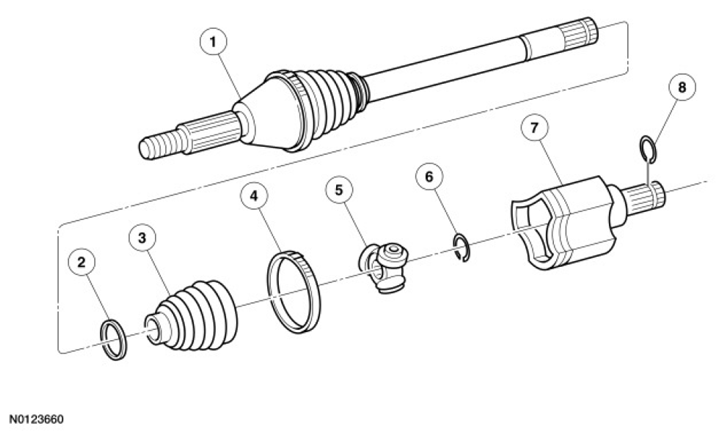

LH halfshaft shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3B436 | Outboard fixed ball CV joint |
| 2 | 3B478 | Small CV boot clamp (part of 3A331 Kit - CV Boot Repair also part of 3B414 Kit - CV Joint Repair) |
| 3 | 3A331 | Inboard CV boot (part of 3B414 Kit - CV Joint Repair) |
| 4 | 3B478 | Large CV boot clamp (part of 3A331 Kit - CV Boot Repair also part of 3B414 Kit - CV Joint Repair) |
| 5 | 3W007A | Tripod star with roller |
| 6 | 4B422 | Tripod snap-ring (part of 3B414 Kit - CV Joint Repair) |
| 7 | 3B418 | Inboard tripod housing (part of 3B414 Kit - CV Joint Repair) |
| 8 | 4B422 | Halfshaft retaining circlip (part of 3B414 Kit - CV Joint Repair) |
