3.0L (View 1 of 2)

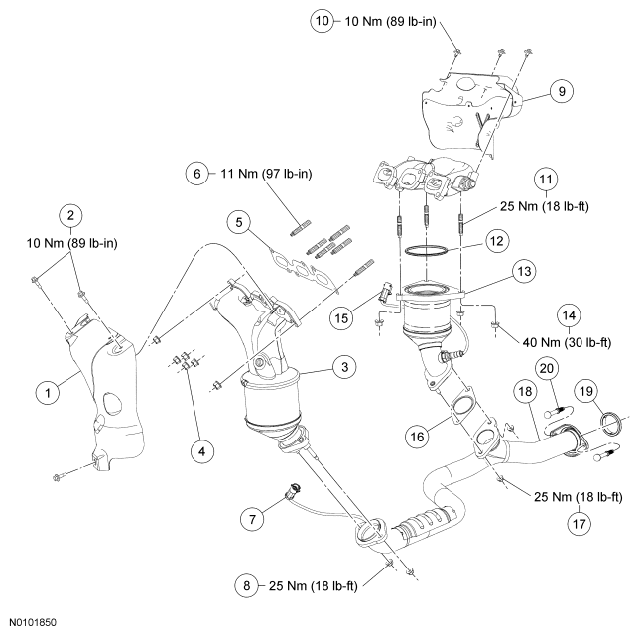

Fig 1: Exploded View Of Exhaust System With Torque Specifications - 3.0L (View 1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5E258	LH catalytic converter heat shield
2	W714133	Heat shield bolts (3 required)
3	5G232	LH catalytic converter
4	W701706	LH catalytic converter manifold nut (6 required)
5	9448	LH catalytic converter manifold gasket
6	701732	LH catalytic converter manifold stud (6 required)
7	14A464	LH Catalyst Monitor Sensor (CMS) electrical connector
8	W520413	LH catalytic converter manifold-to-Y-pipe nut (2 required)
9	5K282	RH catalytic converter heat shield
10	W714133	RH heat shield bolt (3 required)
11	W711133	RH catalytic converter-to-manifold stud (3 required)
12	5F263	RH catalytic converter manifold gasket
13	5E212	RH catalytic converter
14	W520414	RH catalytic converter-to-manifold nut (3 required)
15	14A464	RH CMS electrical connector
16	9451	Catalytic converter manifold-to-Y-pipe gasket
17	W520413	RH catalytic converter manifold-to-Y-pipe nut (2 required)
18	5E256	Exhaust Y-pipe
19	5E241	Gasket
20	W790170	Exhaust Y-pipe studs (2 required)
