Differential - 4WD: Notes

SPECIAL TOOLS CHART

G07941944
2 Jaw Puller
205-D035 or equivalent
G07941945
Dial Indicator Gauge with Holding Fixture
100-D002 or equivalent
G07941946
Puller, Bearing
205-D064 or equivalent

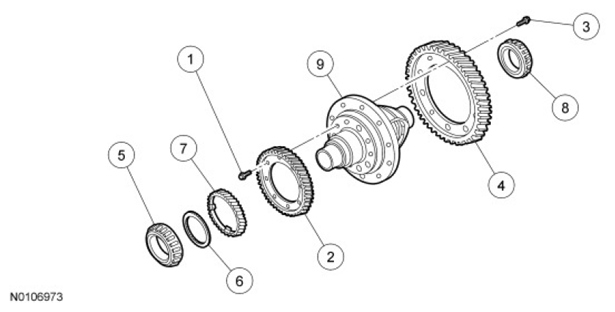

Fig 1: Exploded View Of 4WD Differential
G07442956Courtesy of FORD MOTOR CO.
Item Part Number Description
1 99784 Reduction gear bolt (10 required)
2 7789 Reduction gear
3 99784 Final drive gear bolt (10 required)
4 7F343 Final drive gear
5 3N305 Differential side bearing
6 7N112 Spacer
7 17285 Vehicle Speed Sensor (VSS) drive gear
8 3N305 Differential side bearing
9 4026 Differential case assembly
