Home >> Ford >> 2012 >> Explorer AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> C3343 Seat Control Switch, Second Row, Left
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

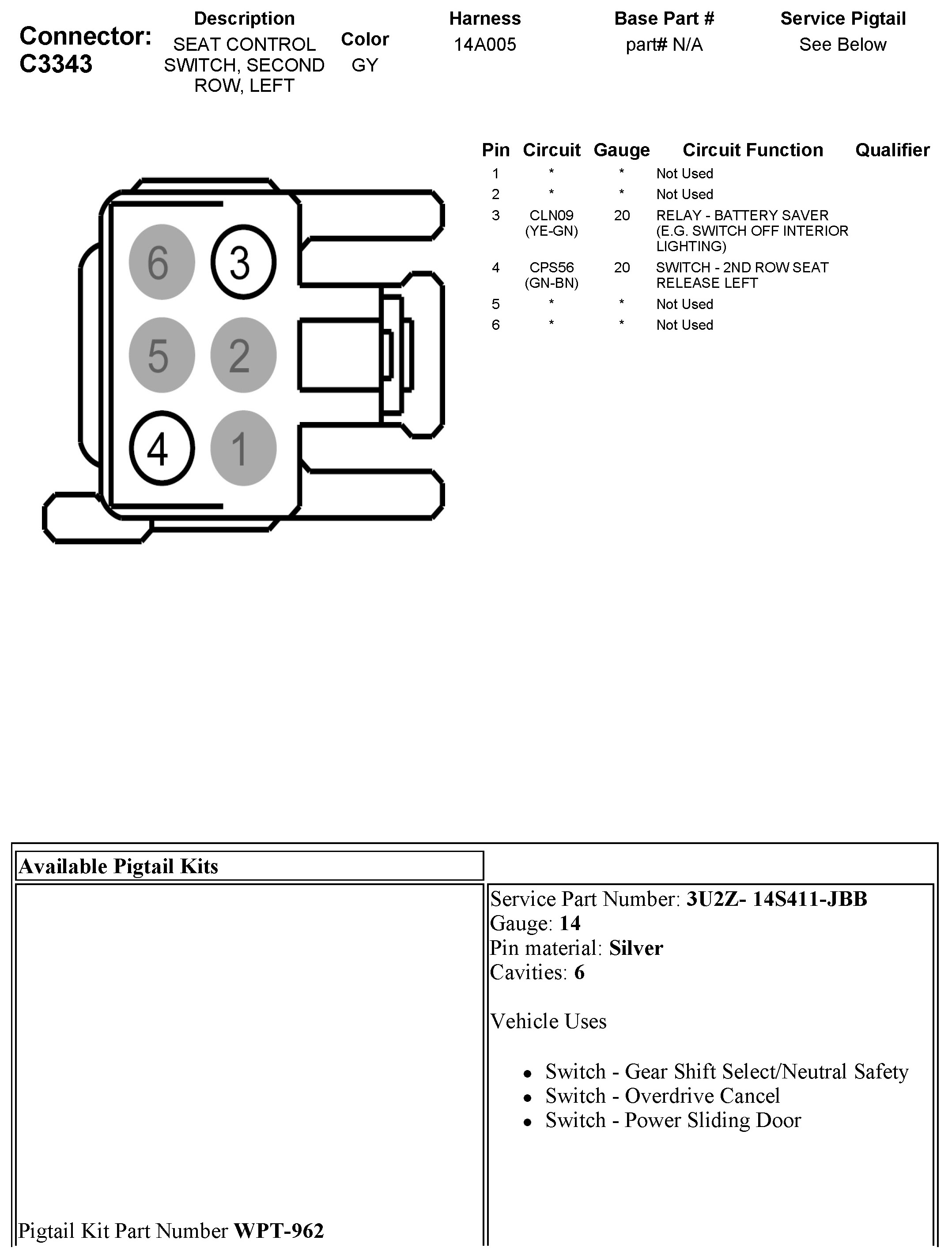

C3343 Seat Control Switch, Second Row, Left
