Vehicles That Don't Start

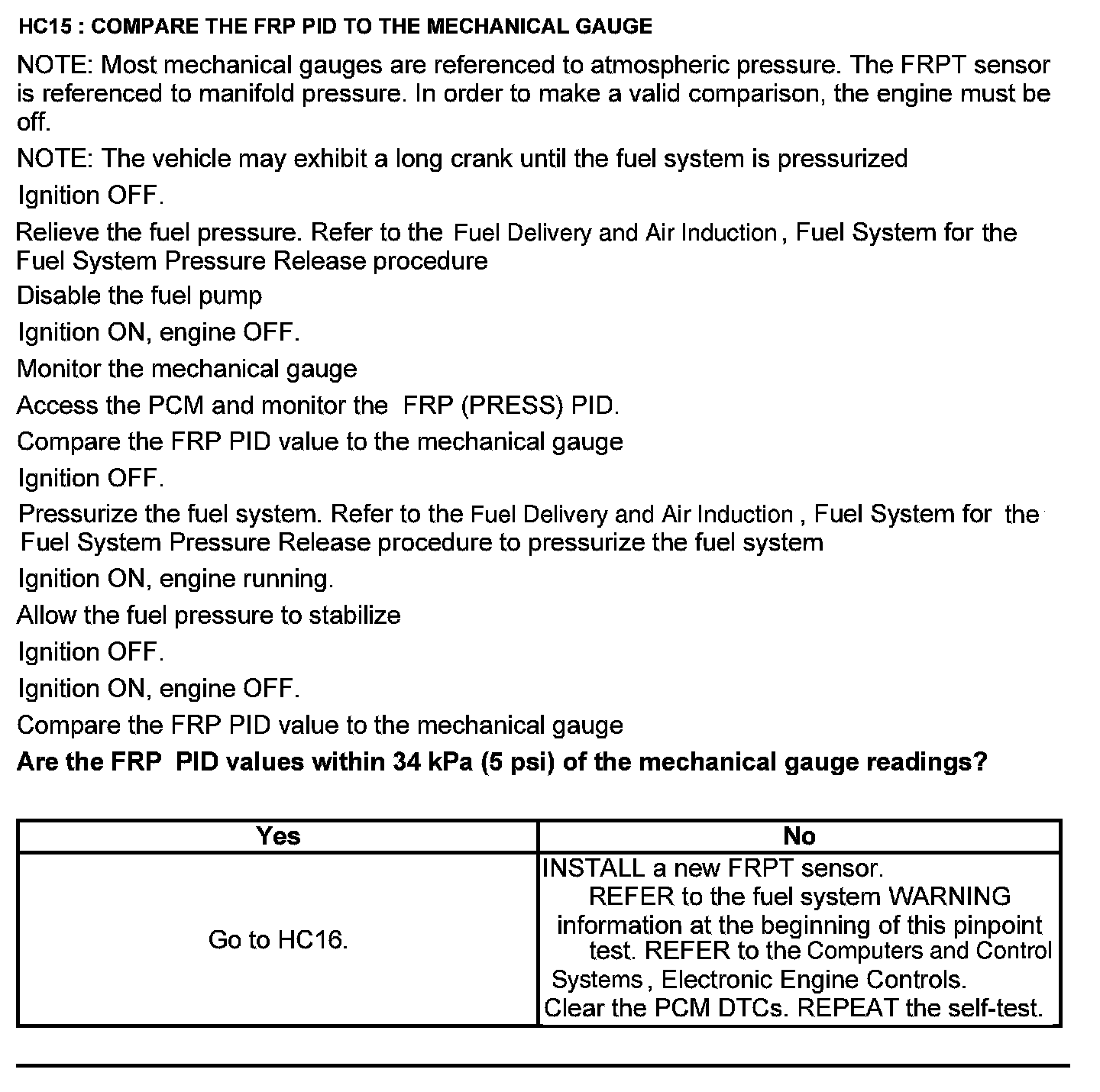

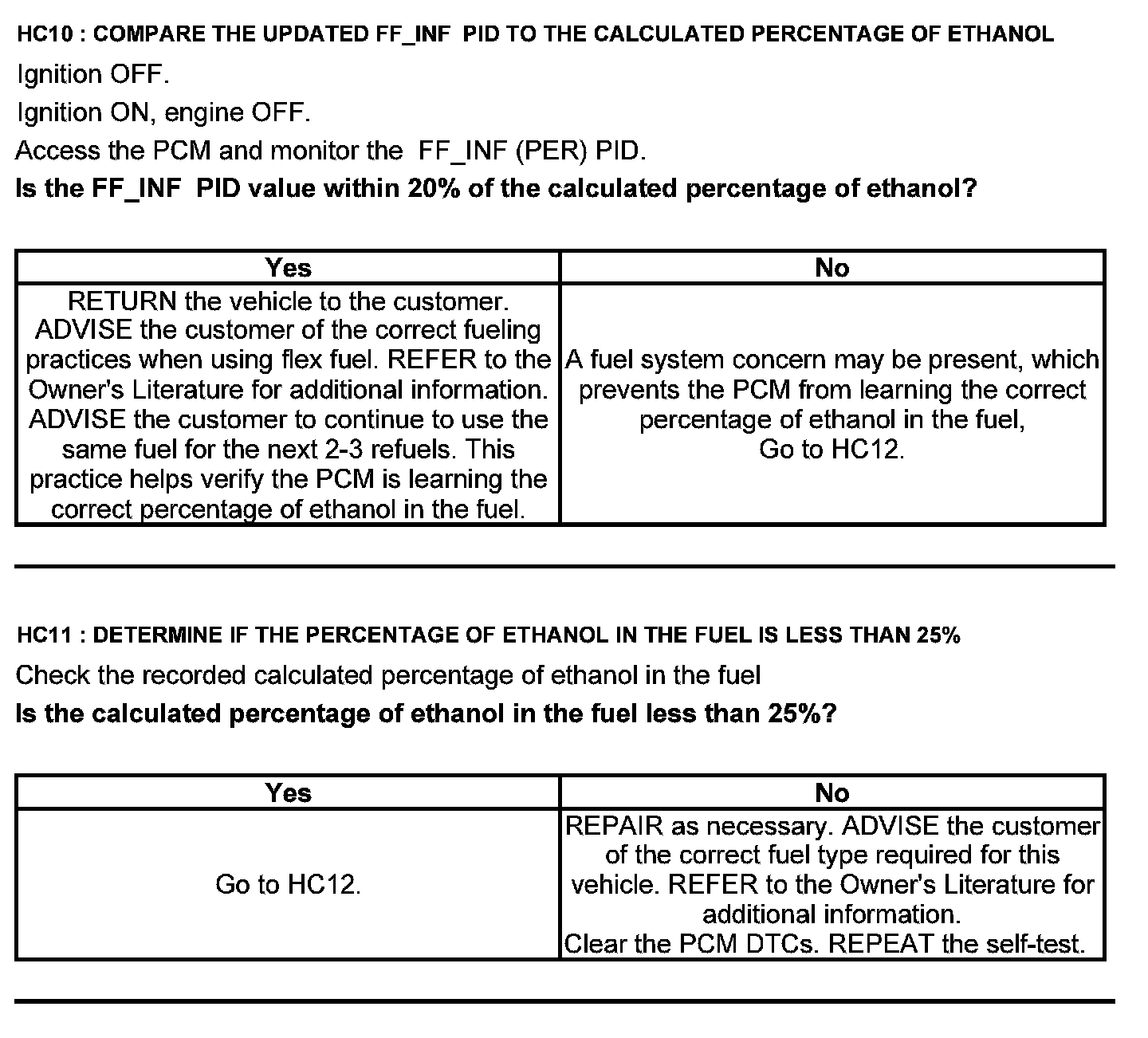

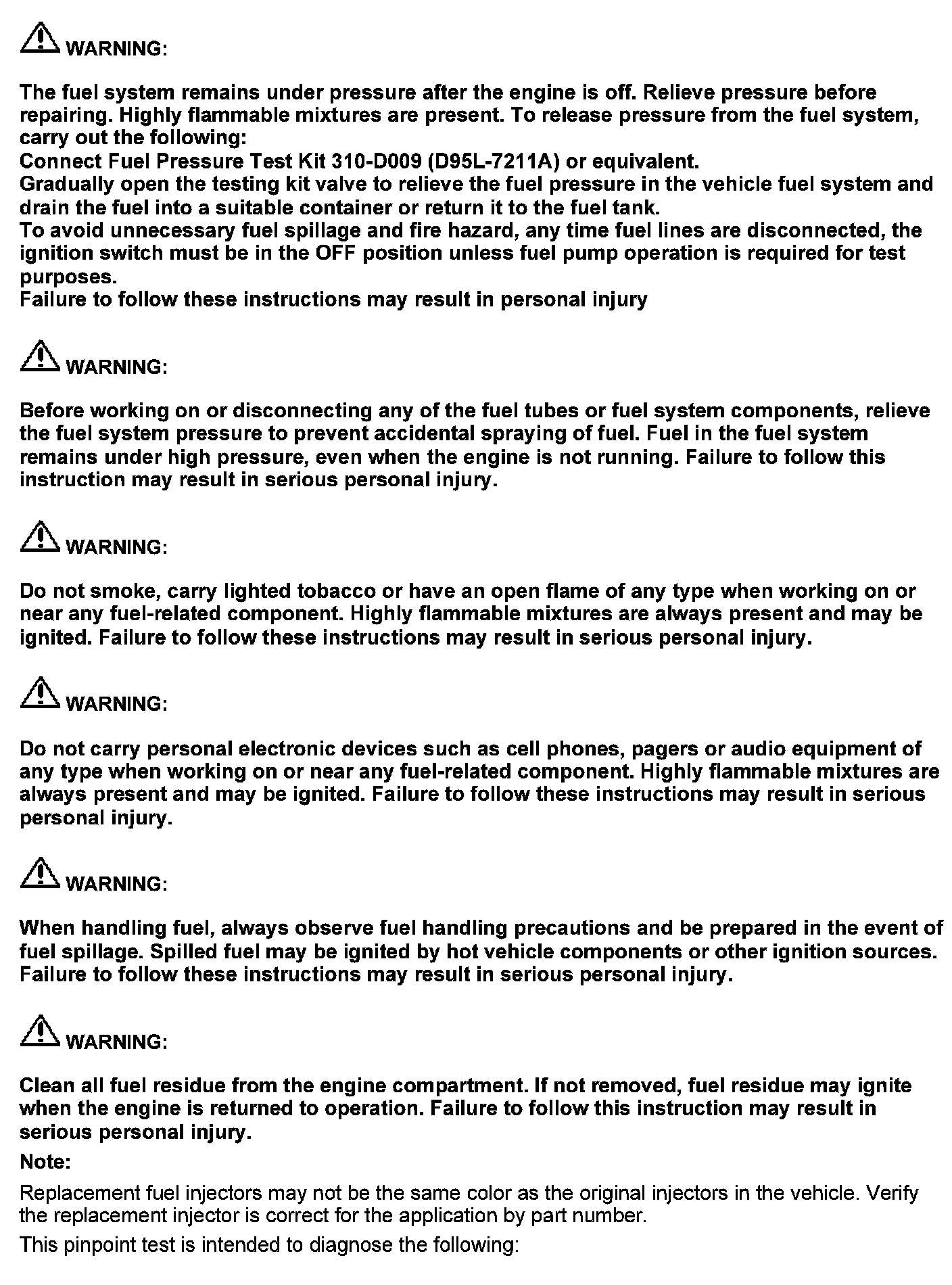

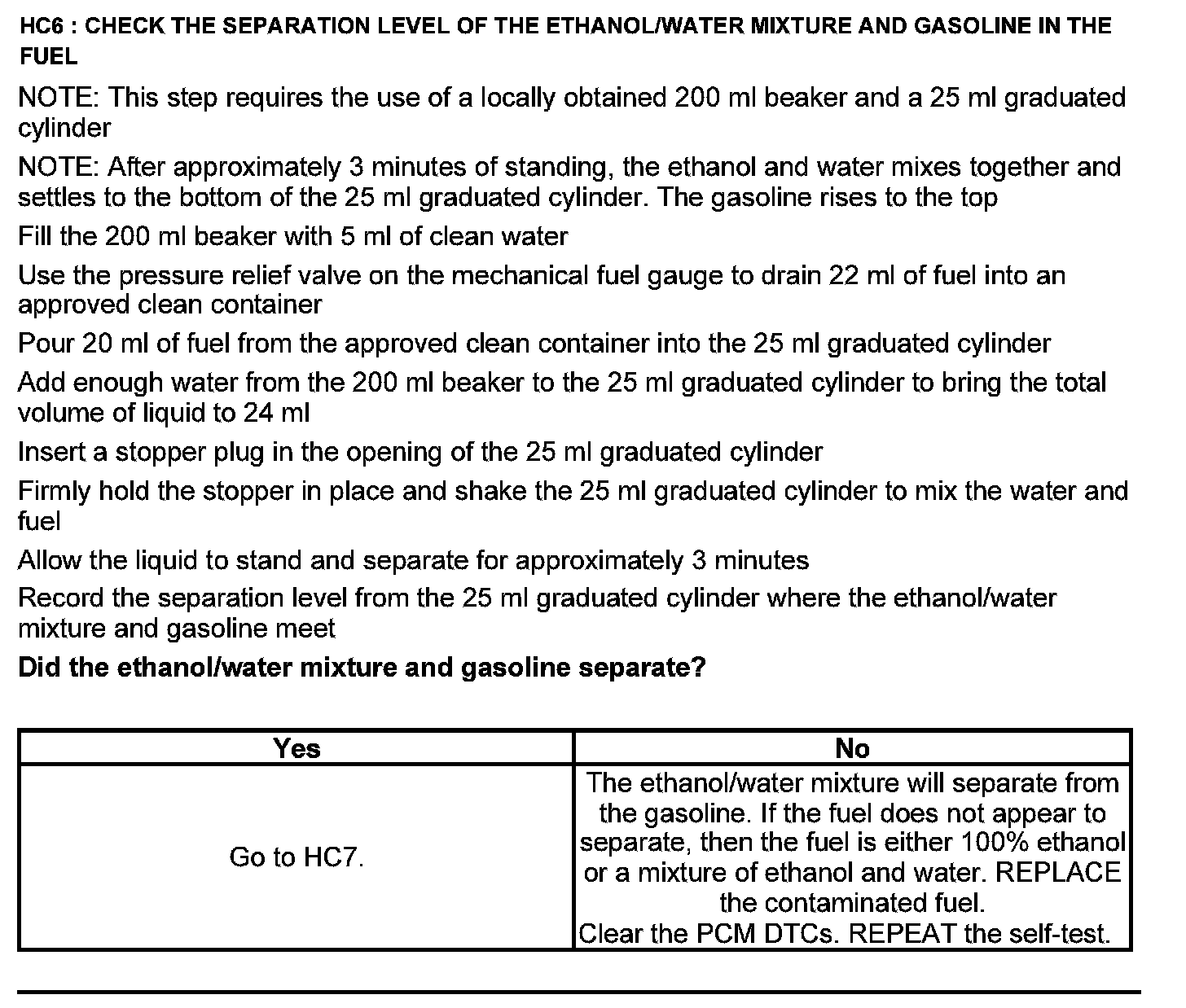

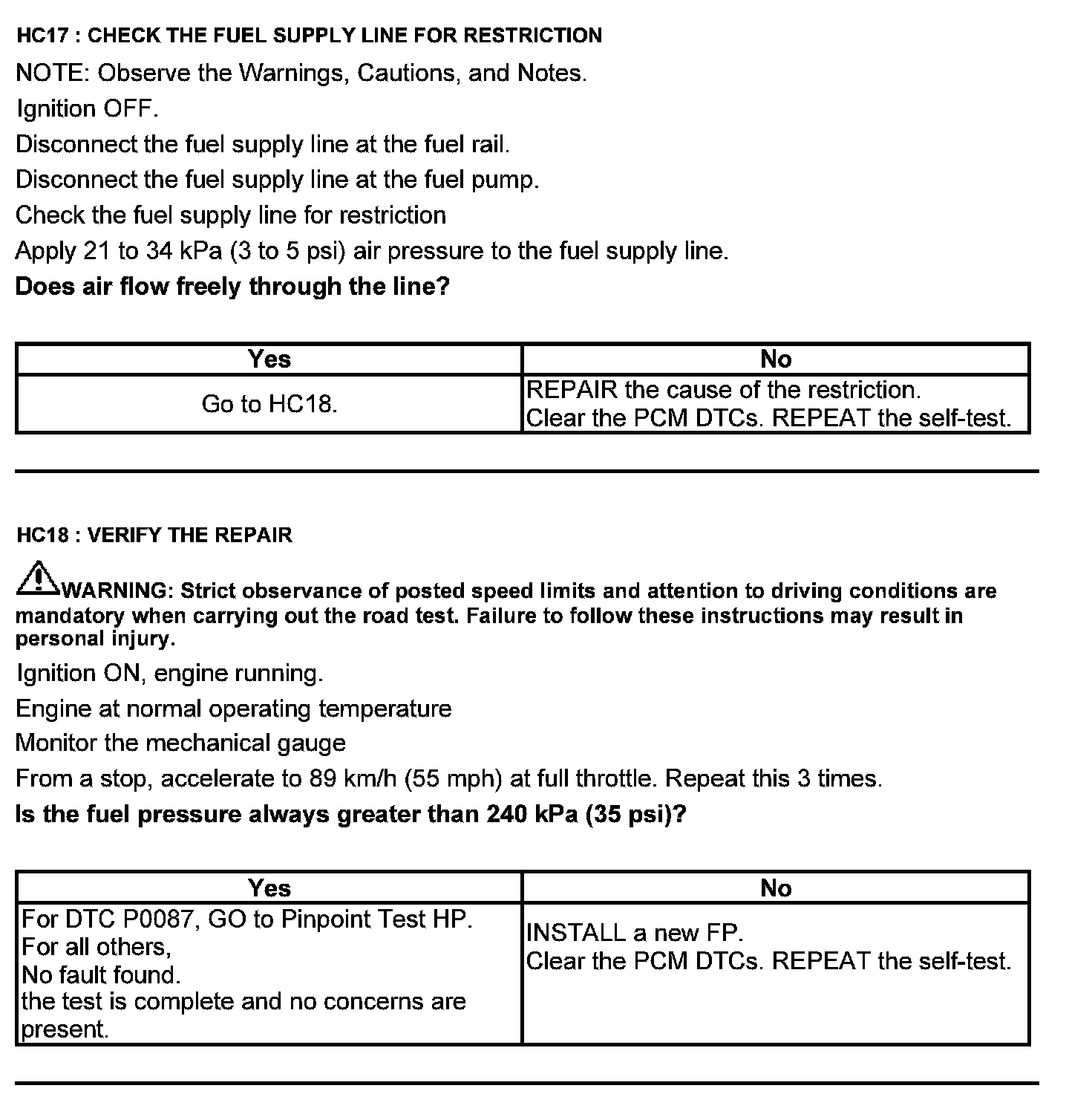

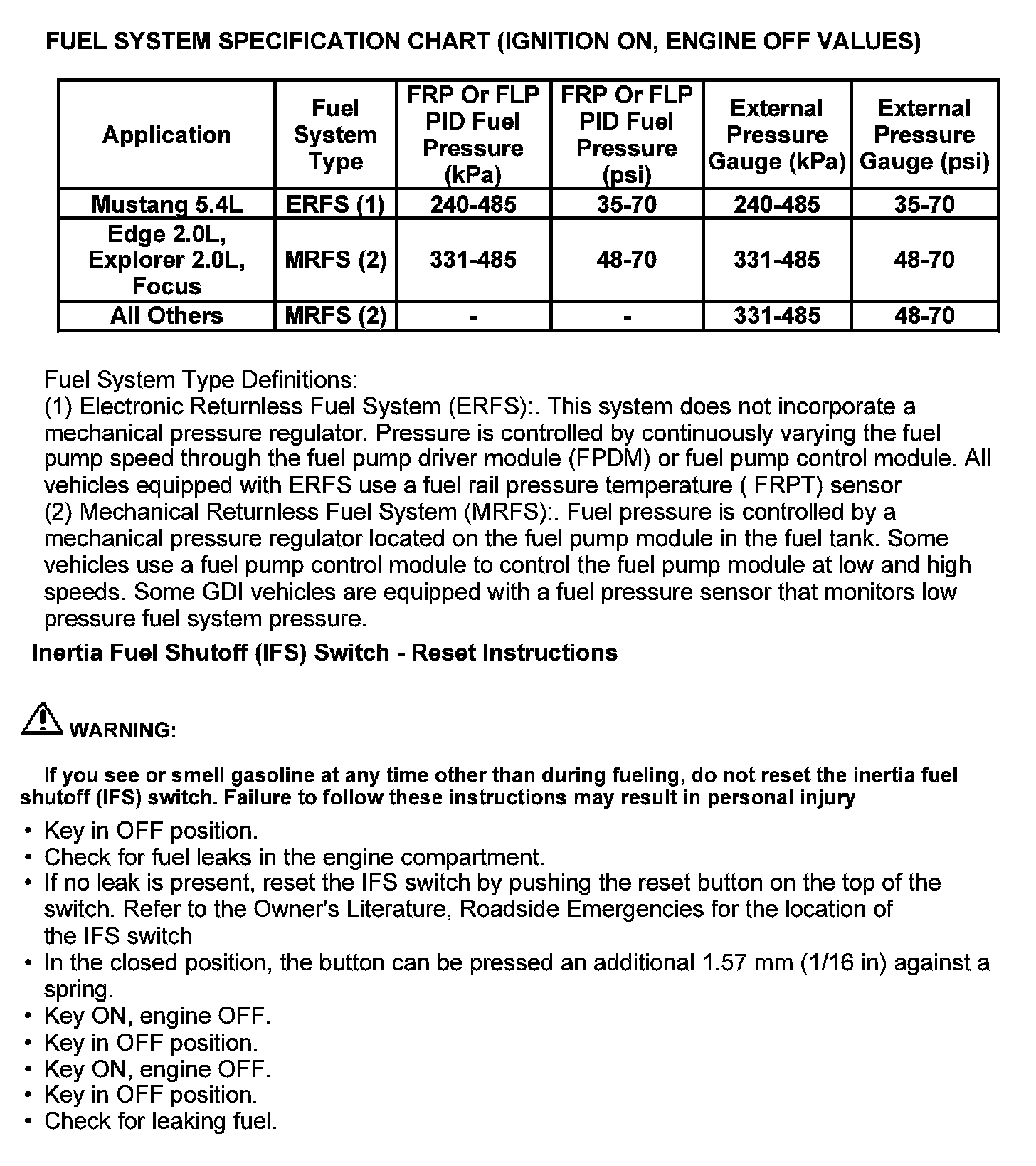

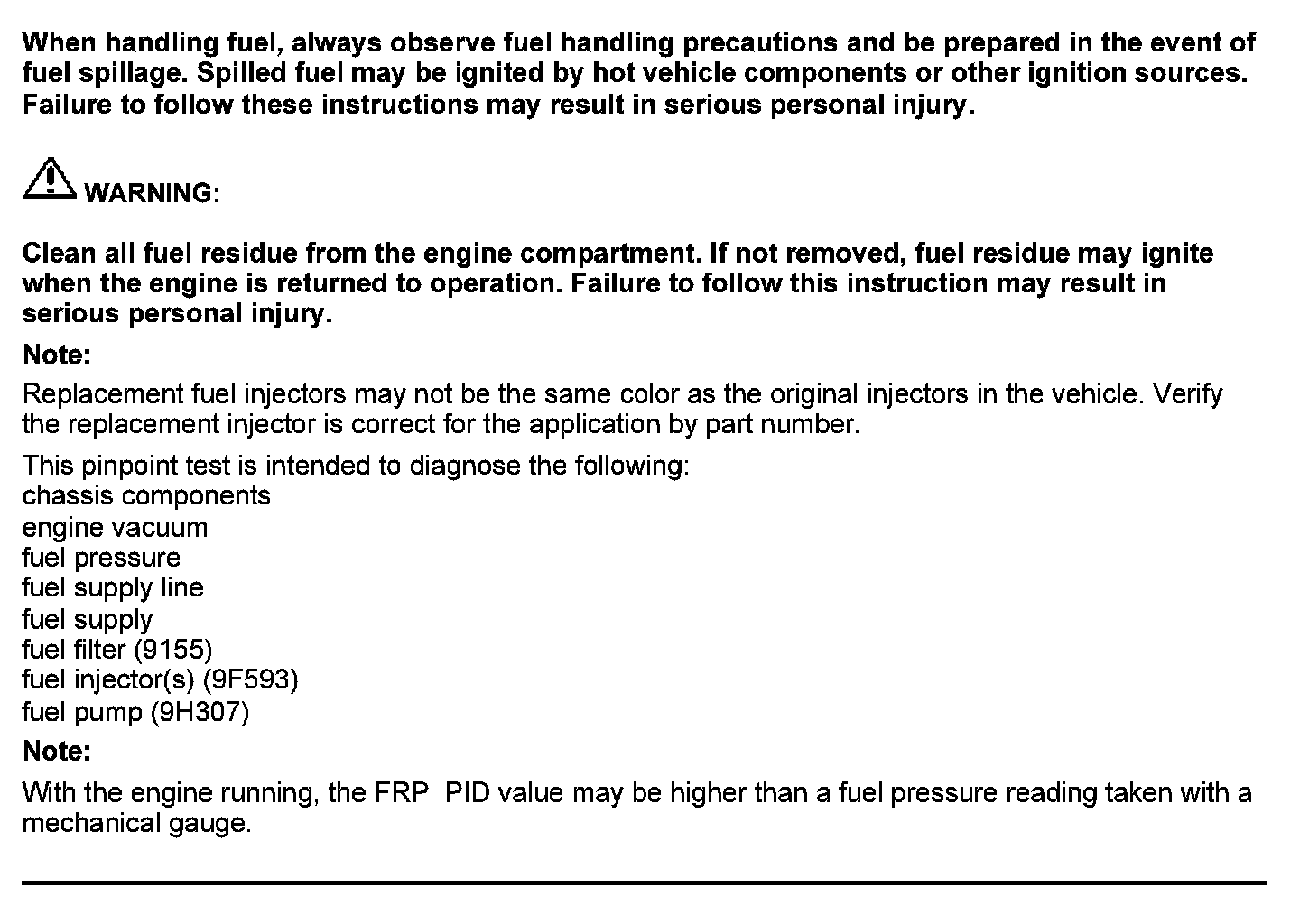

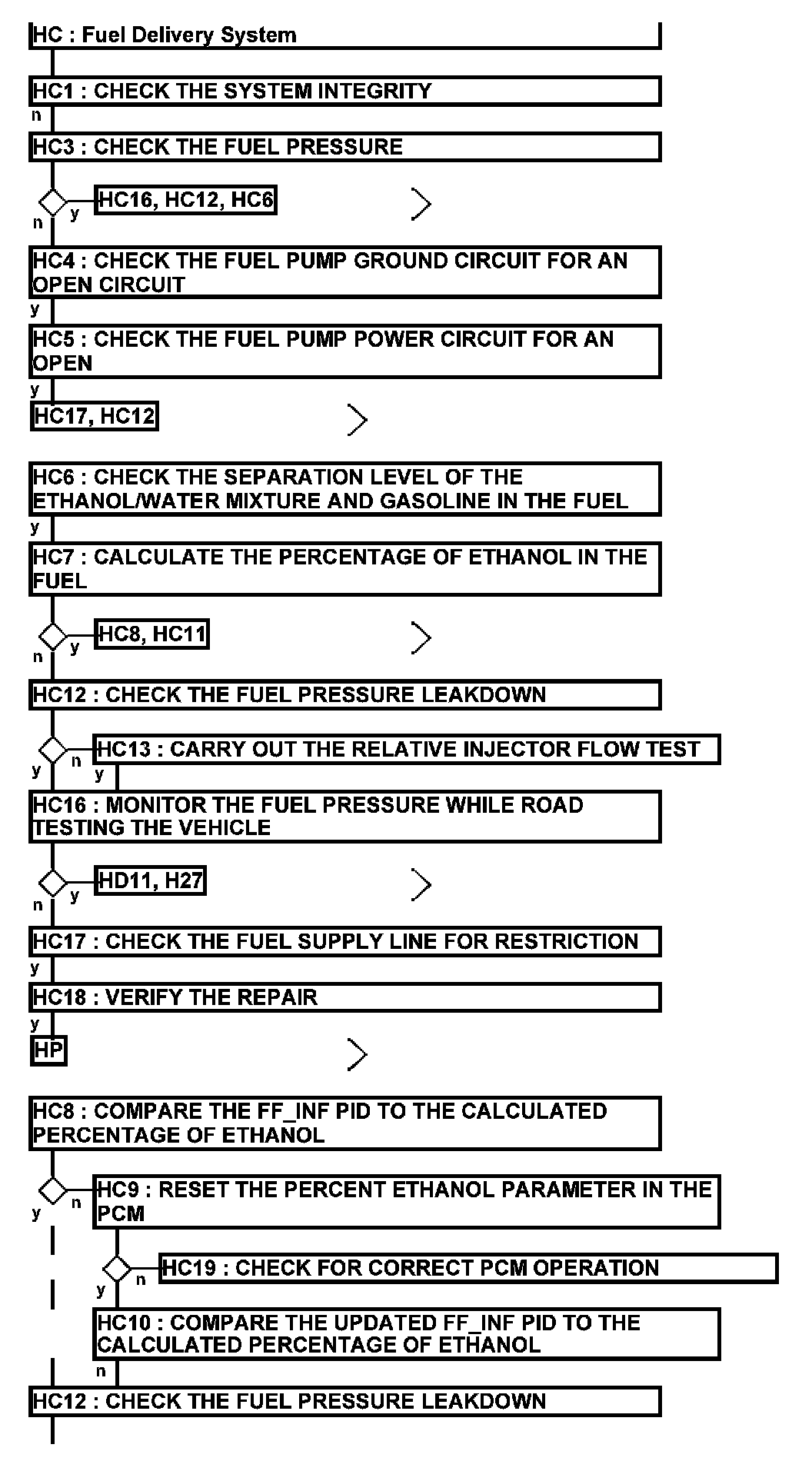

Fuel Delivery System - Vehicles that don't start.

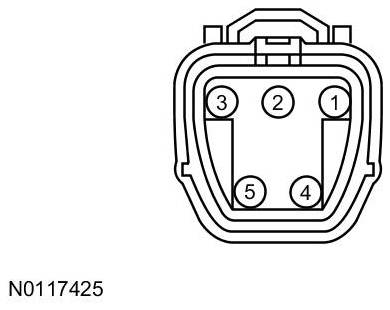

Fuel Pump (FP) Connector





Harness Side
