Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor

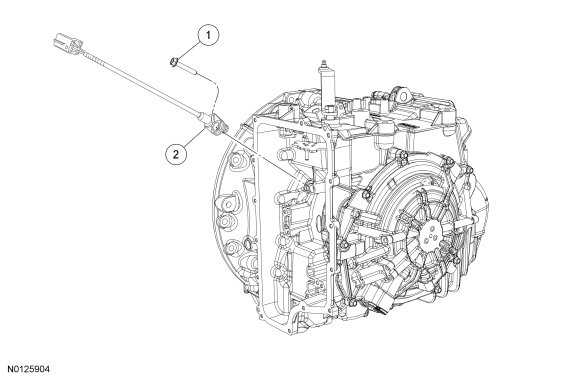

Exploded View









Removal

1. Remove the main control valve body. REFER to Main Control Valve Body .

2. Remove the bolt and the OSS (Output Shaft Speed) sensor.





Installation

1. Install the OSS (Output Shaft Speed) sensor and the OSS (Output Shaft Speed) bolt.
- Tighten to 12 Nm (106 lb-in).





2. Install the main control valve body. REFER to Main Control Valve Body .
