Windshield Moulding / Trim: Service and Repair

Applique - Windshield

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

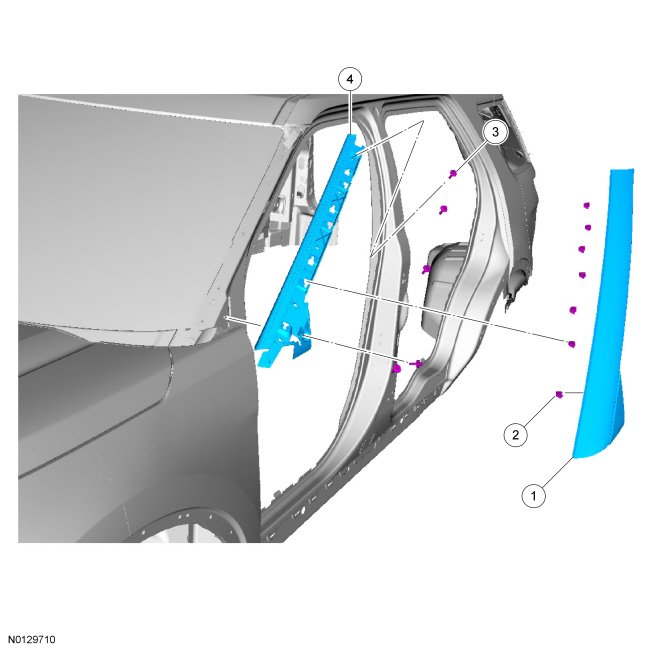

Exploded View

LH (Left Hand) side shown RH (Right Hand) side similar.










Removal

NOTE: A new windshield applique must be installed.

1. Release the 7 windshield applique clips and remove the windshield applique.

Installation

NOTE: A new windshield applique will need to be installed.

1. To install, reverse the removal procedure.

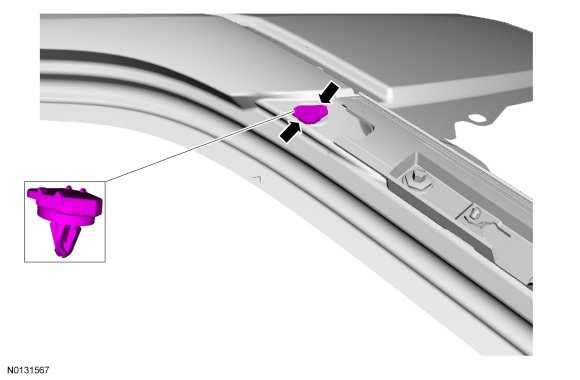

- Using a non-marring tool, release the tabs on both sides of the clip on the top of the A-pillar and transfer to the new windshield applique prior to installation.

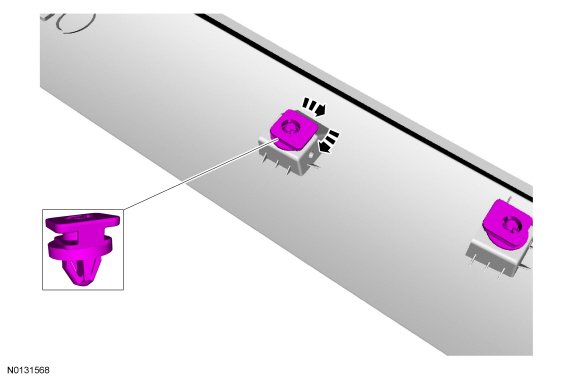

- Any clips that stay attached to the windshield applique during removal, rotate one-quarter turn and remove and snap back in the applique bracket prior to the new applique being installed.
