Body Control Module (BCM)
NOTE:
For component location, see OEM COMPONENT HARNESS LOCATION CHARTS
article and OEM COMPONENT HARNESS LOCATION VIEWS
article.

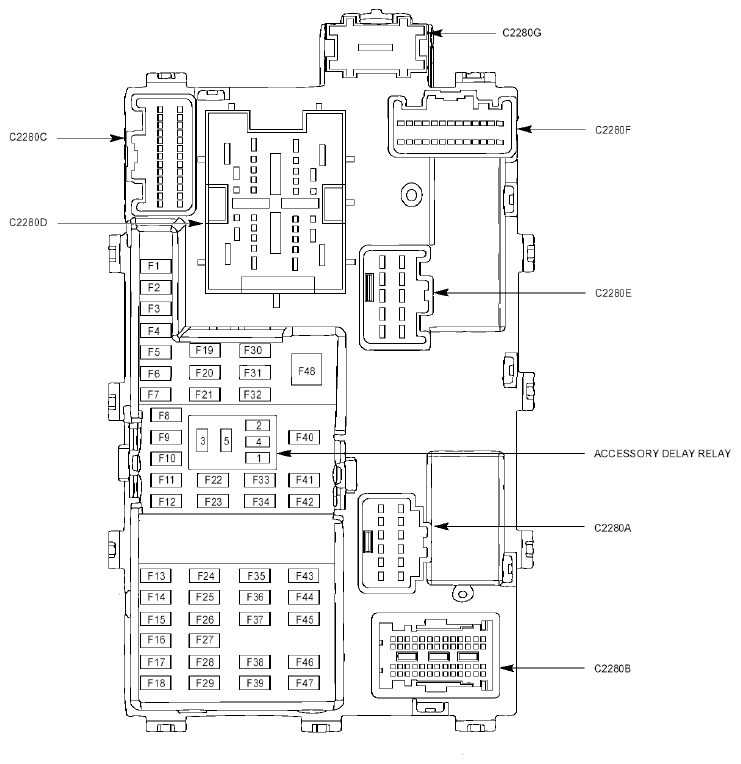

BODY CONTROL MODULE (BCM) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |
BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuit protected |
|---|---|---|
| F1 | 30 | Power window motor, left front - XLT, Limited |
| F2 | 15 | Not used |
| F3 | 30 | Power window motor, right front - XLT, Limited |
| F4 | 10 | Third row power seat relay. Second row seat control switches. Glove box lamp. Overhead console, Vanity mirror lamps, Rail lamps, Second row interior lamp. Cargo lamp |
| F5 | 20 | Audio amplifier - with premium plus audio Audio Digital Signal Processing (DSP) module - with SONY® sound |
| F6 | 5 | Not used |
| F7 | 7.5 | Driver Seat Module (DSM) |
| F8 | 10 | Not used |
| F9 | 10 | Front Controls Interface Module (FCIM). Liftgate / Trunk Module (LTM). Front Control / Display Interface Module (FCDIM) - without SYNC Accessory Protocol Interface Module (APIM) - with SYNC GEN 1 |
| F10 | 10 | Front wiper relay. Rear washer relay. Battery Junction Box (BJB) - F45 |
| F11 | 10 | Instrument Panel Cluster (IPC). Head Up Display (HUD) module |
| F12 | 15 | Exterior rear view mirrors - puddle lamp, Backlighting. Overhead console, Rail lamps. Second row interior lamp, Cargo lamp |
| F13 | 15 | Headlamp assembly, right - turn lamp. Lamp assembly, right rear - turn lamp. Right turn trailer tow relay |
| F14 | 15 | Headlamp assembly, left - turn lamp. Lamp assembly, left rear - turn lamp. Left turn trailer tow relay |
| F15 | 15 | High mounted stoplamp, Rear lamp assemblies - Stop lamp. Reversing trailer tow relay. Rear lamp assemblies - Reversing lamp. Auto-dimming interior mirror |
| F16 | 10 | Headlamp assembly, right - low beam |
| F17 | 10 | Headlamp assembly, left - low beam |
| F18 | 10 | Power-Fold Seat Module (PFSM), Brake shift interlock. Powertrain Control Module (PCM). Keyless entry keypad - without IA. Passive anti-theft transceiver - without IA. Start / Stop switch - with IA |
| F19 | 20 | Seat control switch, driver side front - with memory |
| F20 | 20 | Door latch actuators |
| F21 | 10 | Keyless entry keypad |
| F22 | 20 | Horn |
| F23 | 15 | Remote Function Actuator (RFA) module - with IA. Front Lighting control Module (FLM). Steering Column Control Module (SC CM) |
| F24 | 15 | Data Link Connector (DLC). Steering Column Control Module (SC CM) |
| F25 | 15 | Liftgate latch - without IA without power liftgate. Liftgate / Trunk Module (LTM) - without IA with power liftgate |
| F26 | 5 | Tire Pressure Monitor (TPM) module |
| F27 | 20 | Remote Function Actuator (RFA) module - with IA |
| F28 | 15 | Ignition switch - without IA, Start / Stop switch - with IA |
| F29 | 20 | Audio Control Module (ACM). Accessory Protocol Interface Module (APIM) - with SYNC GEN 2. Global Position System Module (GPSM) - with SYNC |
| F30 | 15 | Headlamp assemblies - park lamp |
| F31 | 5 | Trailer Brake Control (TBC) module connector |
| F32 | 15 | Master window control switch - XLT Limited. Passenger window control switch - XLT, Limited. Front window motors - XLT Limited. Door lock control switches, DC/AC inverter module |
| F33 | 10 | Occupant Classification System Module (OCSM) |
| F34 | 10 | Parking Aid Module (PAM), Video camera. Left Side Obstacle Detection control module (SOD-L). Right Side Obstacle Detection control module (SOD-R) |
| F35 | 5 | Head Up Display (HUD) module. Front Lighting control Module (FLM) In-vehicle temperature / humidity sensor. All Terrain Control Module (ATCM) |
| F36 | 10 | Not used |
| F37 | 10 | Restraints Control Module (RCM) |
| F38 | 10 | Auto-dimming interior mirror. Roof opening panel control switch Roof opening panel module |
| F39 | 15 | Headlamps - high beam |
| F40 | 10 | Parking lamp trailer tow relay. Rear lamp assemblies - park lamp. License plate lamps |
| F41 | 7.5 | Center stack switch assembly. Brake shift interlock |
| F42 | 5 | Not used |
| F43 | 10 | Not used |
| F44 | 10 | Not used |
| F45 | 5 | Not used |
| F46 | 10 | HVAC module |
| F47 | 15 | Fog lamps, Exterior rear view mirrors - cornering lamp |
| F48 | 30 c b | Master window control switch - Base. Passenger window control switch - Base. Rear window control switches |
