Power Point

Power Point

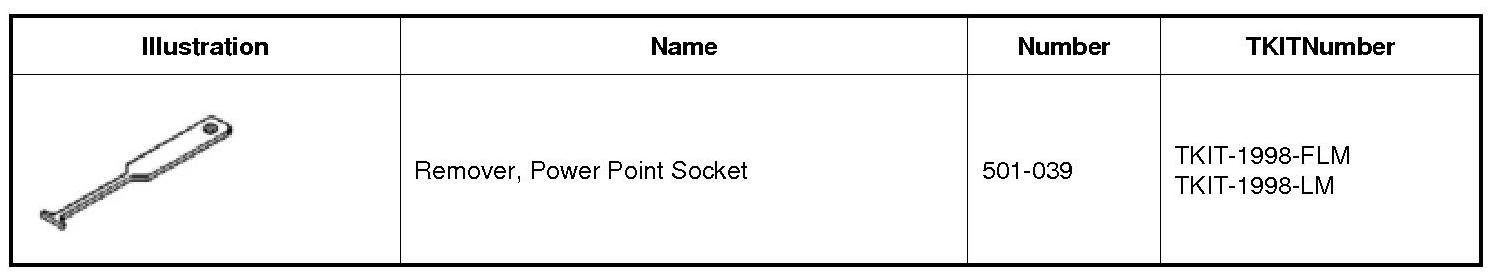

Special Tool(s)






Removal

1. NOTE: Power point cover may differ depending on location.
Open the power point cover.

2. Install 501-039 in one of the power point socket slots.





3. Position 501-039 so that it engages in the adjacent slot.





4. Using 501-039 , pull the power point socket out of the retainer.





5. Disconnect the electrical connector.

Installation

1. Connect the electrical connector.

2. Slide the power point socket into the retainer and close the power point cover.
