Component Location Views

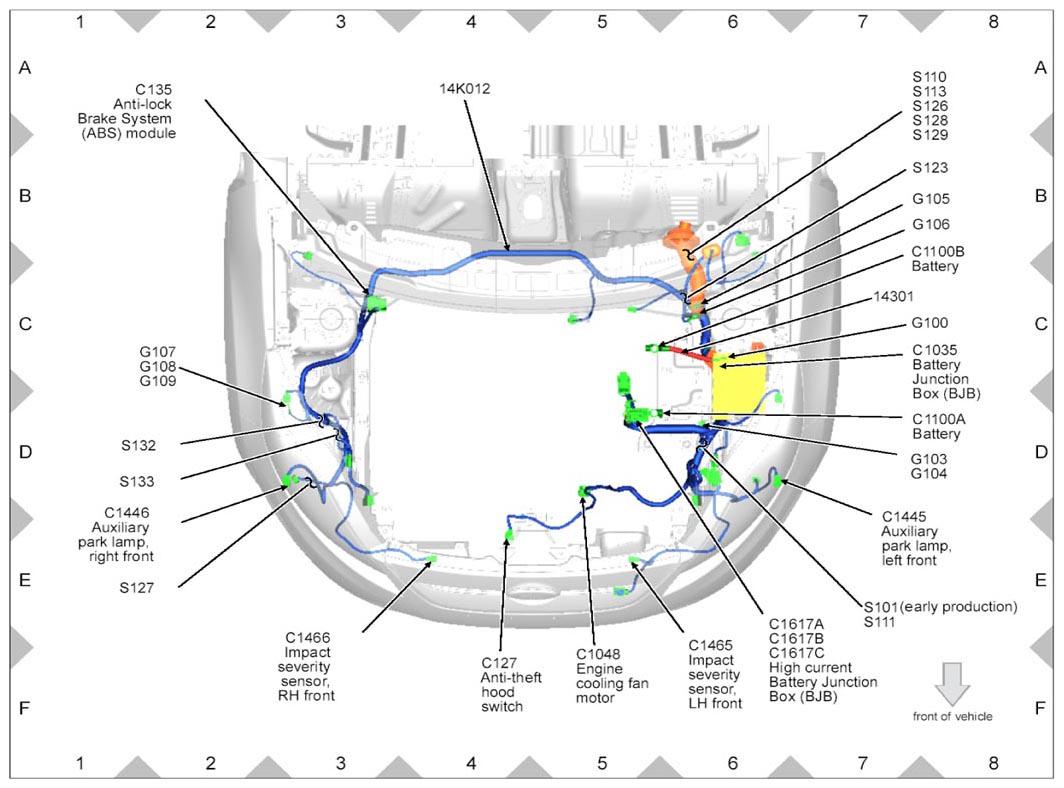

Fig 1: Engine Compartment Wiring Harness Components Location (1 Of 2)

G07894966

Courtesy of FORD MOTOR CO.

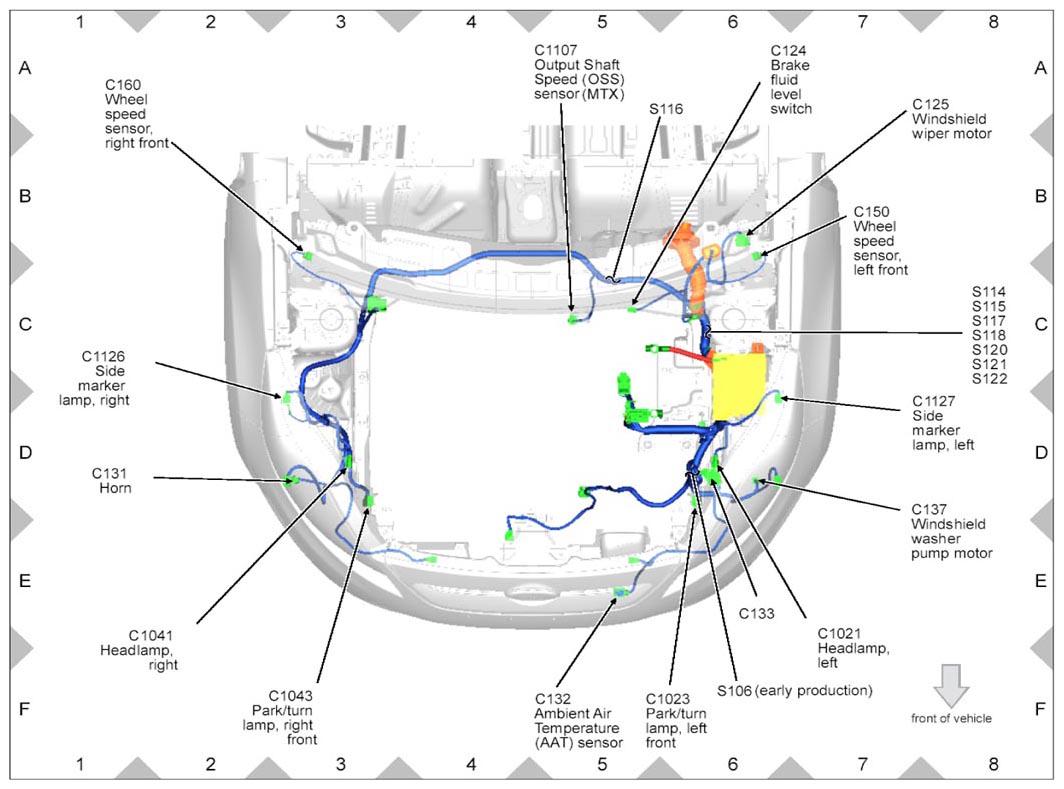

Fig 2: Engine Compartment Wiring Harness Components Location (2 Of 2)

G07894967

Courtesy of FORD MOTOR CO.

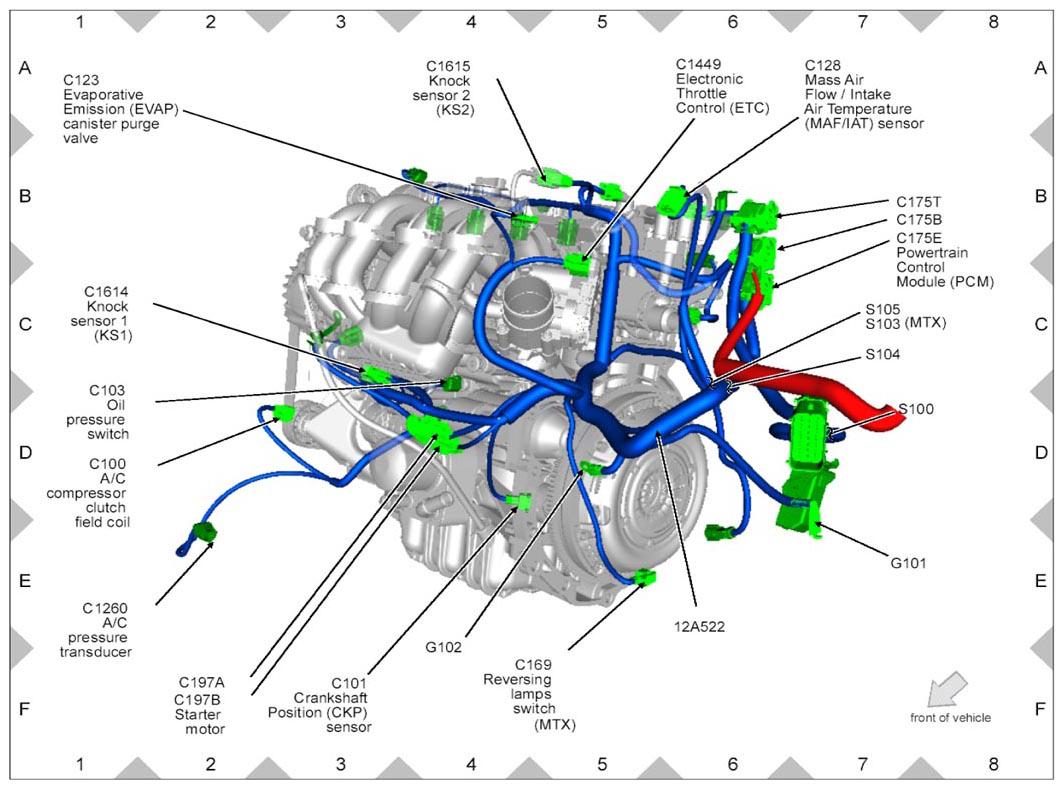

Fig 3: Engine Wiring Harness Components Location (1 Of 2)

G07894968

Courtesy of FORD MOTOR CO.

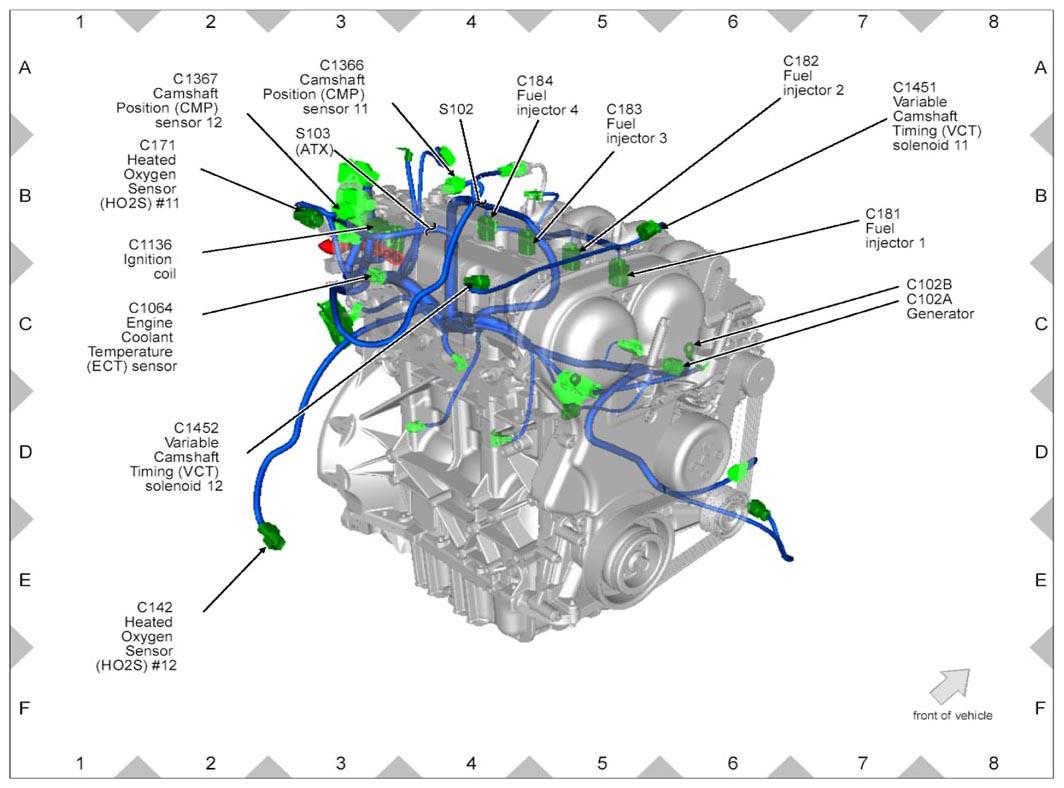

Fig 4: Engine Wiring Harness Components Location (2 Of 2)

G07894969

Courtesy of FORD MOTOR CO.

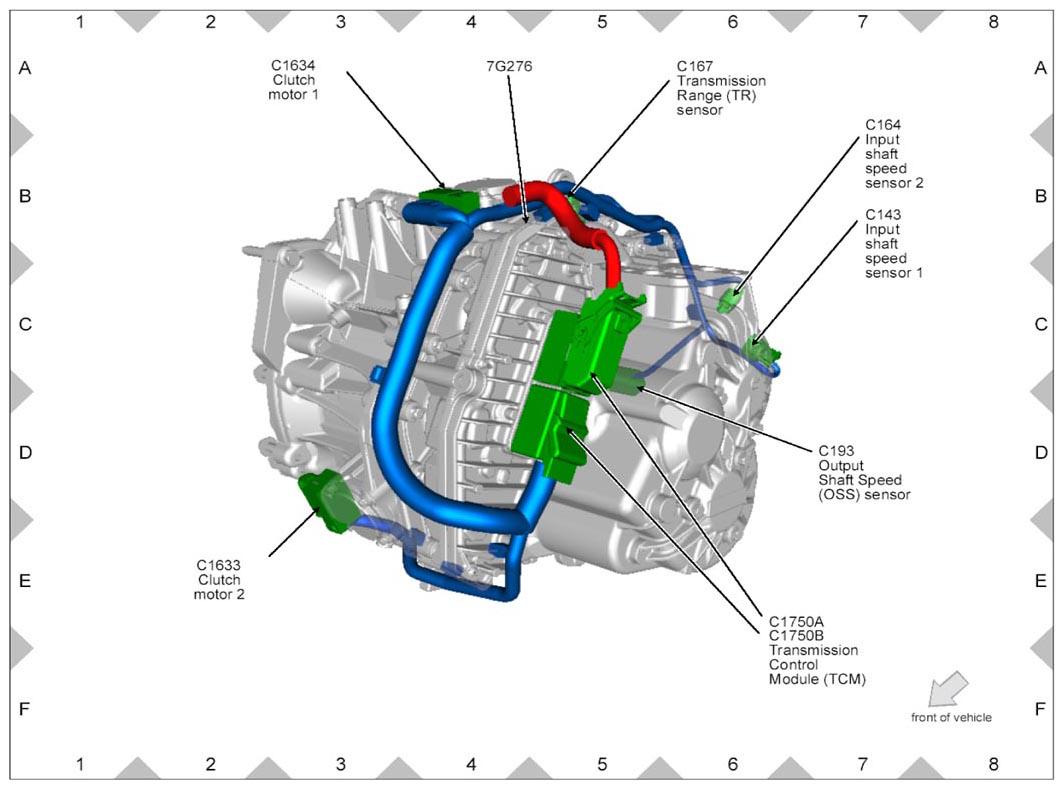

Fig 5: Transmission Wiring Harness Components Location

G07894970

Courtesy of FORD MOTOR CO.

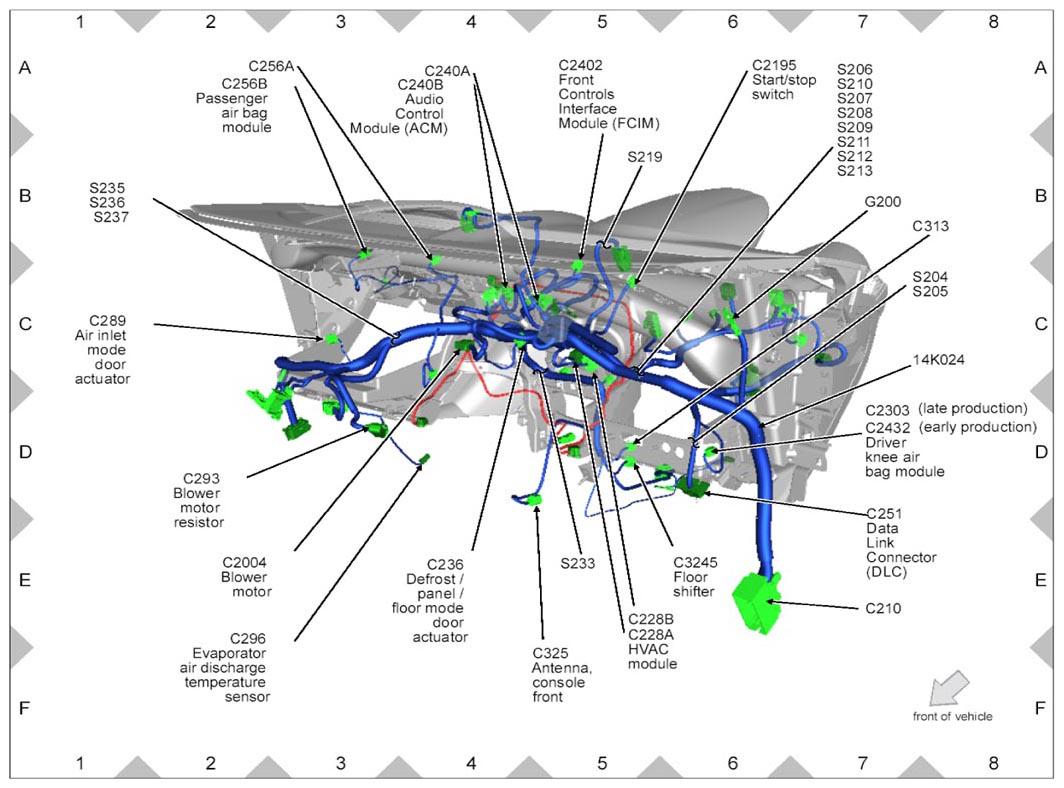

Fig 6: Behind Dash Panel Wiring Harness Components Location

G07894971

Courtesy of FORD MOTOR CO.

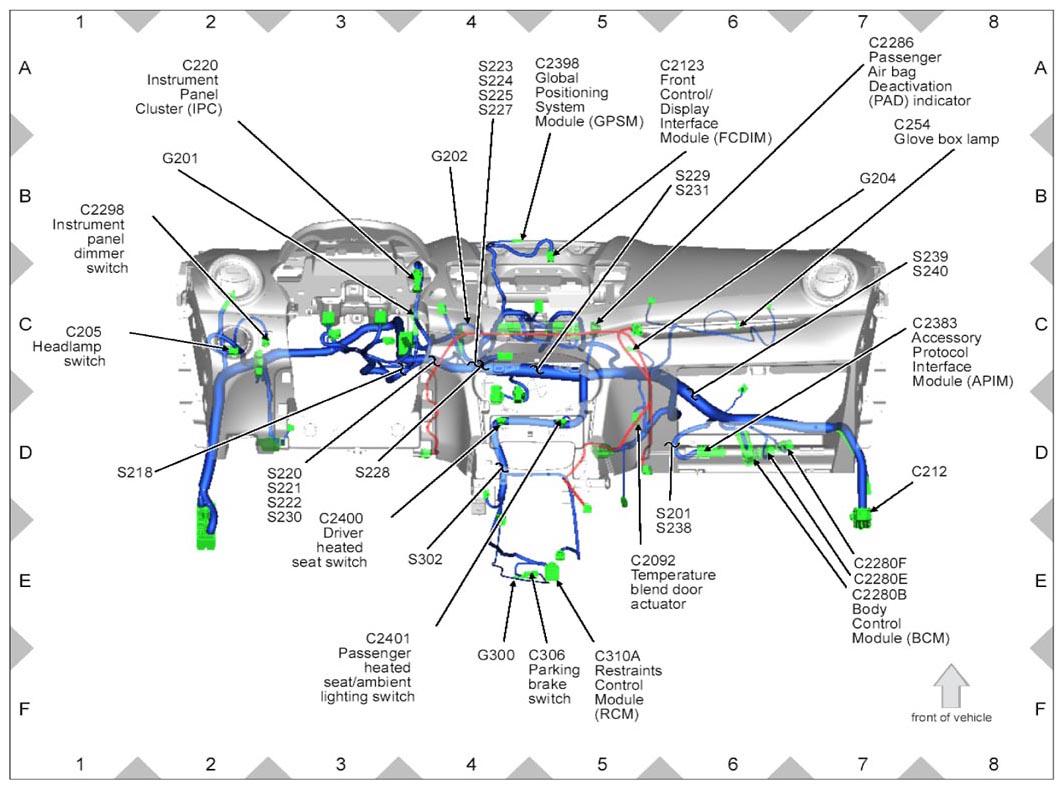

Fig 7: Dash Panel Wiring Harness Components Location

G07894972

Courtesy of FORD MOTOR CO.

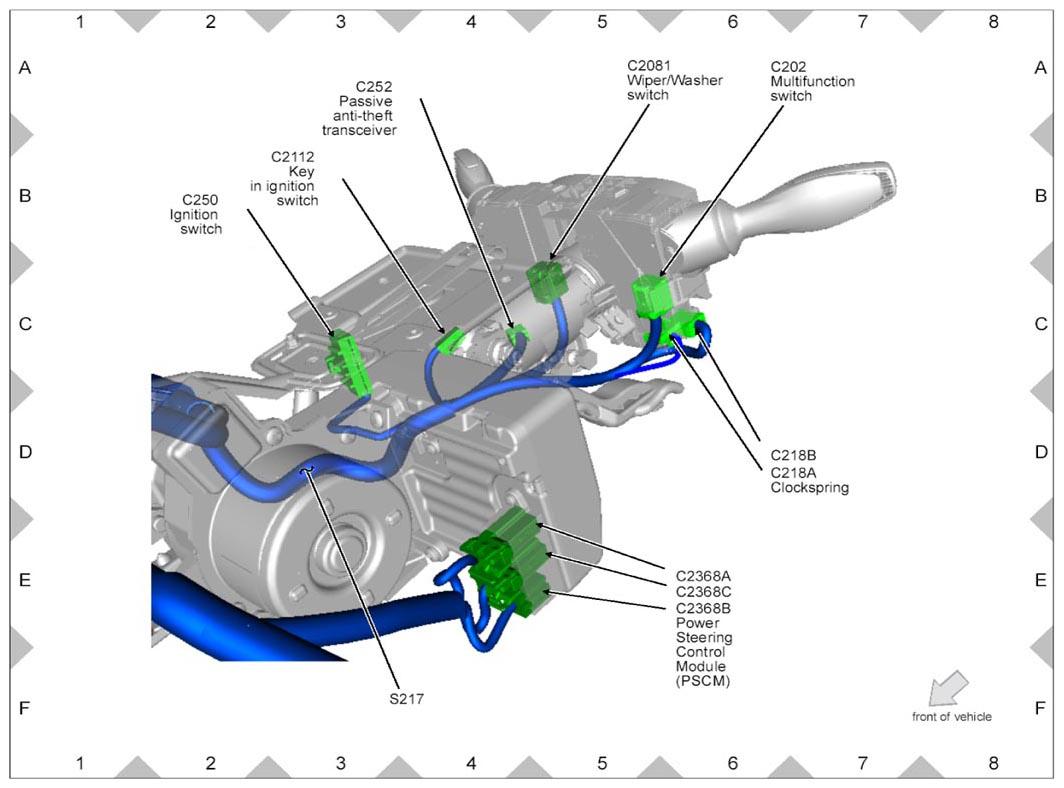

Fig 8: Steering Column Wiring Harness Components Location

G07894973

Courtesy of FORD MOTOR CO.

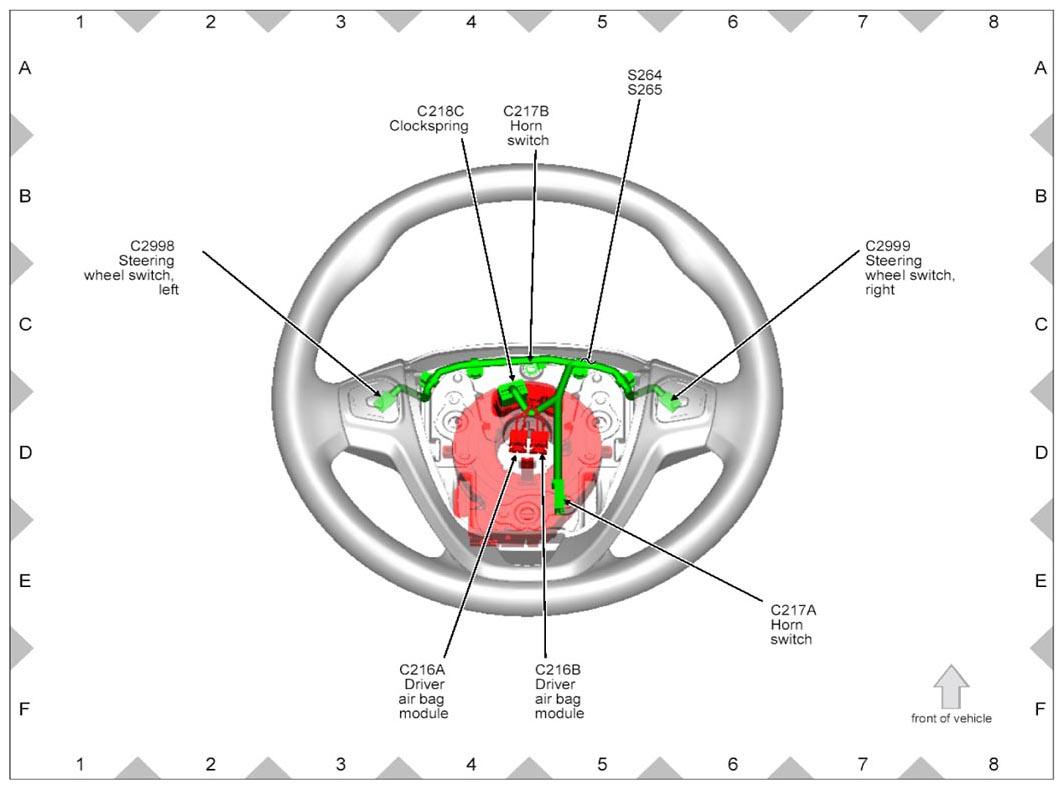

Fig 9: Steering Wheel Wiring Harness Components Location

G07894974

Courtesy of FORD MOTOR CO.

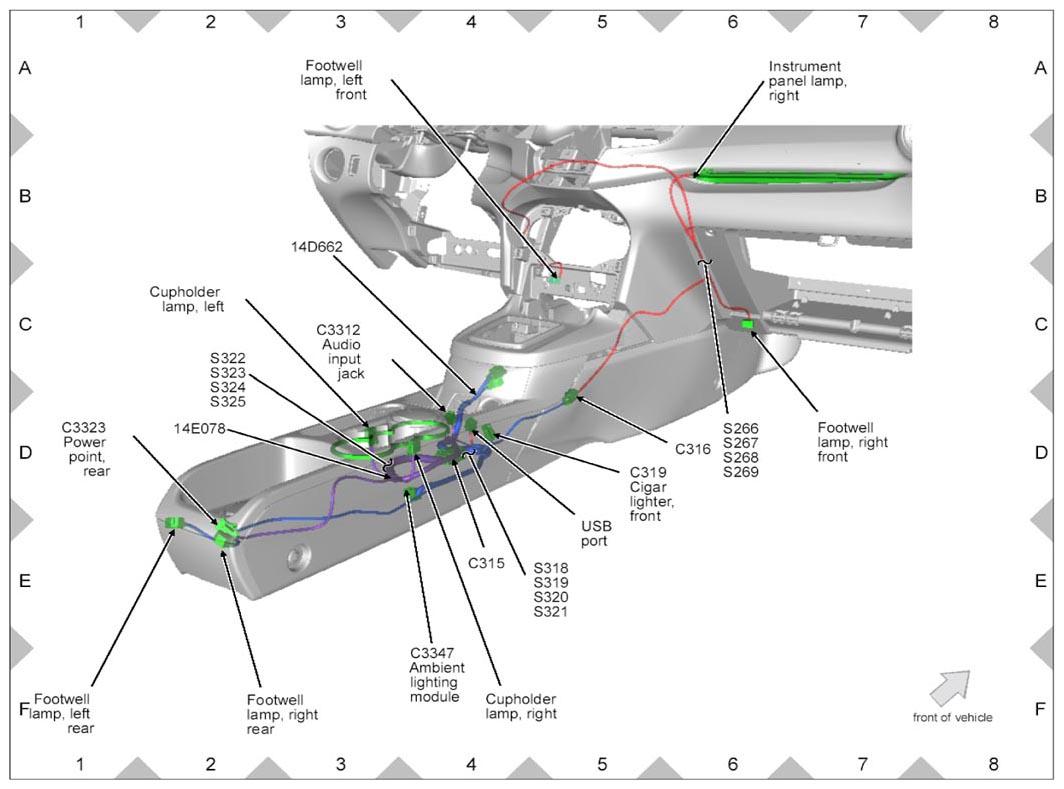

Fig 10: Center Console Wiring Harness Components Location

G07894975

Courtesy of FORD MOTOR CO.

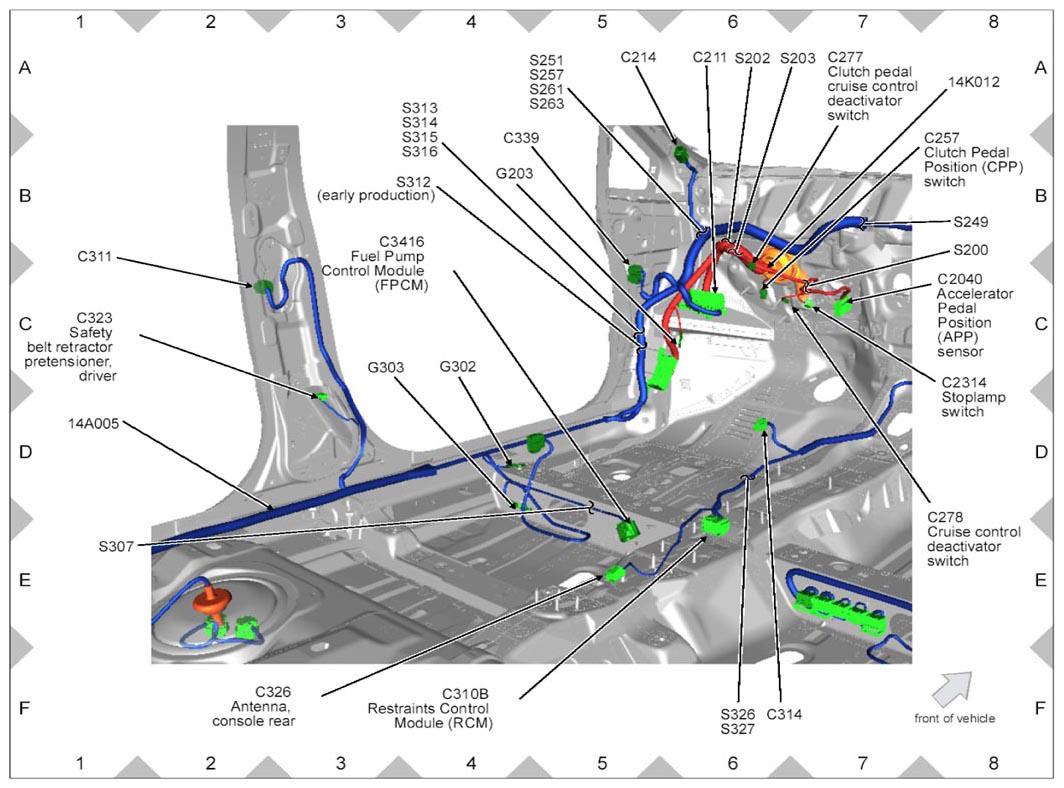

Fig 11: Vehicle Interior Compartment Wiring Harness Components Location (1 Of 6)

G07894976

Courtesy of FORD MOTOR CO.

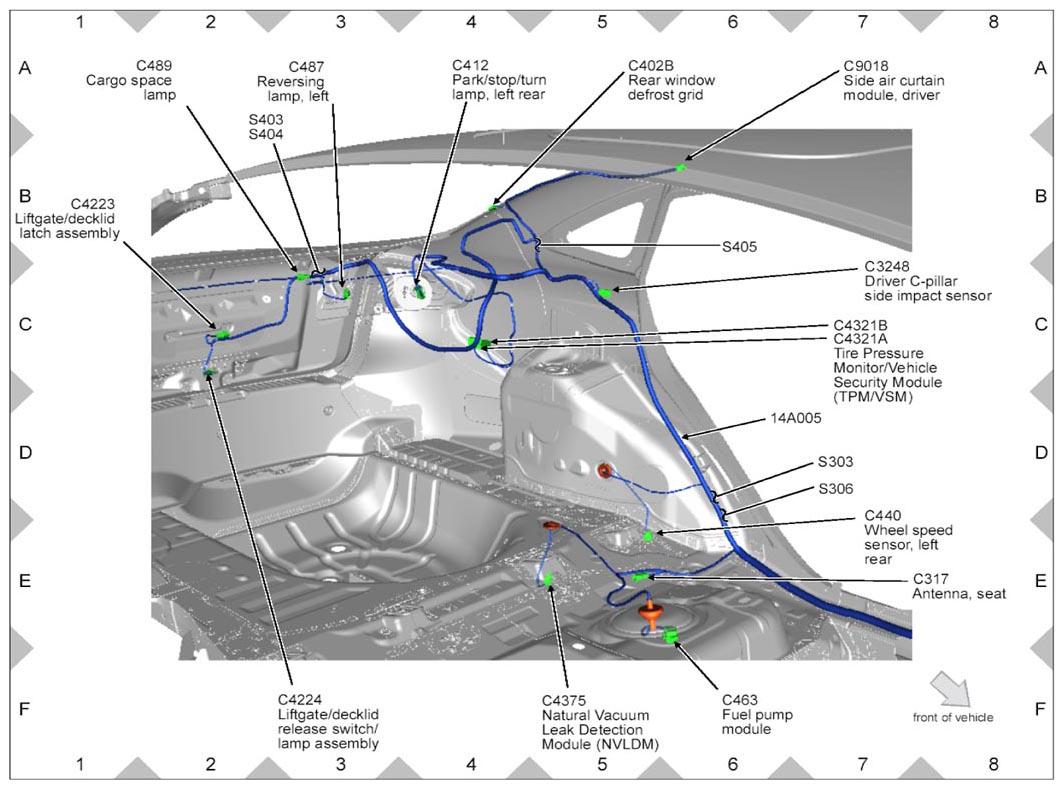

Fig 12: Vehicle Interior Compartment Wiring Harness Components Location (2 Of 6)

G07894977

Courtesy of FORD MOTOR CO.

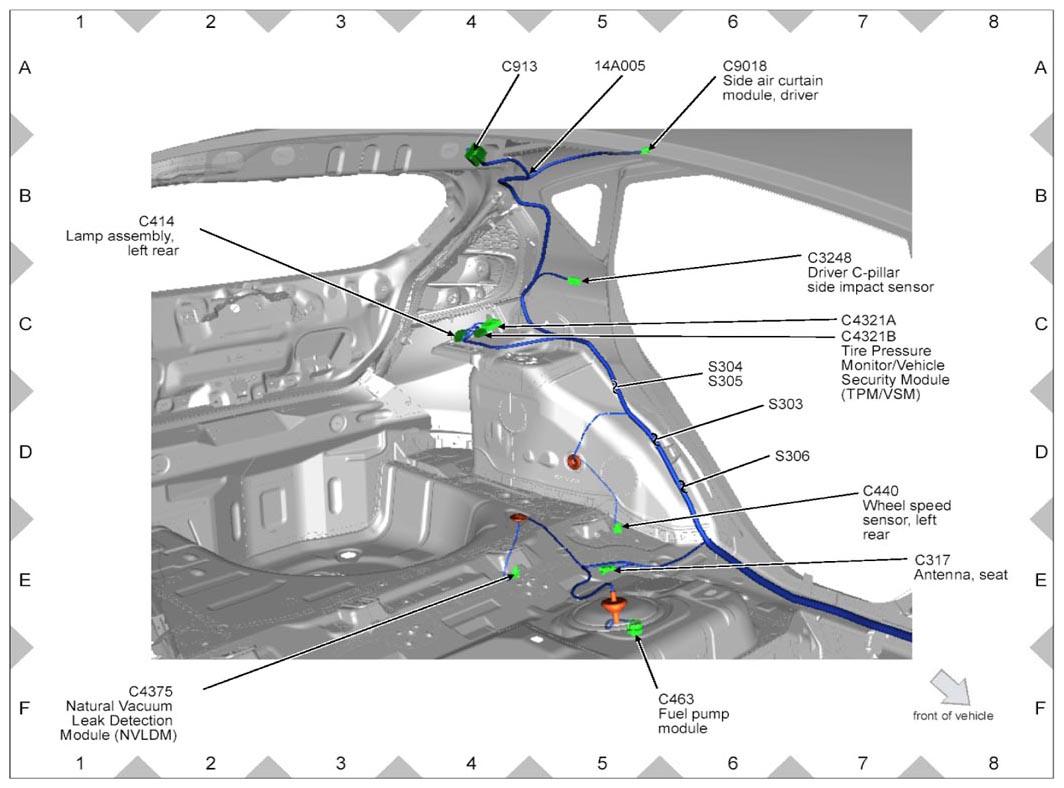

Fig 13: Vehicle Interior Compartment Wiring Harness Components Location (3 Of 6)

G07894978

Courtesy of FORD MOTOR CO.

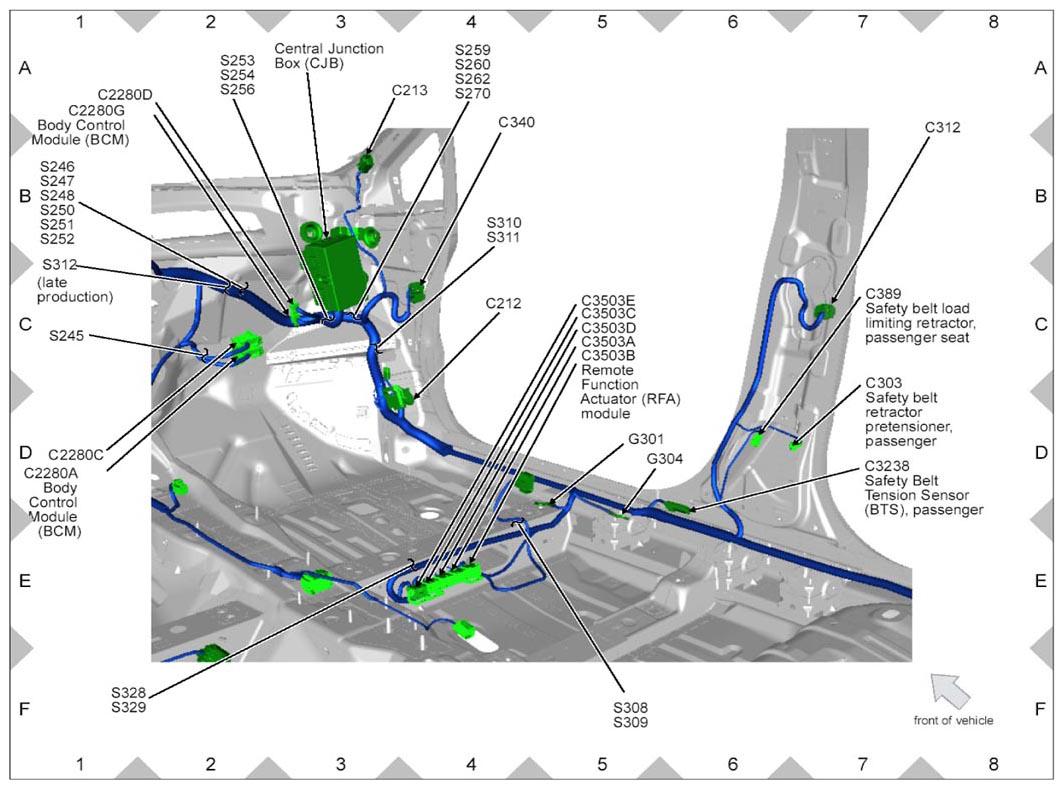

Fig 14: Vehicle Interior Compartment Wiring Harness Components Location (4 Of 6)

G07894979

Courtesy of FORD MOTOR CO.

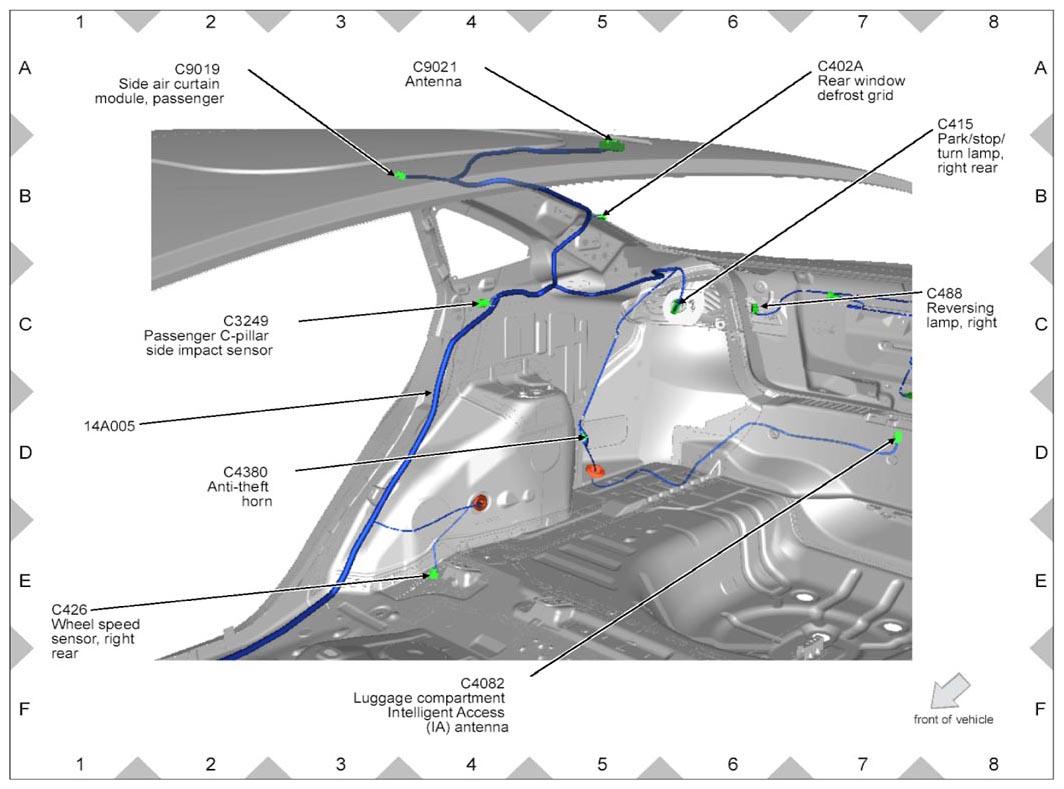

Fig 15: Vehicle Interior Compartment Wiring Harness Components Location (5 Of 6)

G07894980

Courtesy of FORD MOTOR CO.

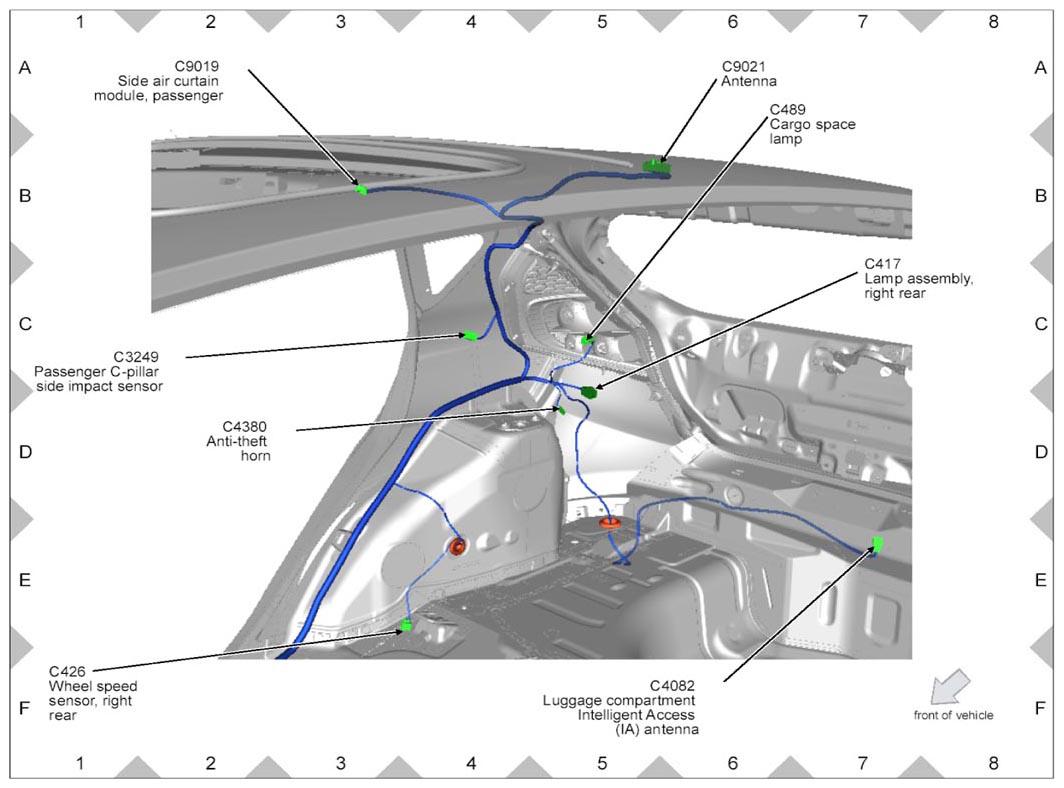

Fig 16: Vehicle Interior Compartment Wiring Harness Components Location (6 Of 6)

G07894981

Courtesy of FORD MOTOR CO.

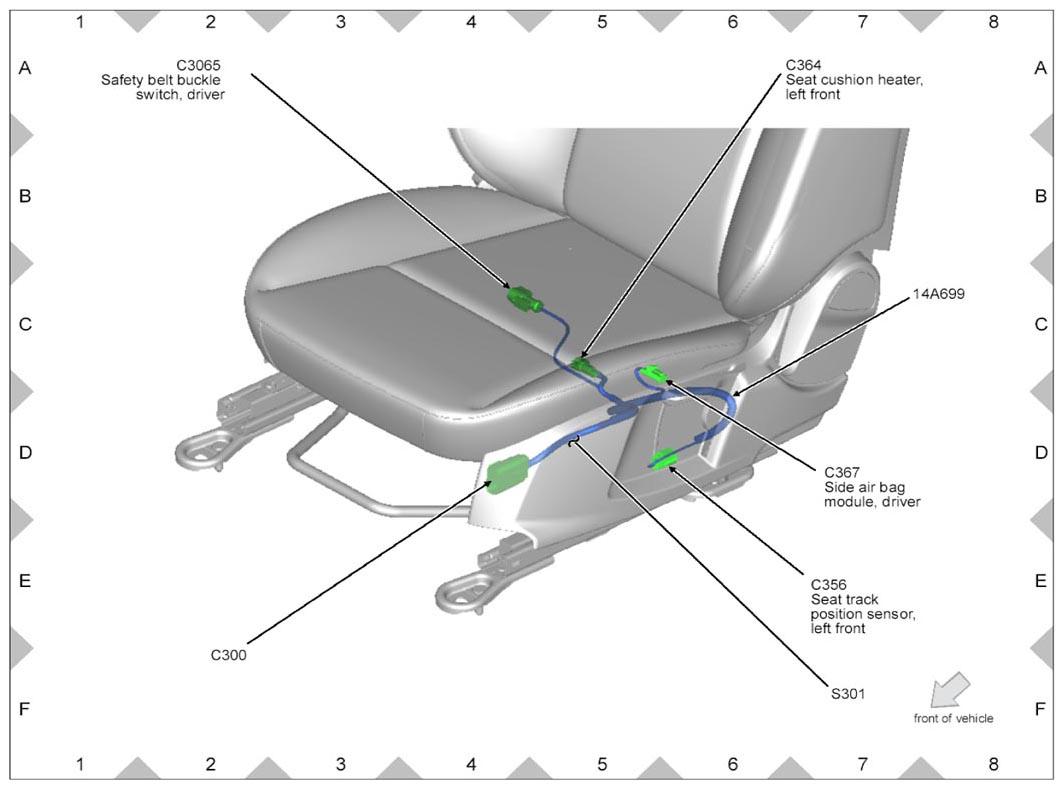

Fig 17: Seat Wiring Harness Components Location (1 Of 2)

G07894982

Courtesy of FORD MOTOR CO.

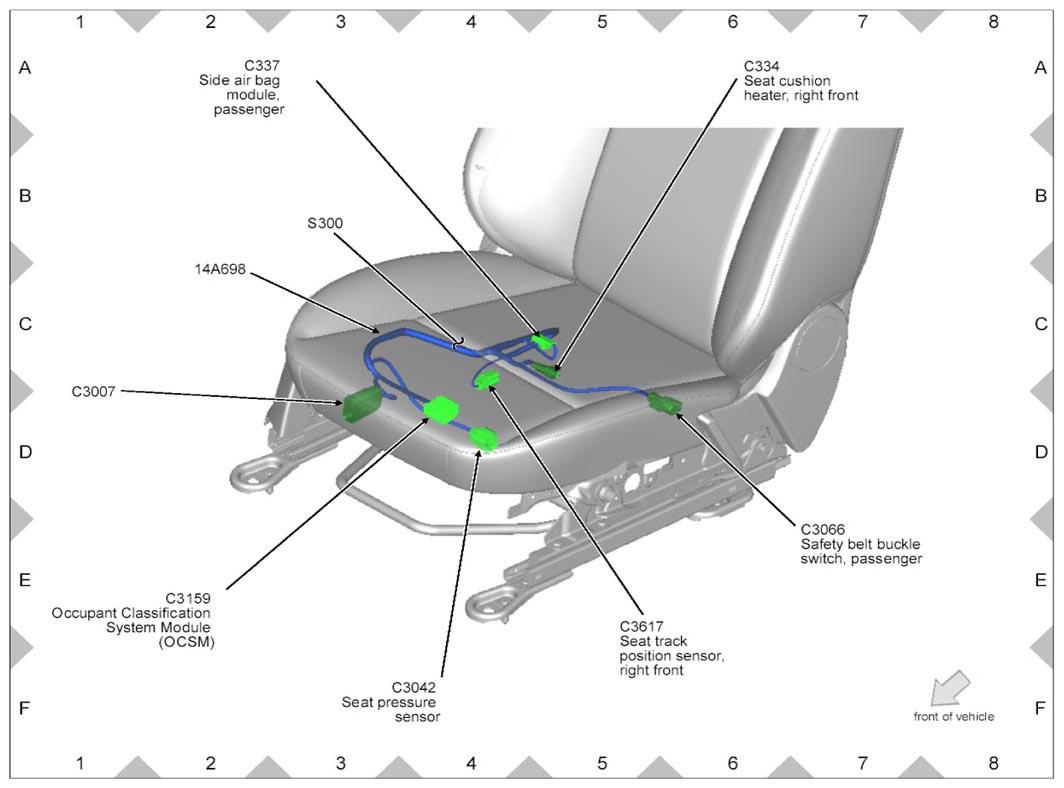

Fig 18: Seat Wiring Harness Components Location (2 Of 2)

G07894983

Courtesy of FORD MOTOR CO.

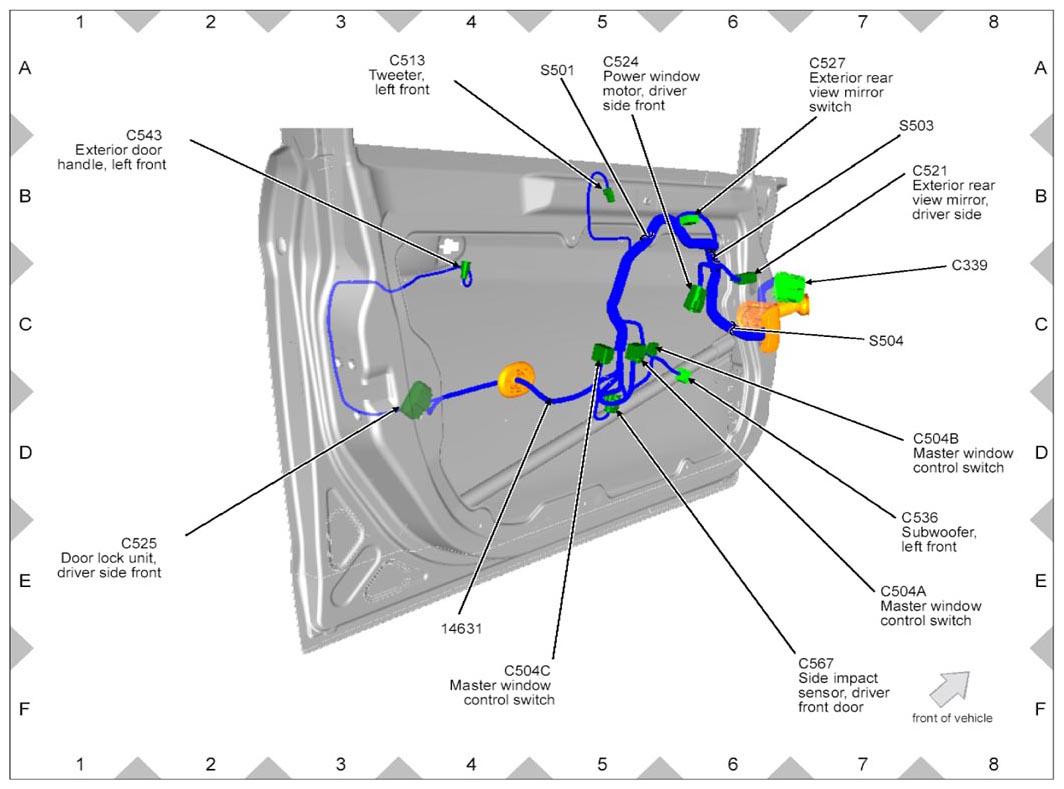

Fig 19: Door Wiring Harness Components Location (1 Of 4)

G07894984

Courtesy of FORD MOTOR CO.

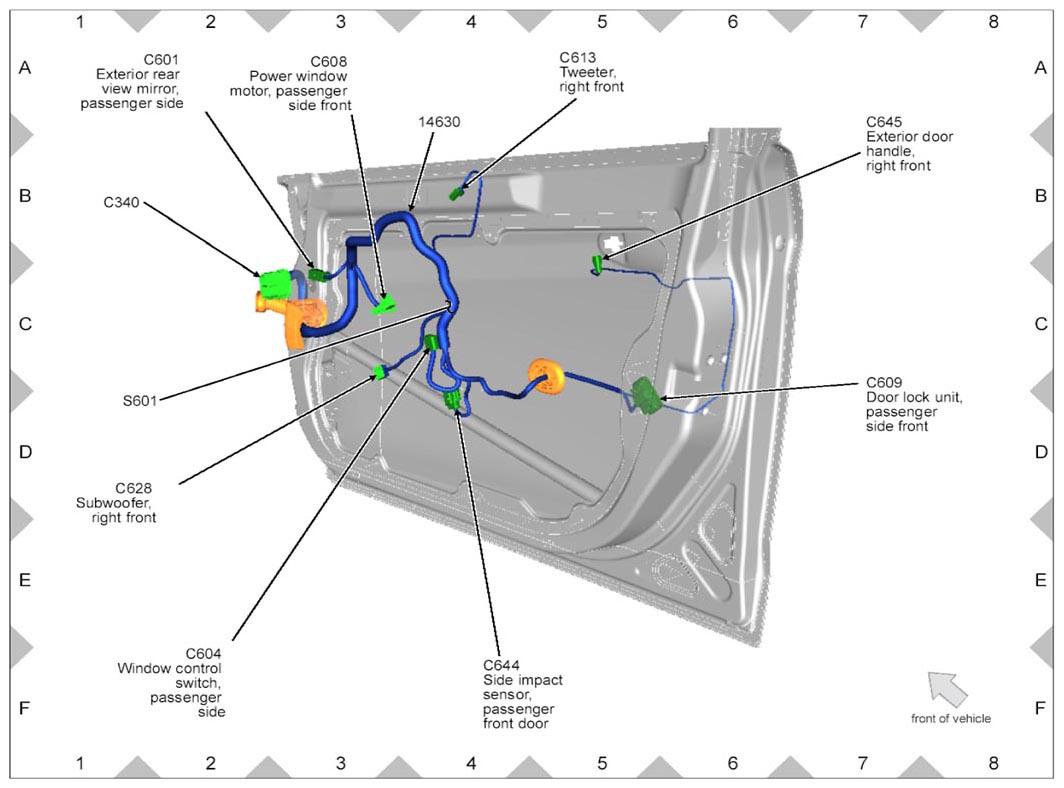

Fig 20: Door Wiring Harness Components Location (2 Of 4)

G07894985

Courtesy of FORD MOTOR CO.

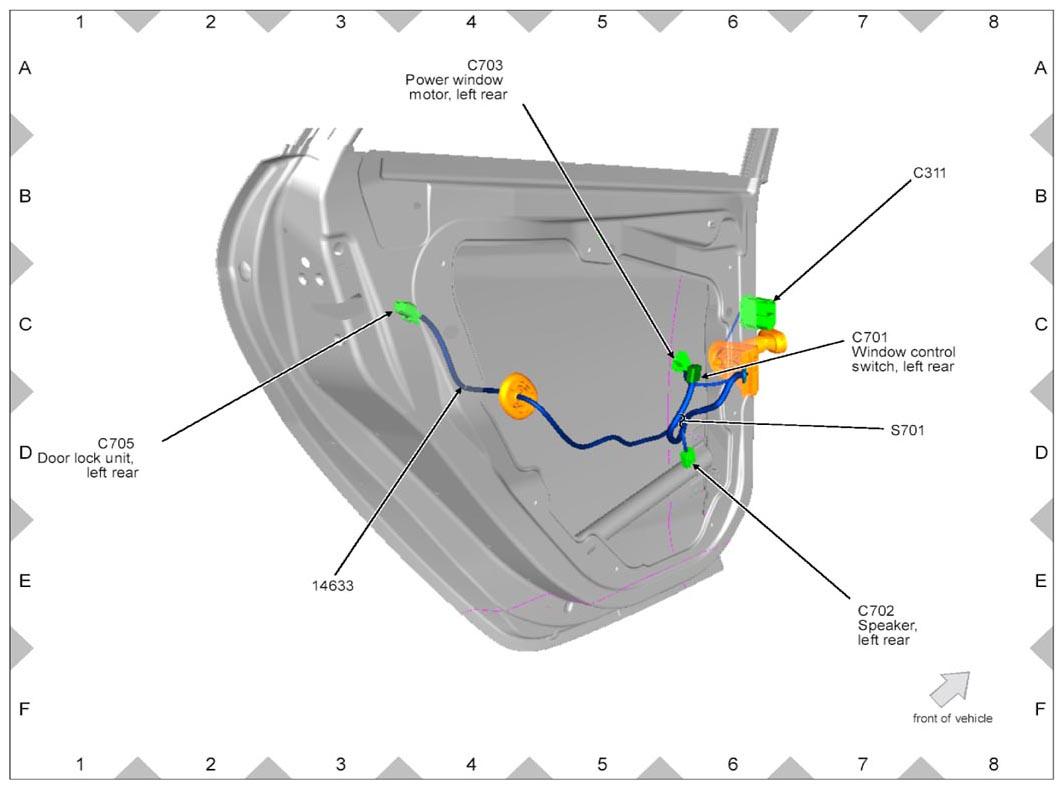

Fig 21: Door Wiring Harness Components Location (3 Of 4)

G07894986

Courtesy of FORD MOTOR CO.

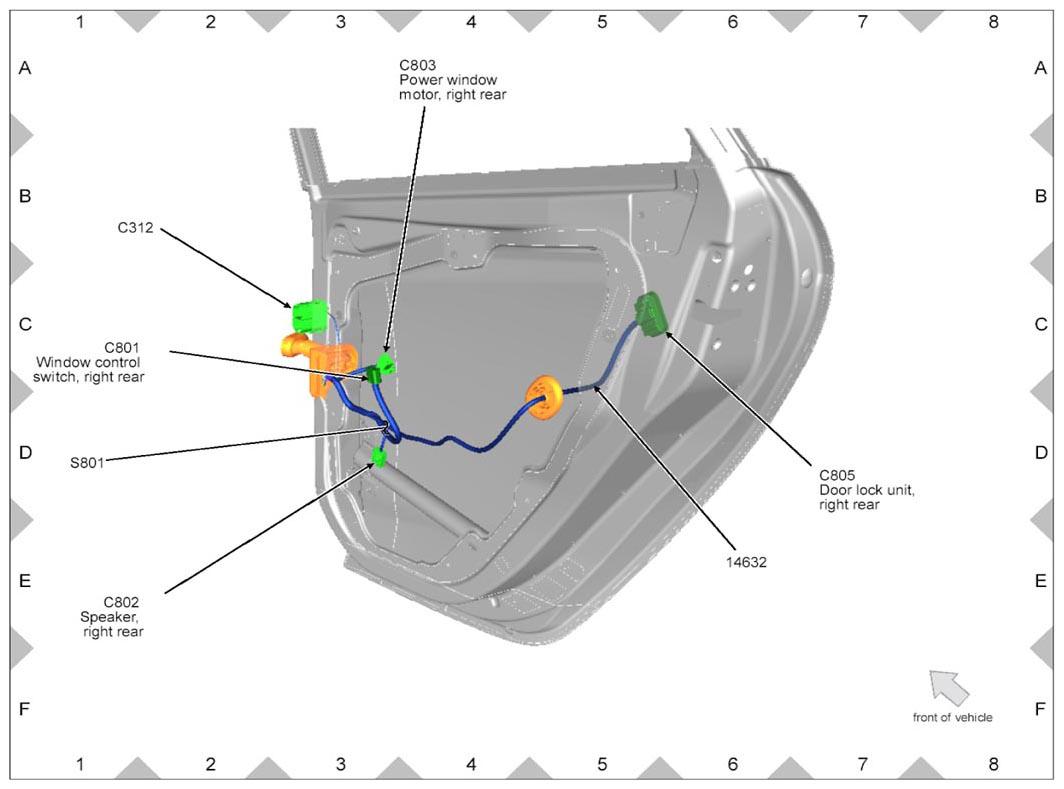

Fig 22: Door Wiring Harness Components Location (4 Of 4)

G07894987

Courtesy of FORD MOTOR CO.

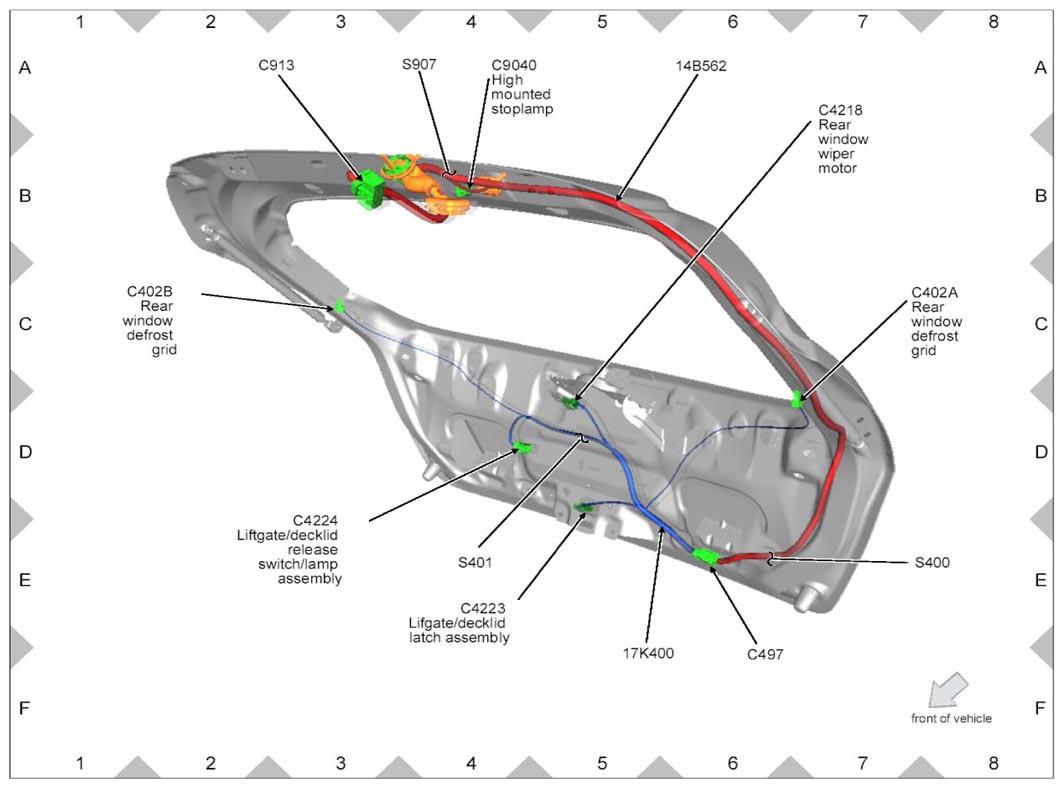

Fig 23: Liftgate Wiring Harness Components Location

G07894988

Courtesy of FORD MOTOR CO.

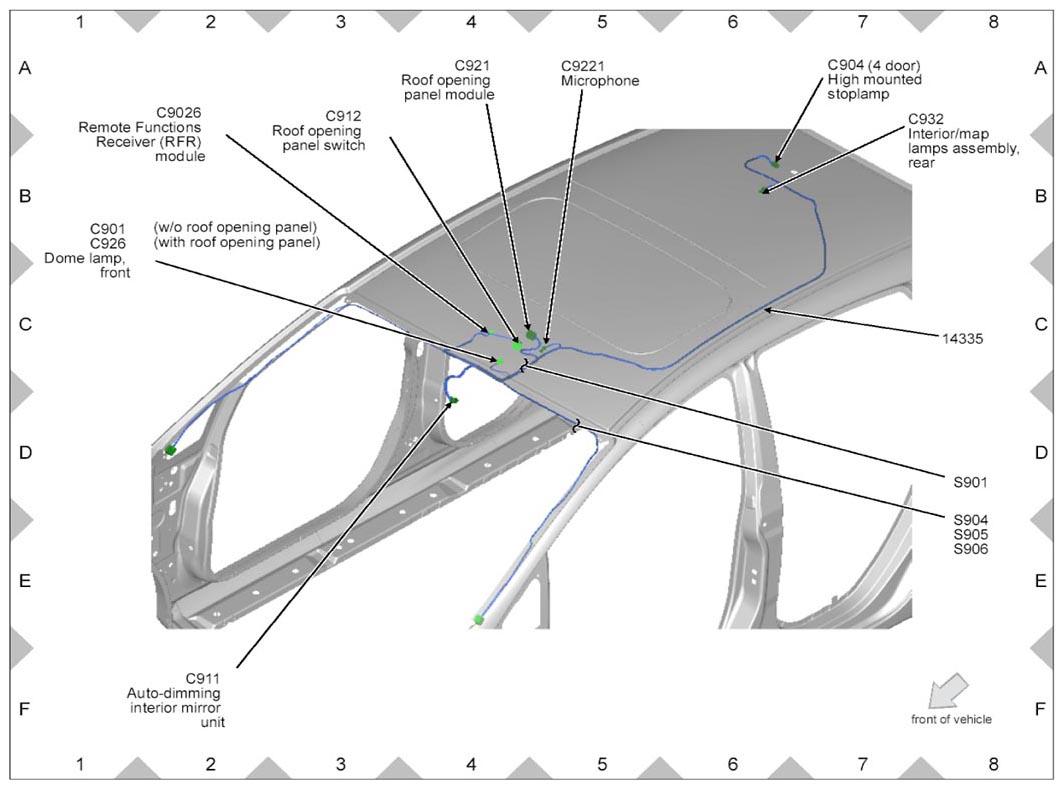

Fig 24: Headliner Wiring Harness Components Location

G07894989

Courtesy of FORD MOTOR CO.
