Transaxle Support Insulator: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the cowl assembly. For additional information, refer to FRONT END BODY PANELS .
Remove the Air Cleaner (ACL) assembly and outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Remove the PCM cover bolt and the PCM cover.

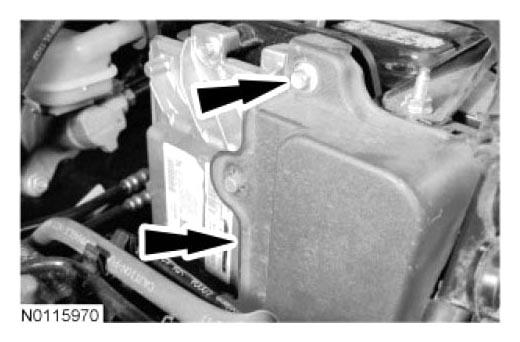

Fig 1: Locating PCM Cover And Bolt
Courtesy of FORD MOTOR CO.
Disconnect the 3 PCM electrical connectors.

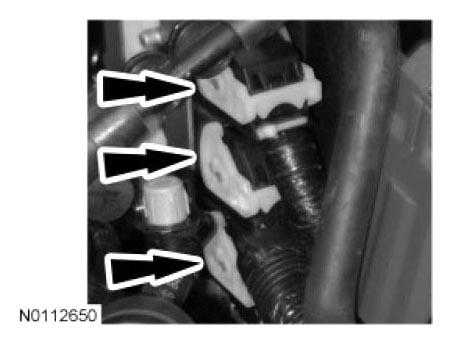

Fig 2: Locating PCM Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the 3 battery tray bolts and the battery tray.

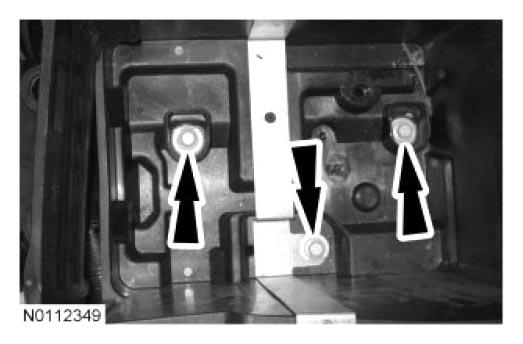

Fig 3: Locating Battery Tray Bolts
Courtesy of FORD MOTOR CO.
Using a suitable tool, detach the wiring harness from the battery tray bracket.

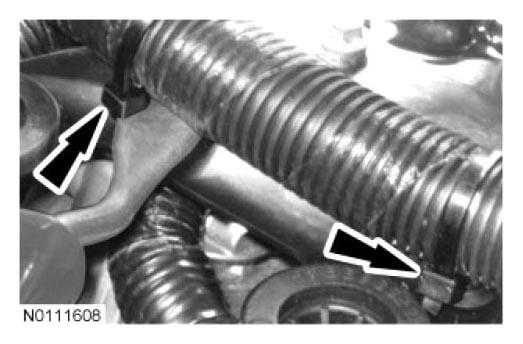

Fig 4: Locating Battery Tray Bracket Wiring Harness Tie Straps
Courtesy of FORD MOTOR CO.
Remove the 3 battery tray bracket nuts and remove the battery tray bracket.

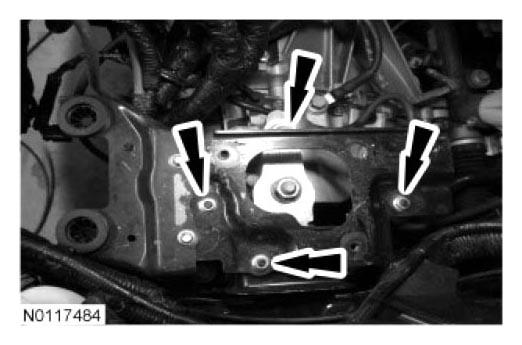

Fig 5: Locating Battery Tray Bracket And Nuts
Courtesy of FORD MOTOR CO.
Install the special tools and support the engine.

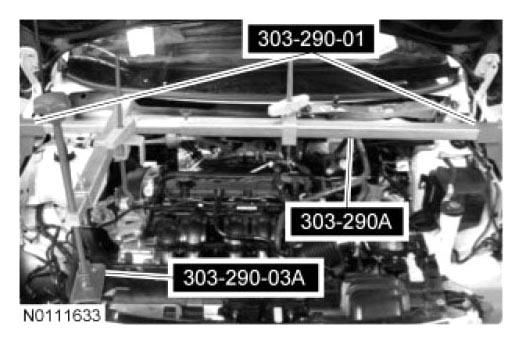

Fig 6: Supporting Engine Using Special Tools
Courtesy of FORD MOTOR CO.
Remove the 2 transaxle support insulator bolts and nuts and remove the transaxle support insulator.

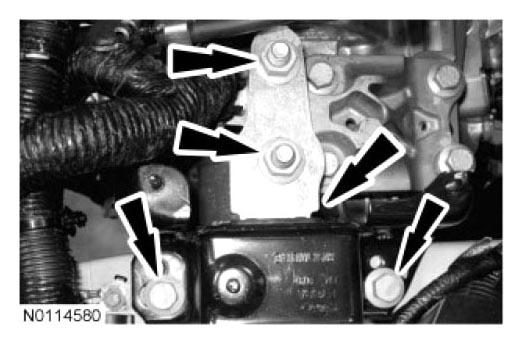

Fig 7: Locating Transaxle Support Insulator Bolts And Nuts

Courtesy of FORD MOTOR CO.
