Backing Plate: Service and Repair

Brake Backing Plate

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

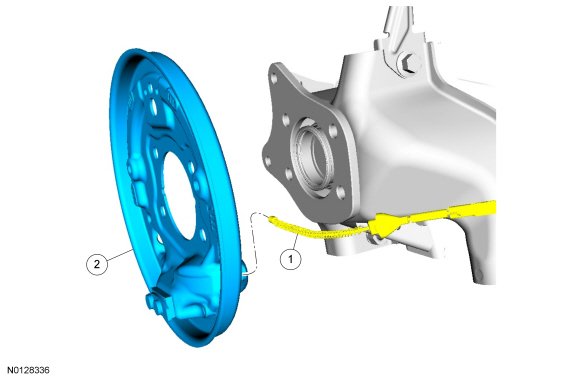

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake shoes. REFER to Brake Shoes .

2. Remove the wheel cylinder. REFER to Wheel Cylinder .

3.





4. Remove the wheel bearing and wheel hub. REFER to Wheel Bearing and Wheel Hub .

- Remove the backing plate.

Installation

1. To install, reverse the removal procedure.
