Air Inlet Duct

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

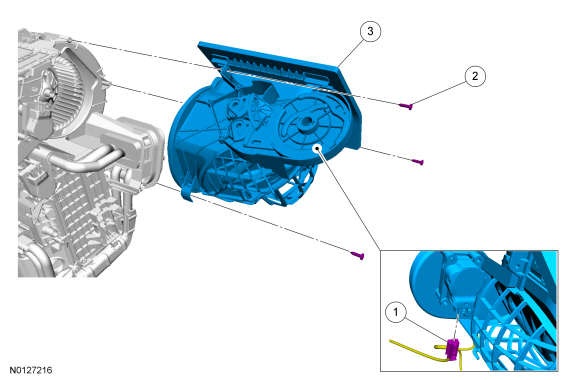

Exploded View









Removal

1. Remove the BCM (Body Control Module). REFER to Body Control Module (BCM) .

2. Disconnect the air inlet mode door actuator electrical connector, remove the 3 air inlet duct screws and remove the air inlet duct.





Installation

1. To install, reverse the removal procedure.
