Connectors


C100-C210:

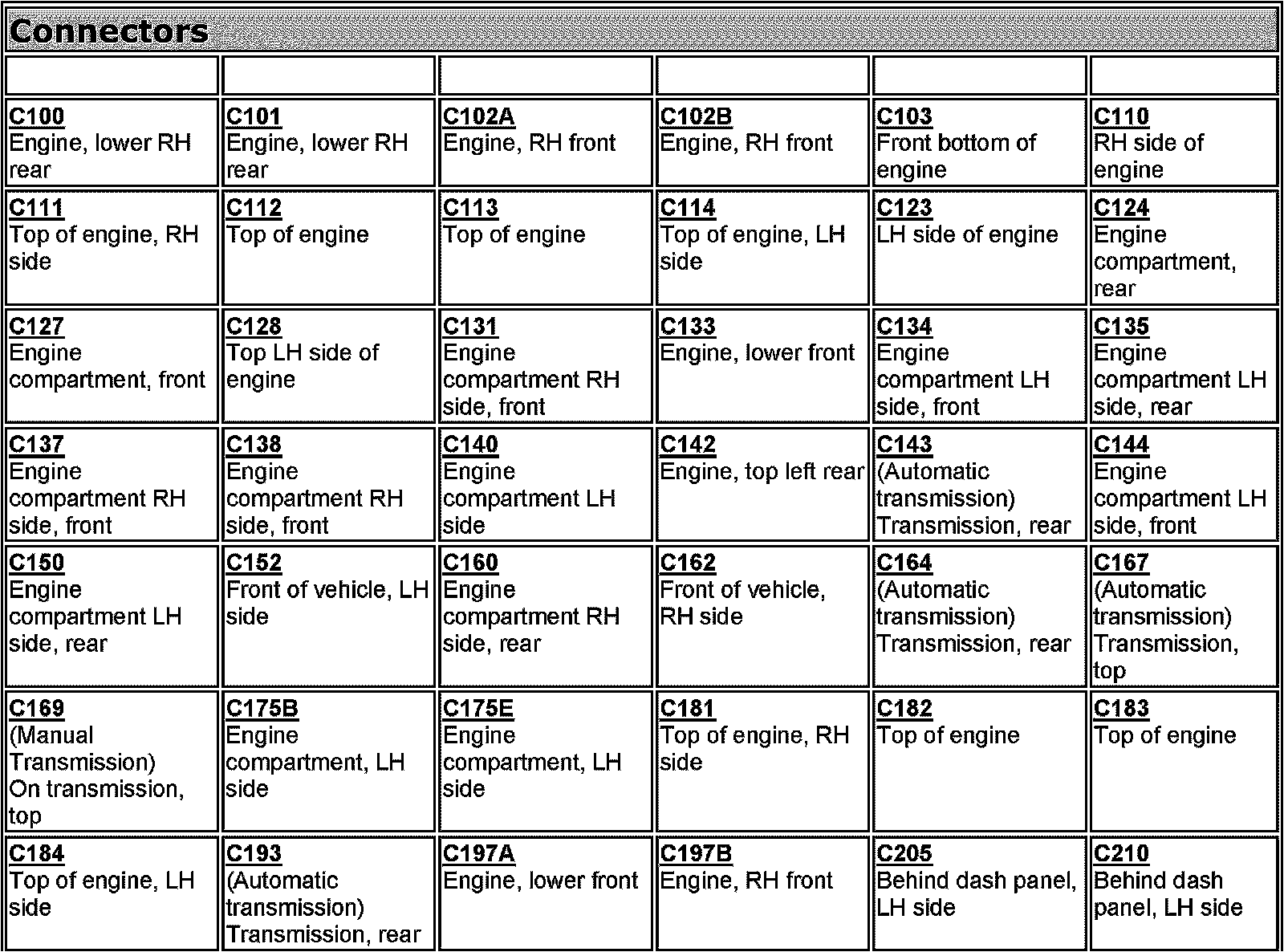

C100-C210:

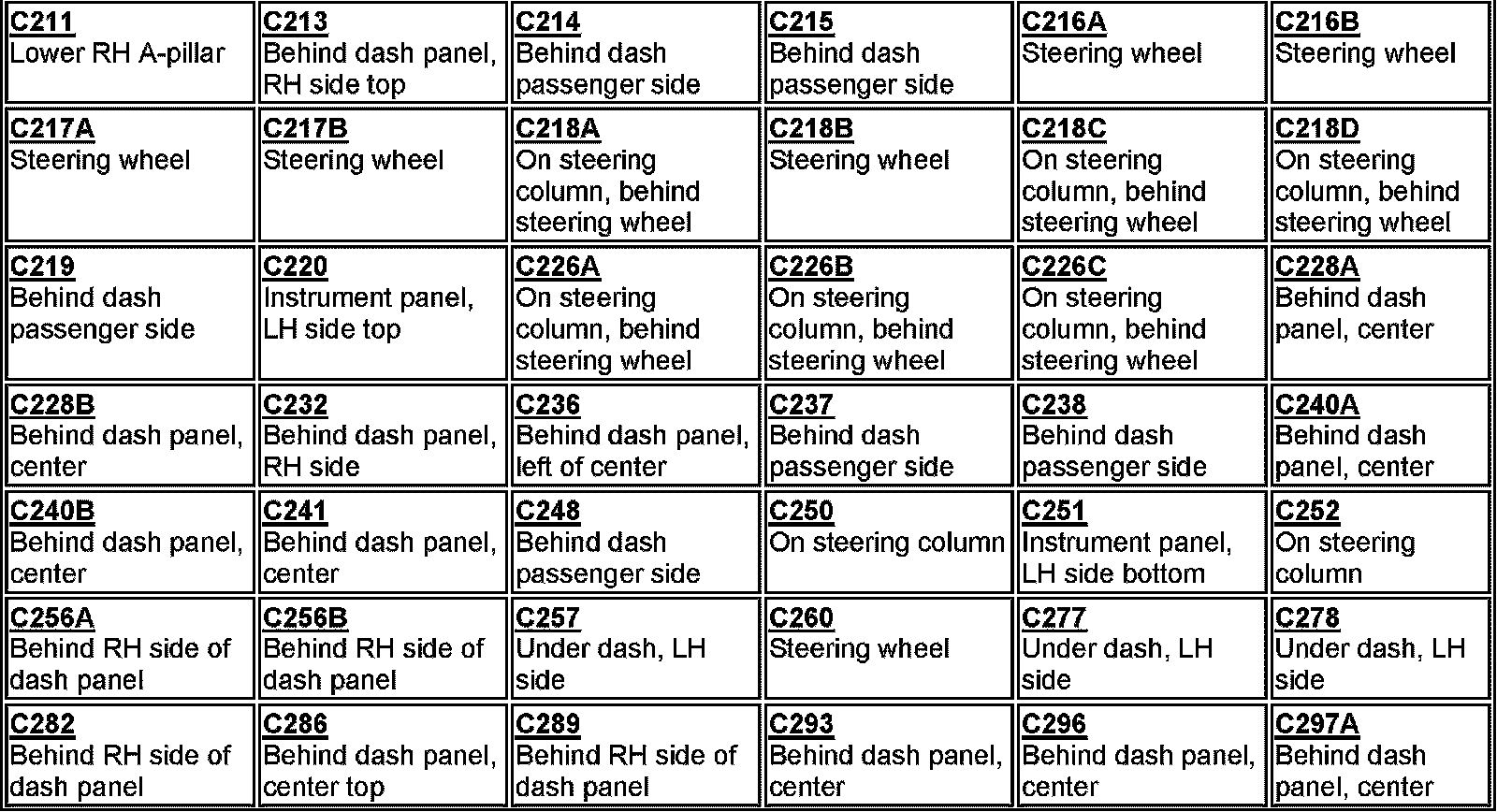

C211-C297A:

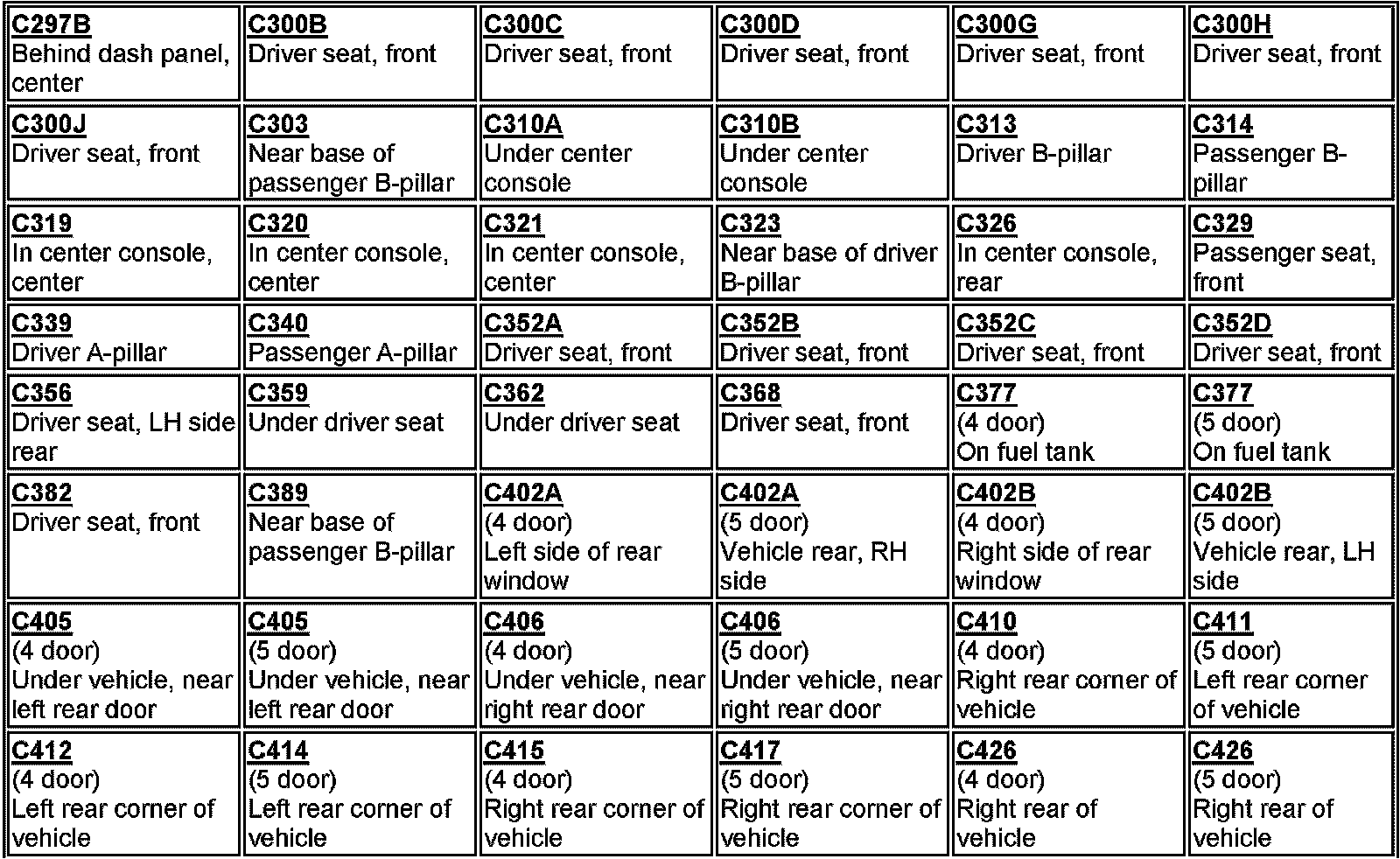

C297B-C426:

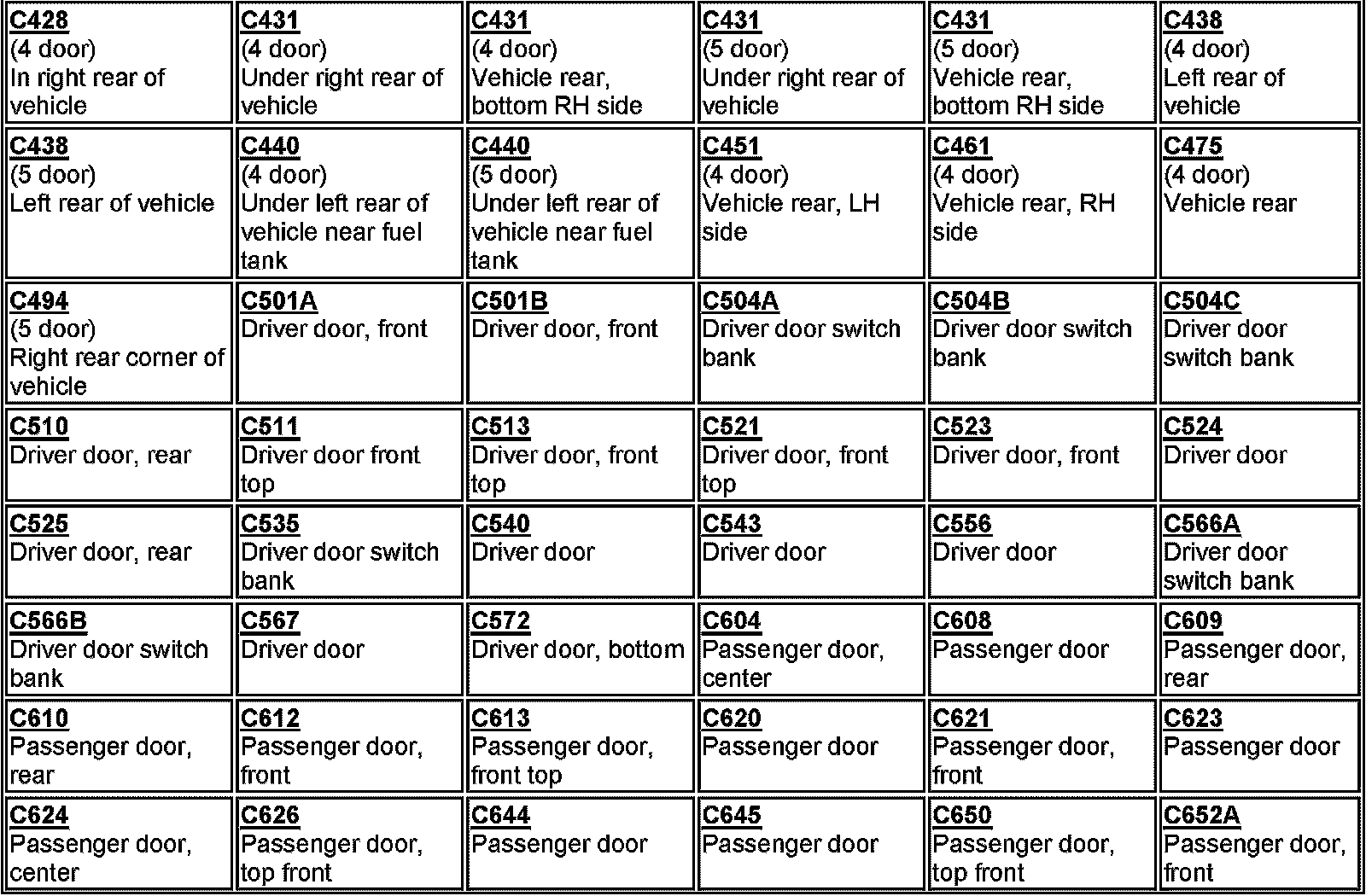

C428-C652A:

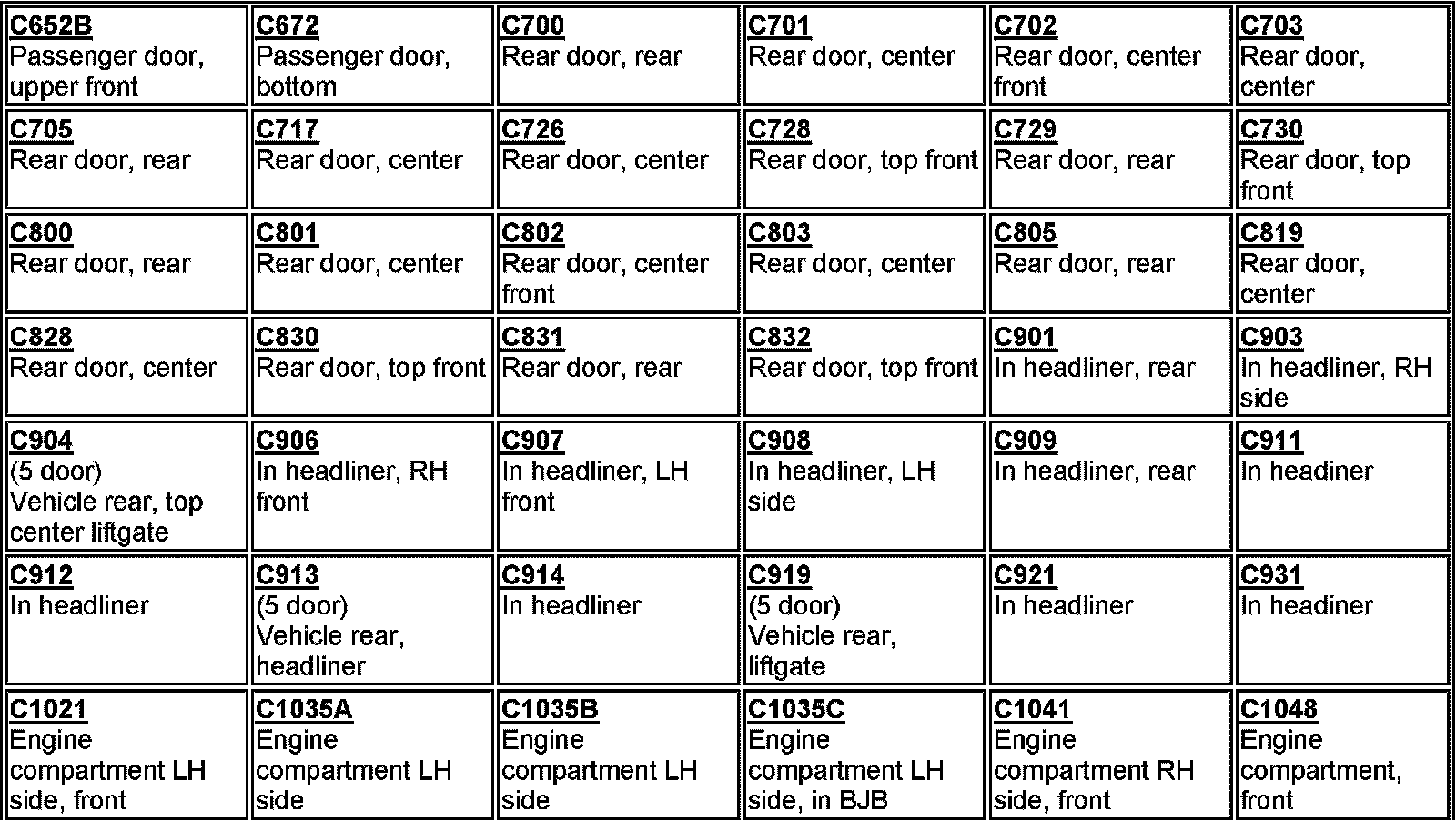

C652B-C1048:

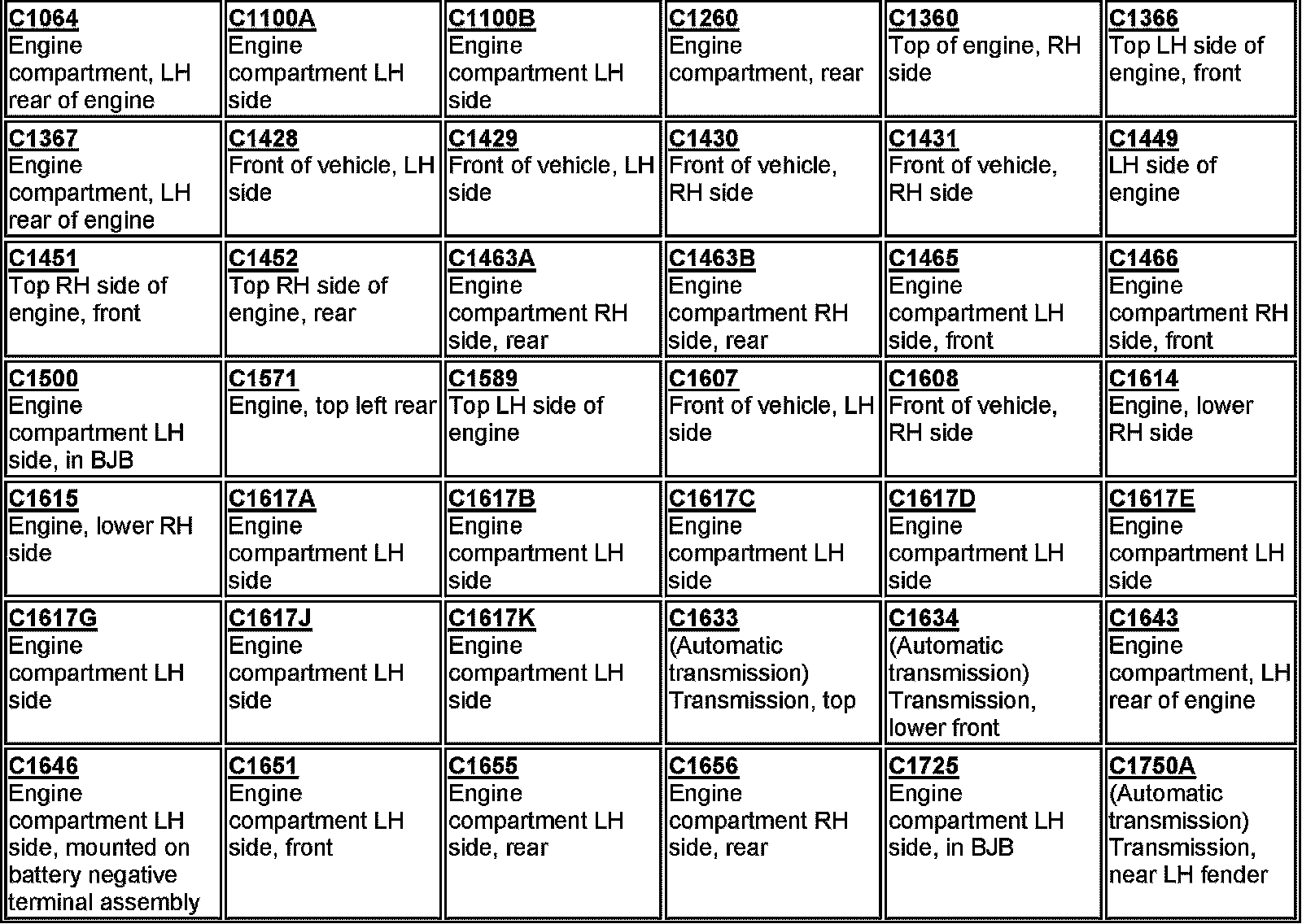

C1064-C1750A:

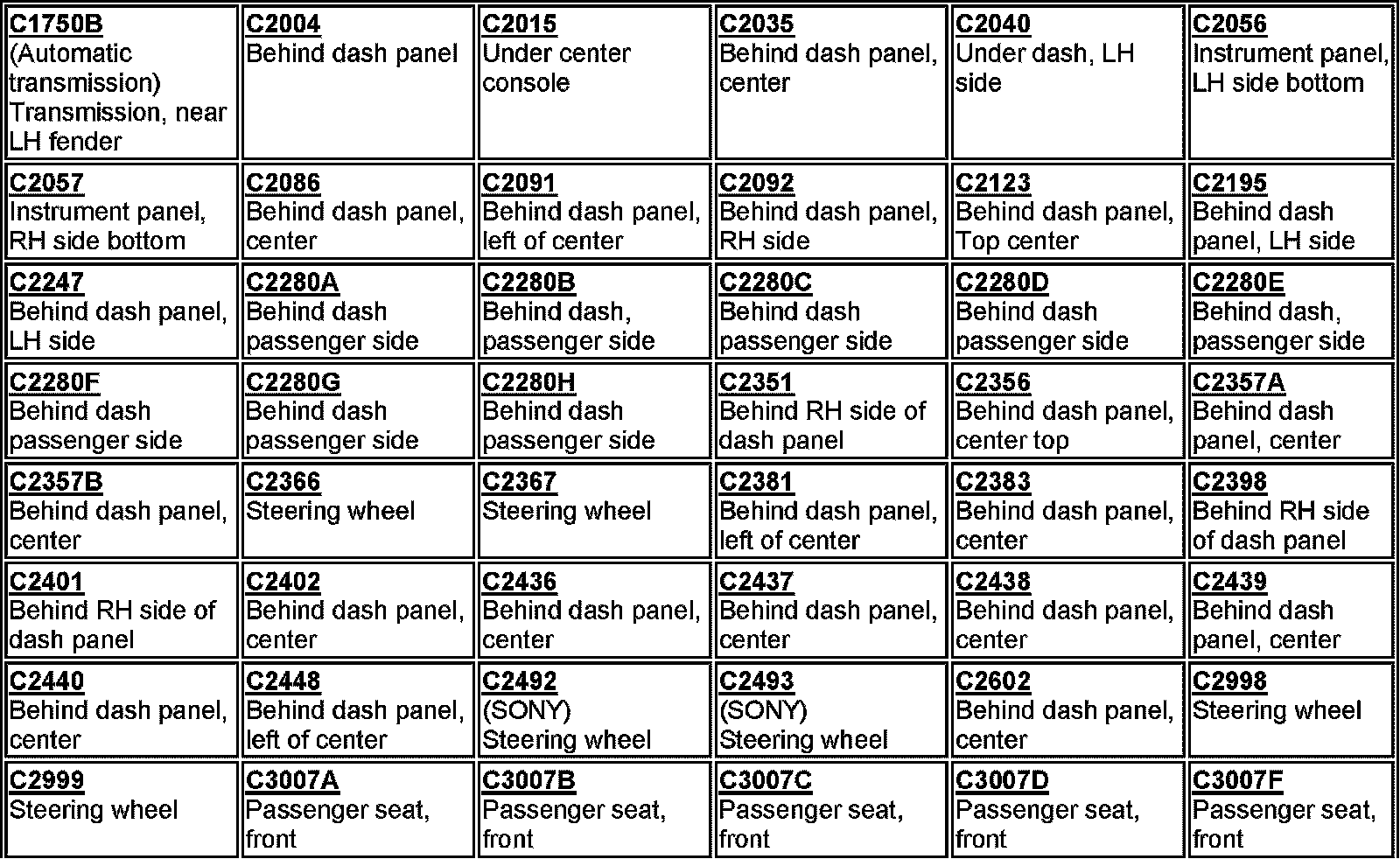

C1750B-C3007F:

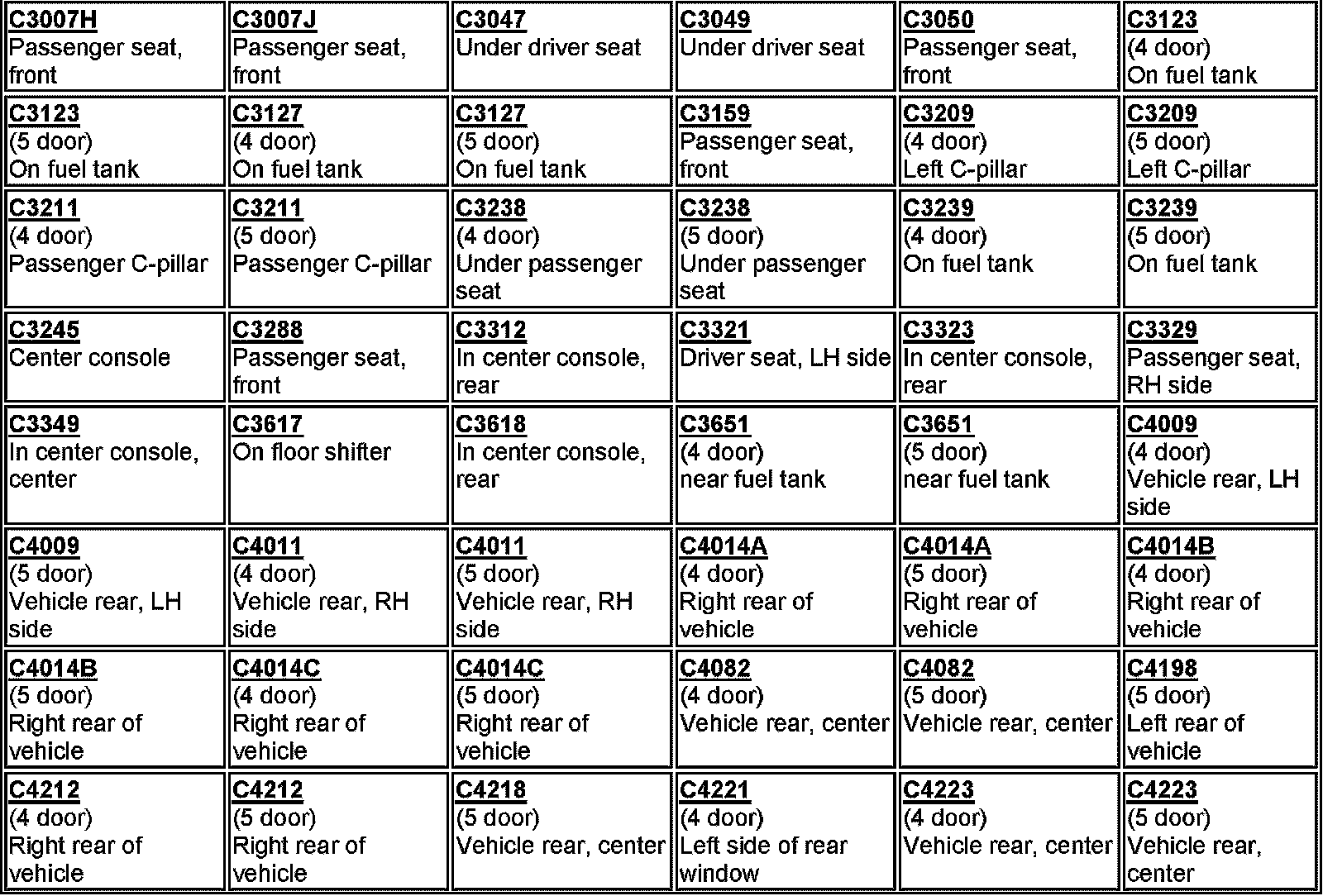

C3007H-C4223:

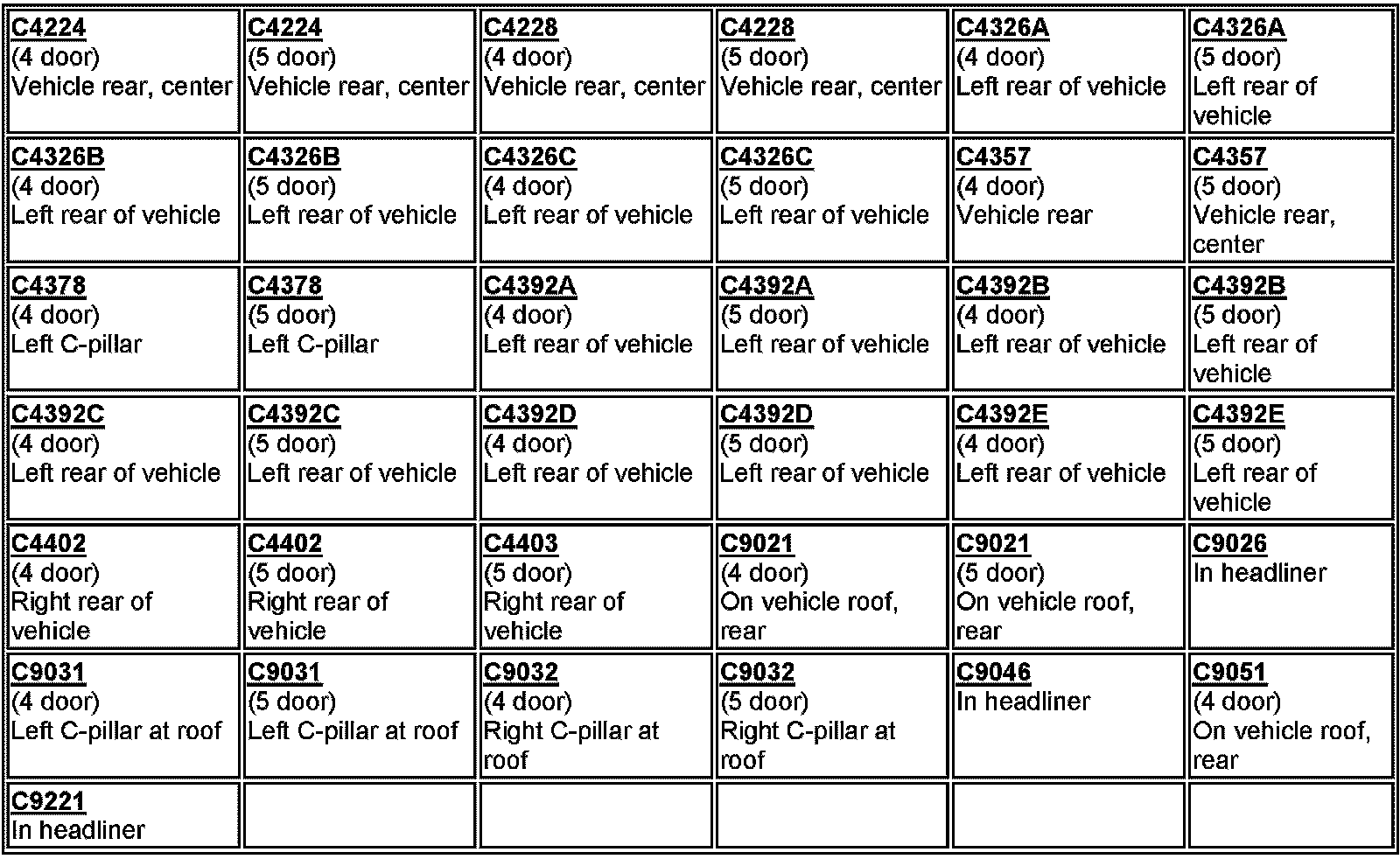

C4224-C9221:
