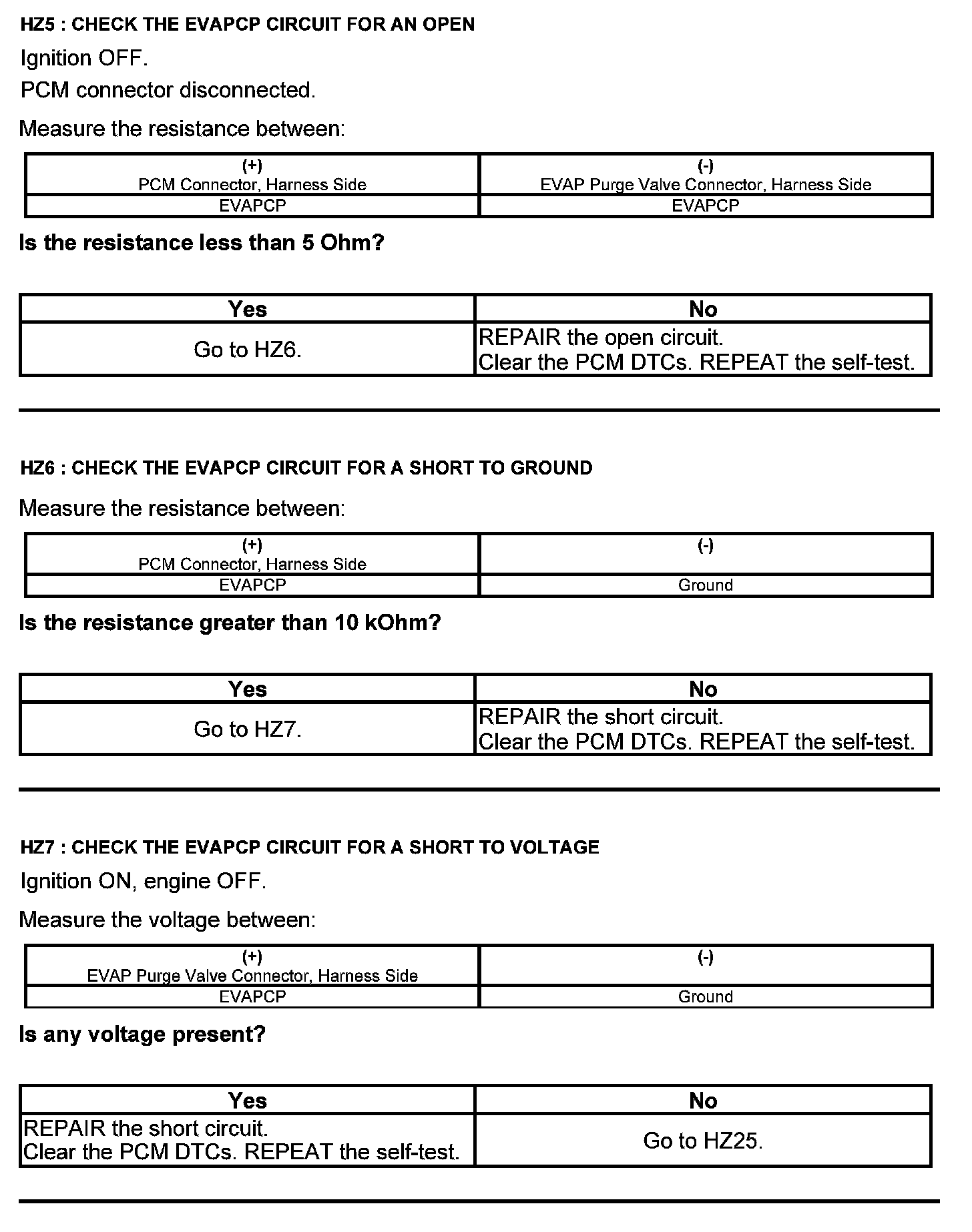

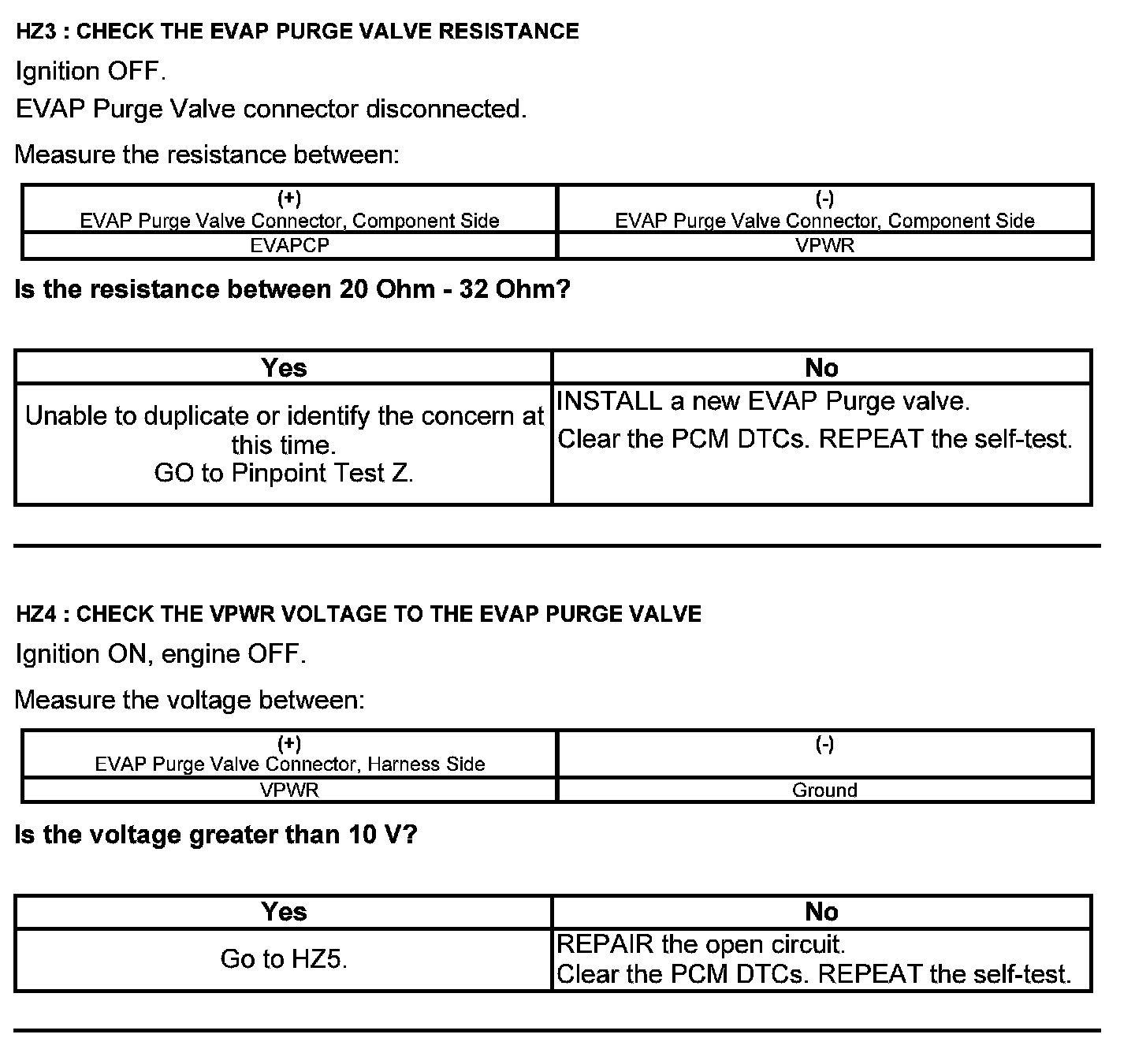

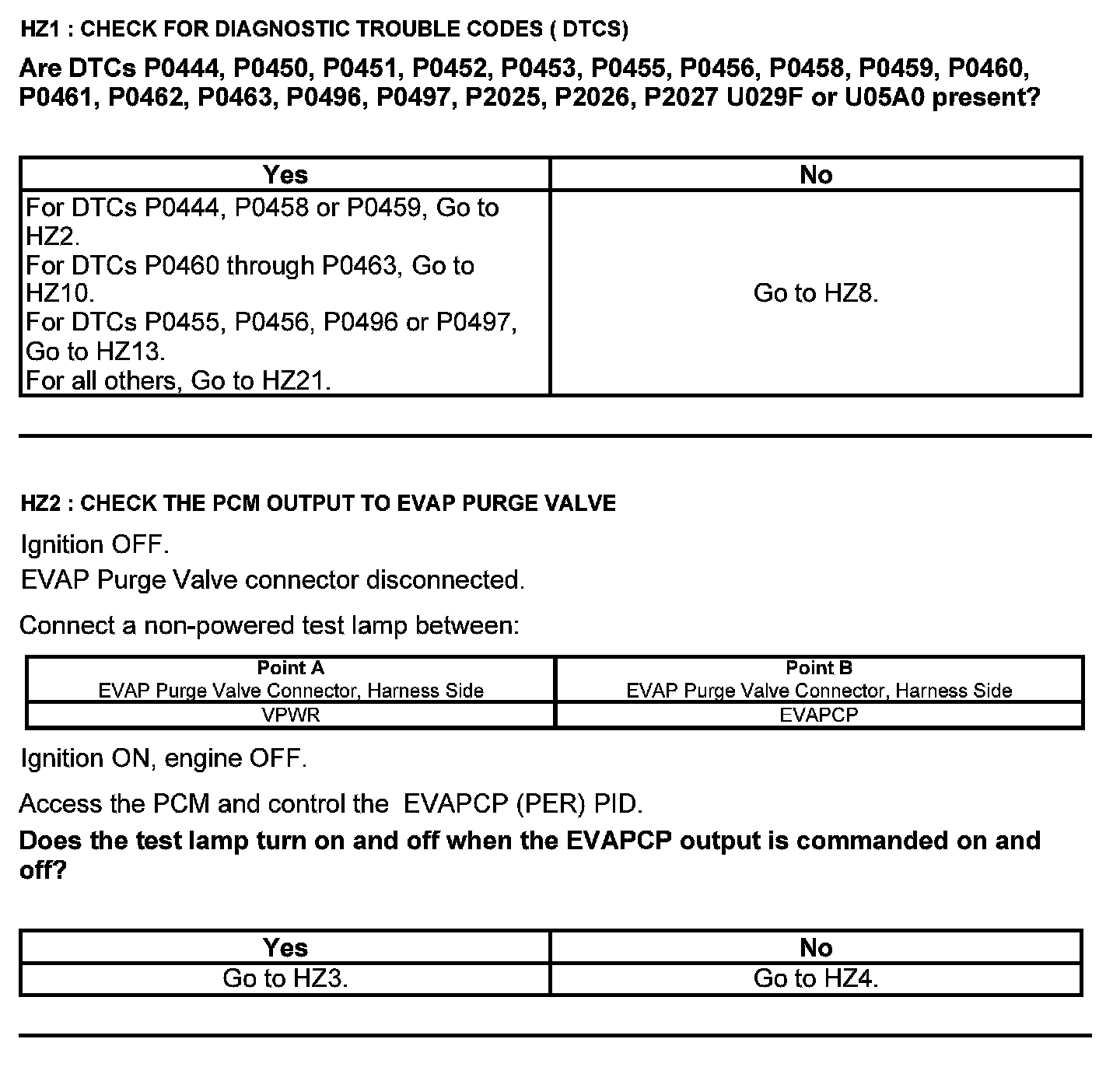

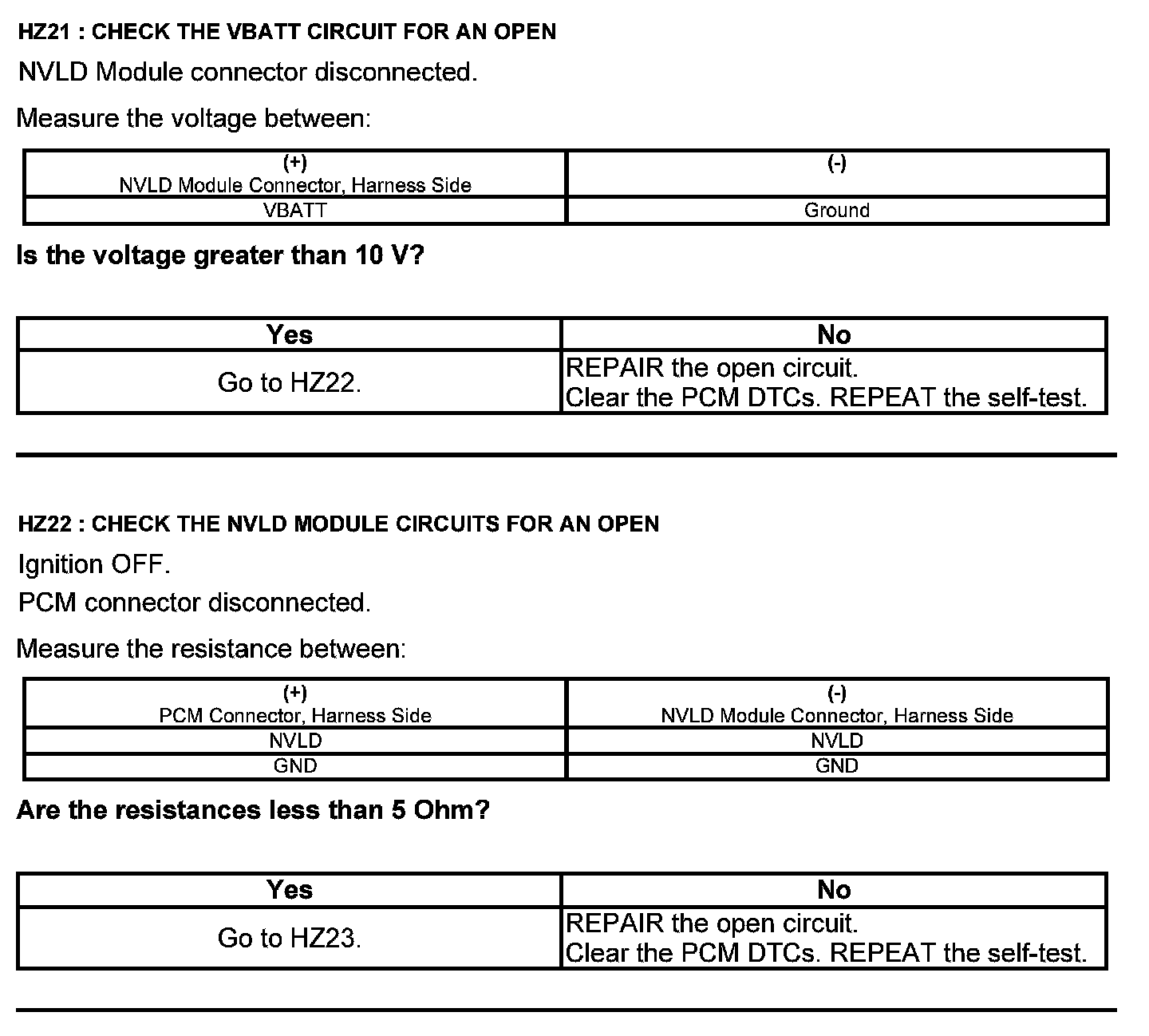

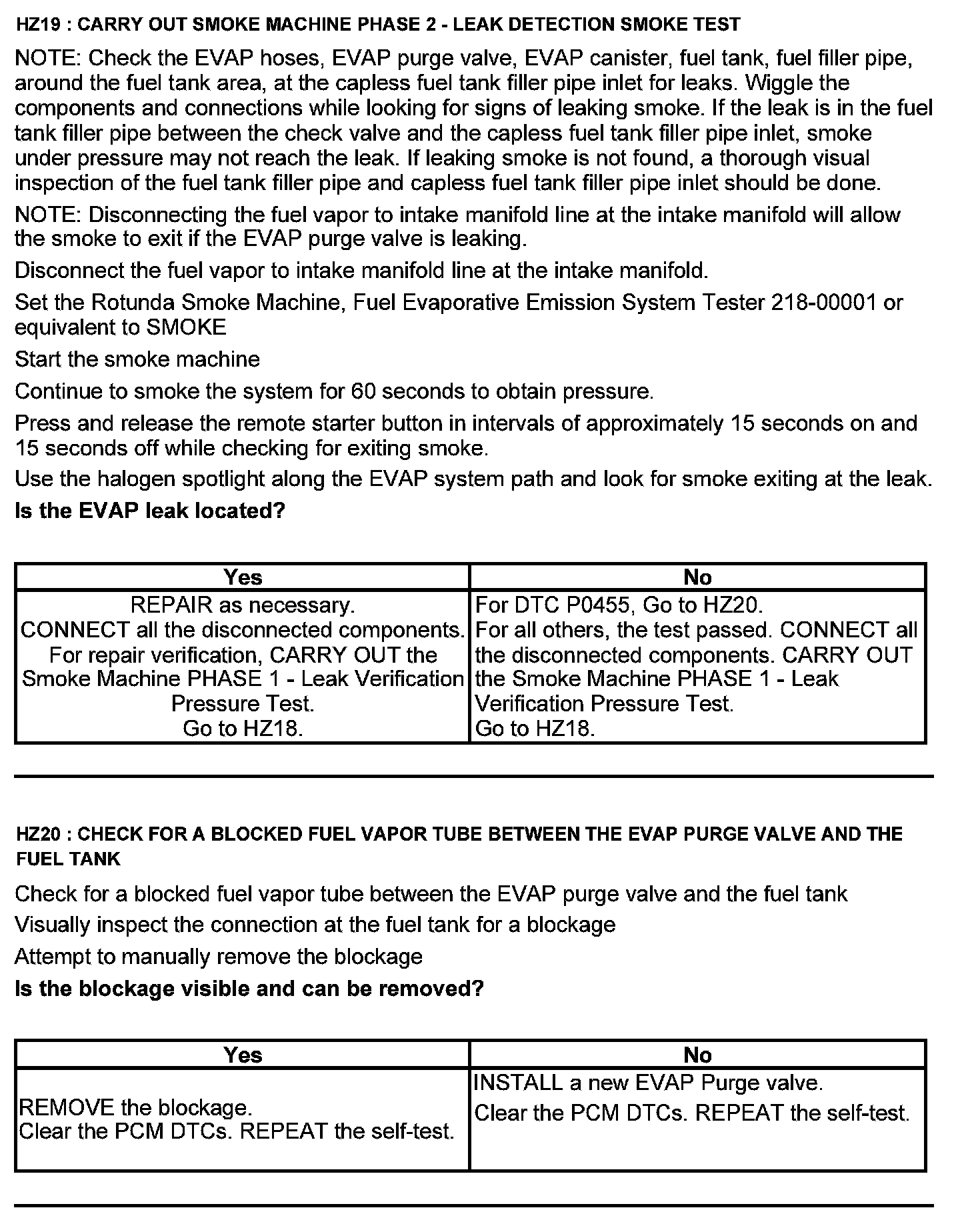

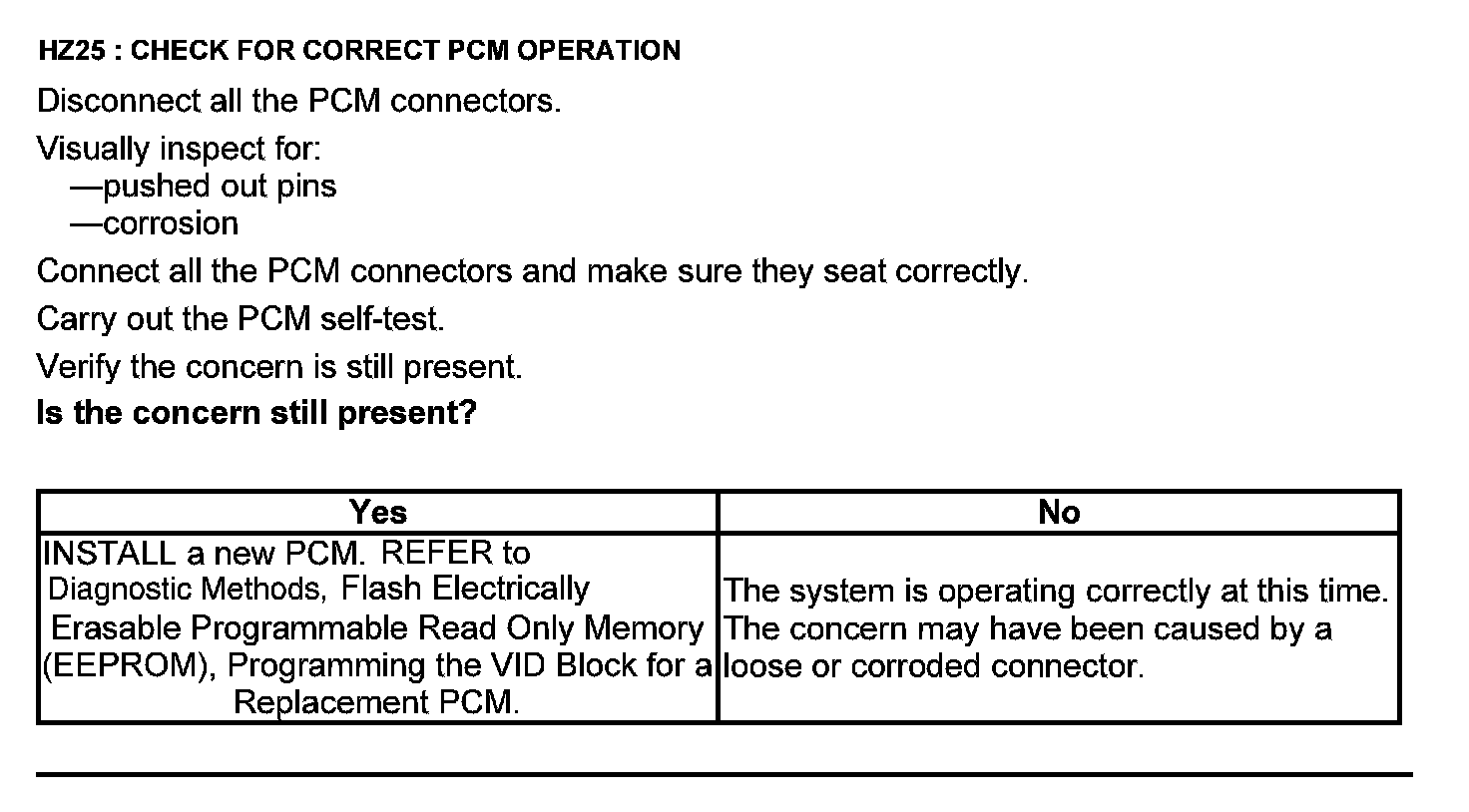

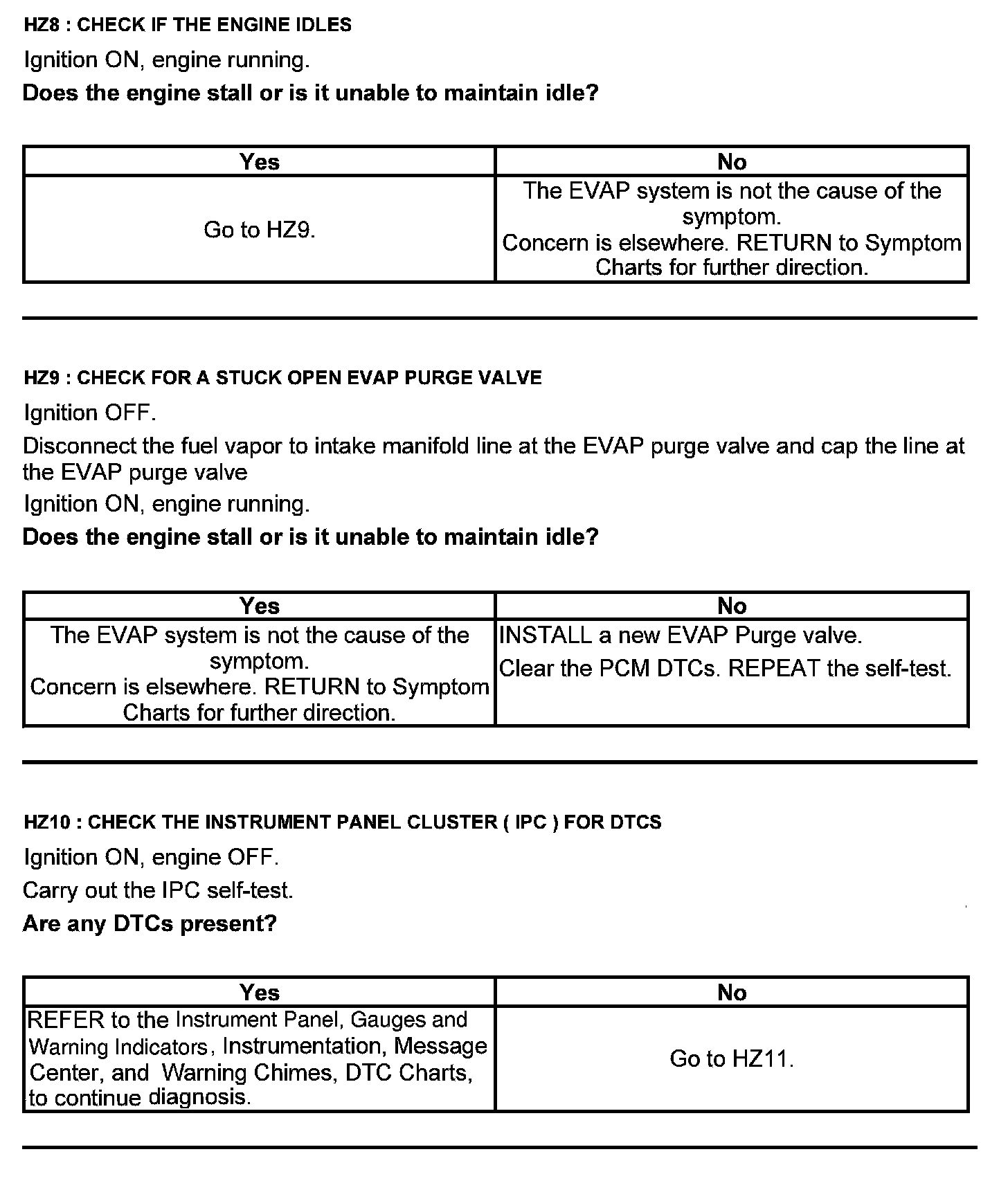

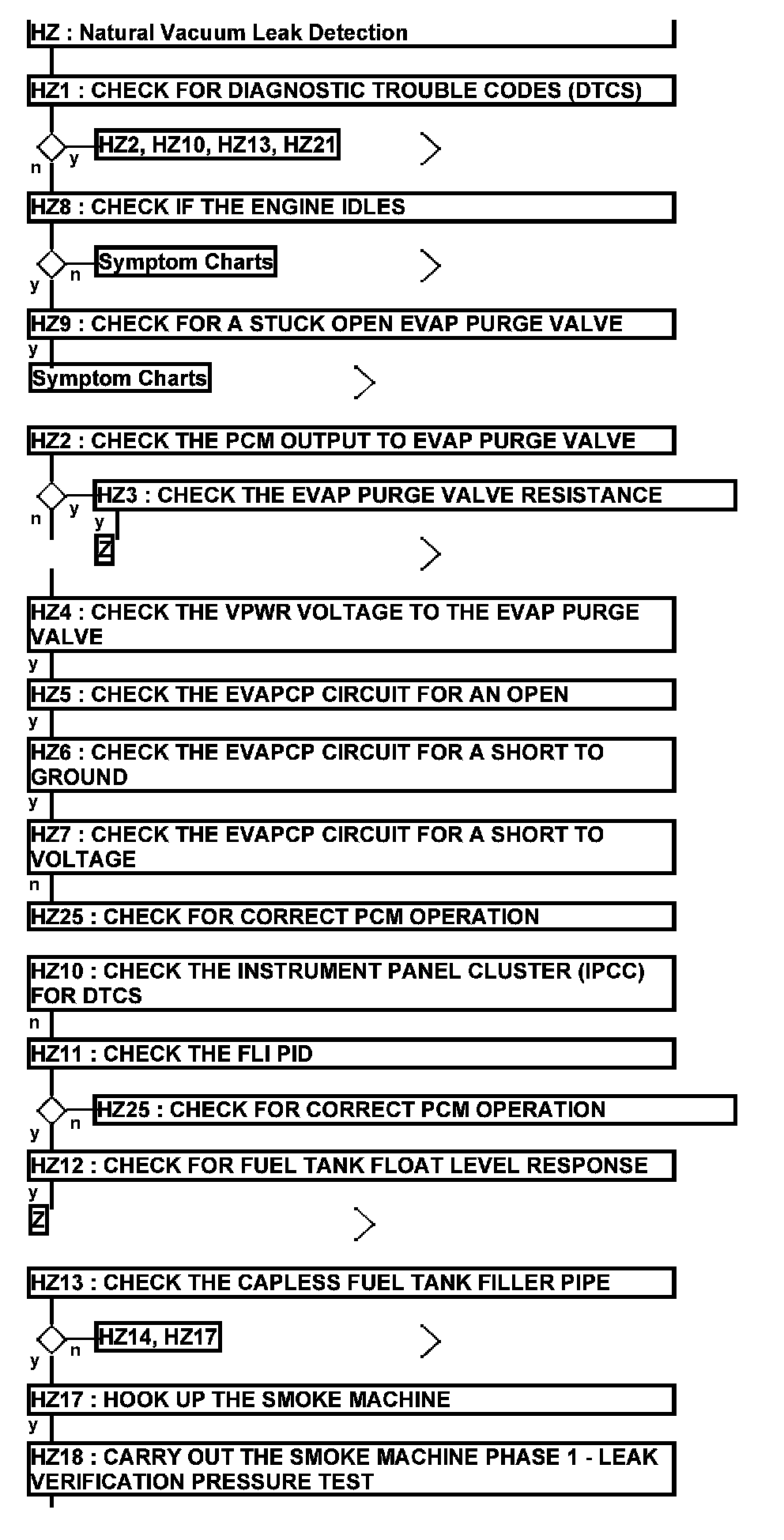

Test HZ: Natural Vacuum Leak Detection



Natural Vacuum Leak Detection






















EVAP Purge Valve Connector





Harness Side

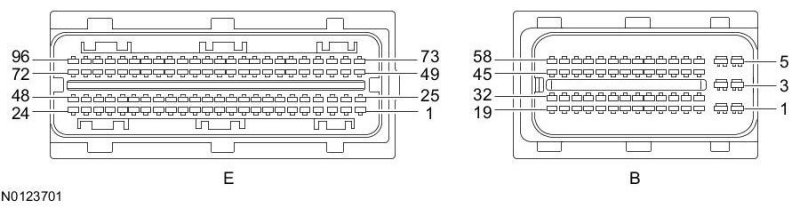

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
