Automatic Transmission - DPS6




Automatic Transmission - DPS6

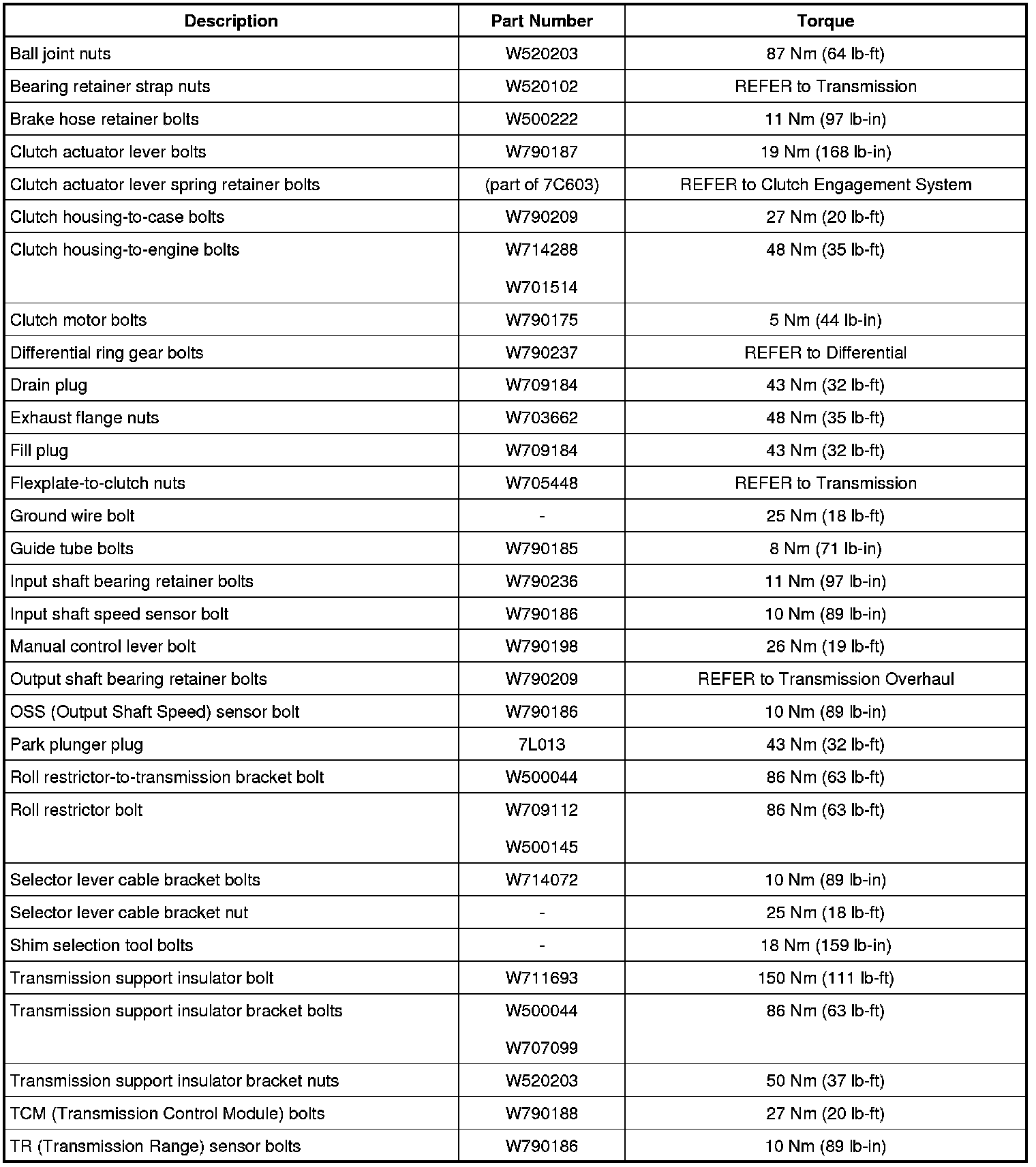

Torque Specifications

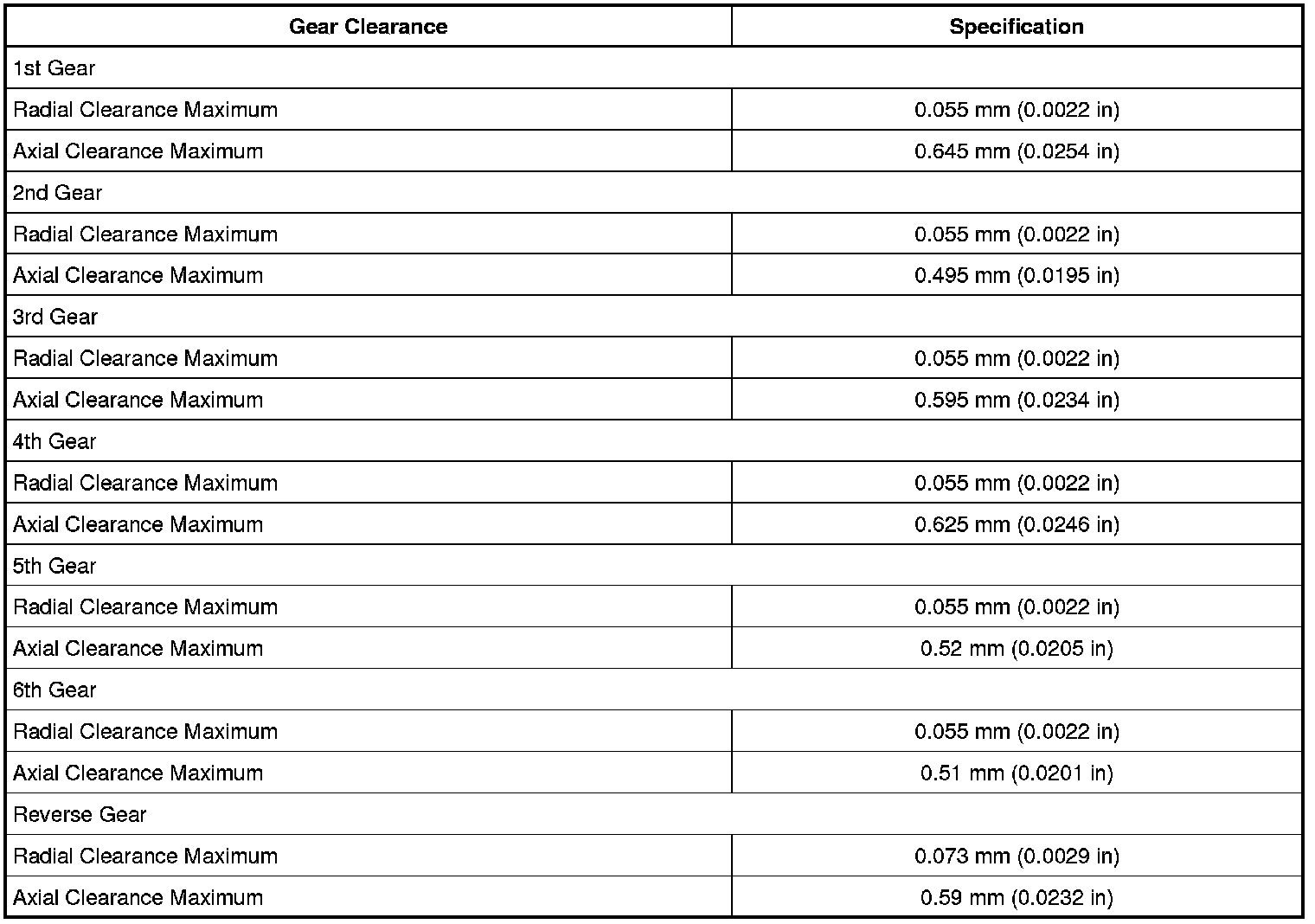

General Specifications

General Specifications





a Maximum after clutch reset

b Maximum after clutch reset

General Specifications





General Specifications





General Specifications

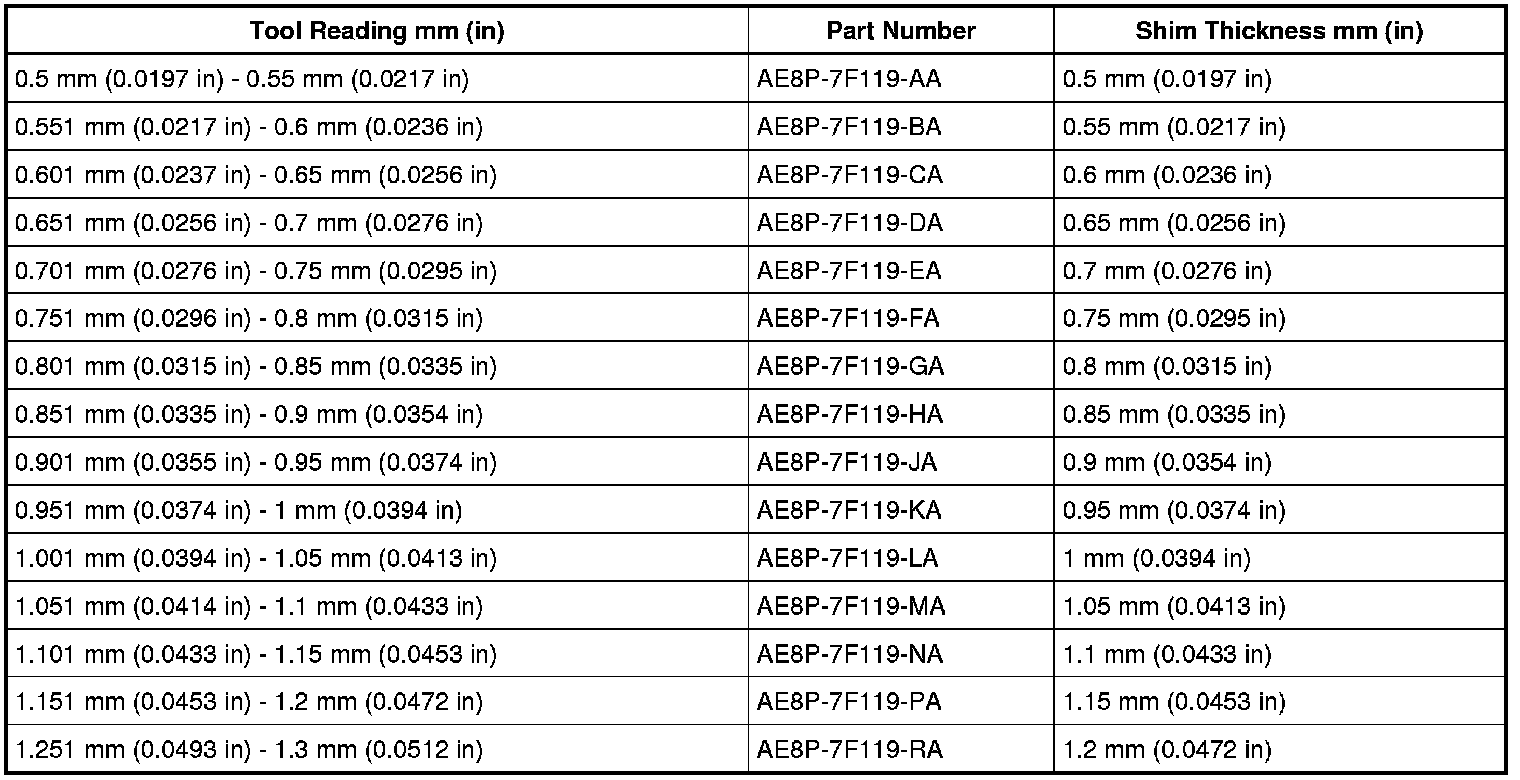

Differential Shim Selection Chart





Gear Ratio Chart

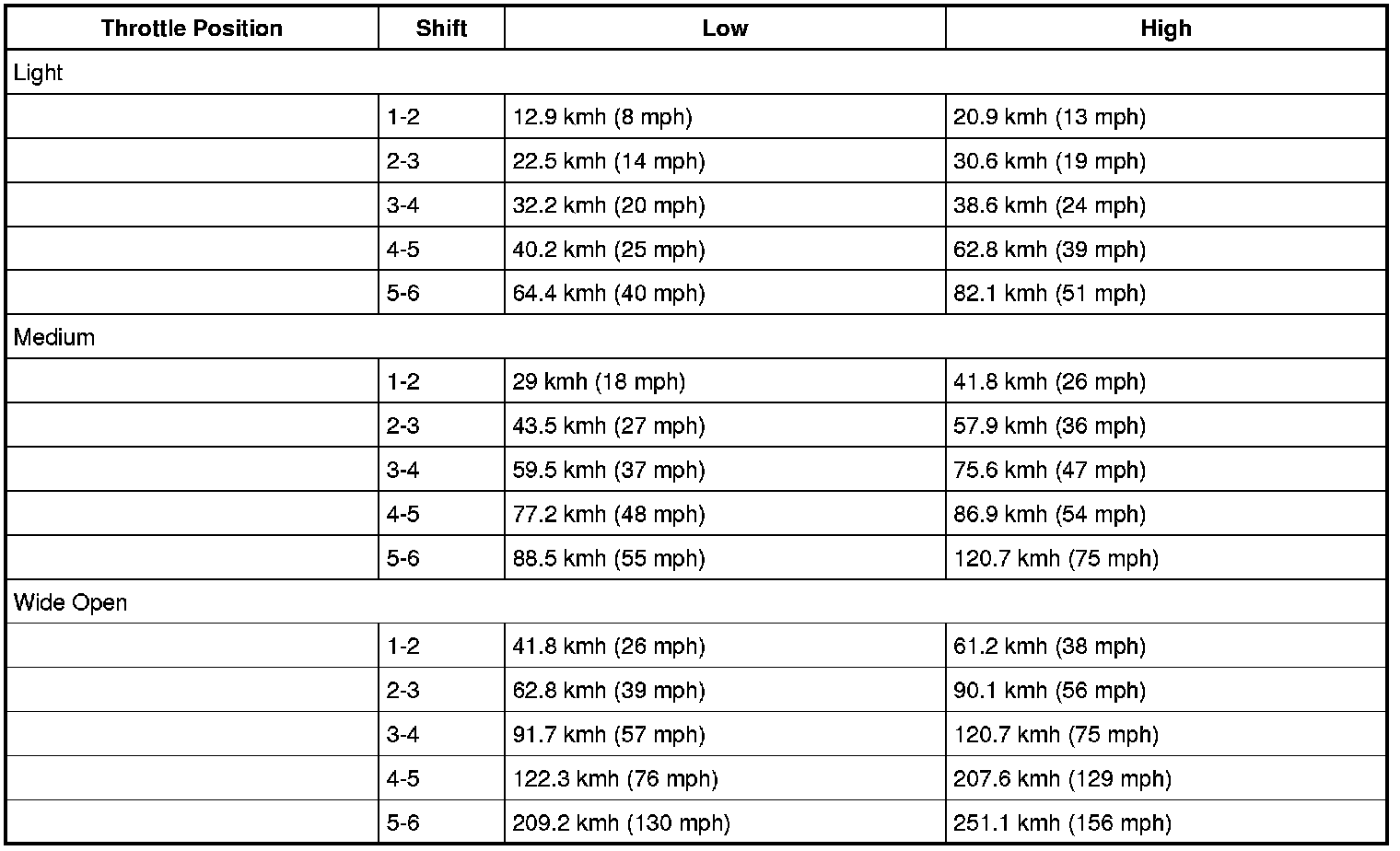

Shift Speeds Chart
