Symptom Related Diagnostic Procedures




Symptom Chart(s)

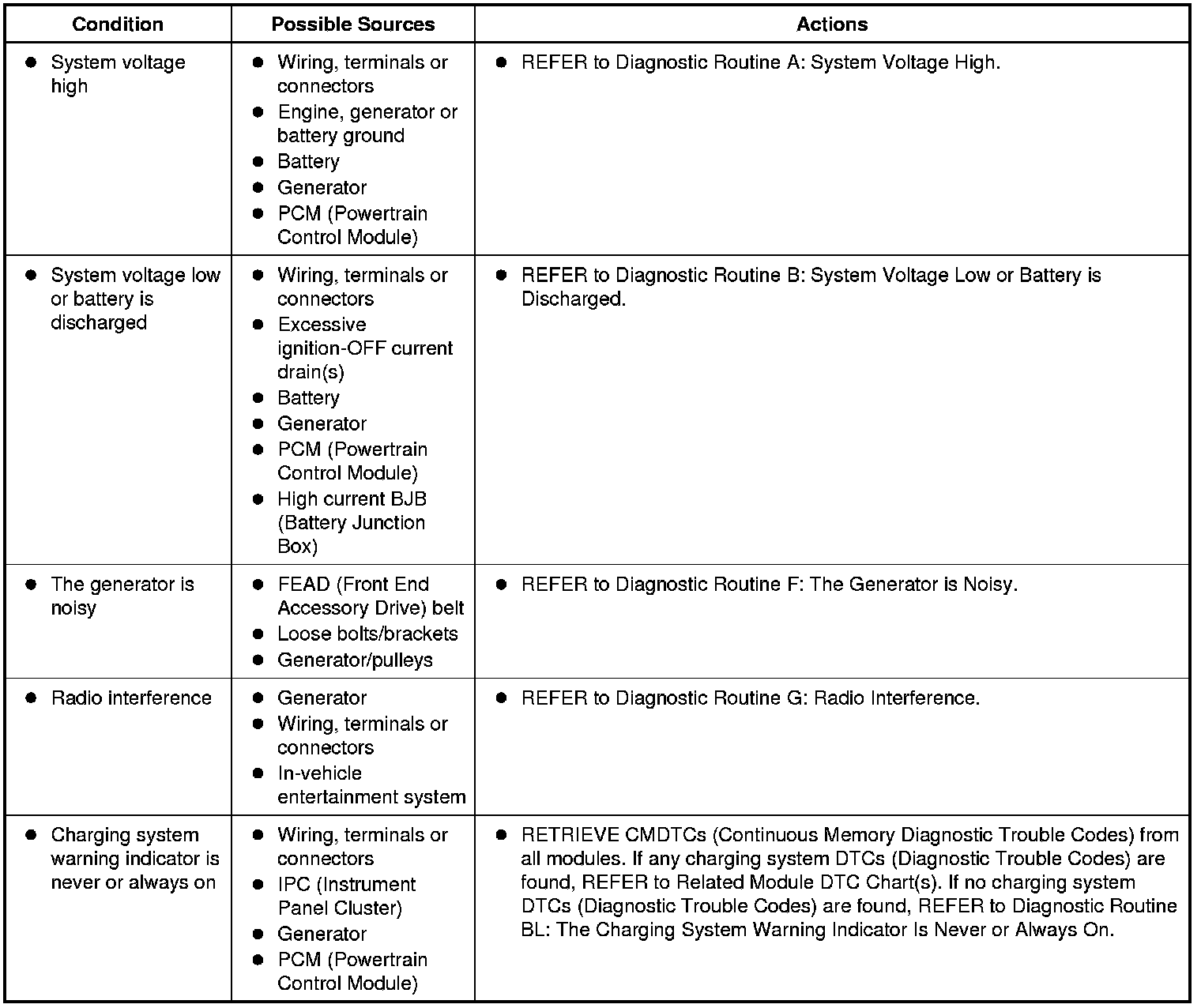

Symptom Chart: Charging System

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information regarding Ford-specific diagnostic practices.

Symptom Chart
