Rain Sensor: Service and Repair

Rain Sensor

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

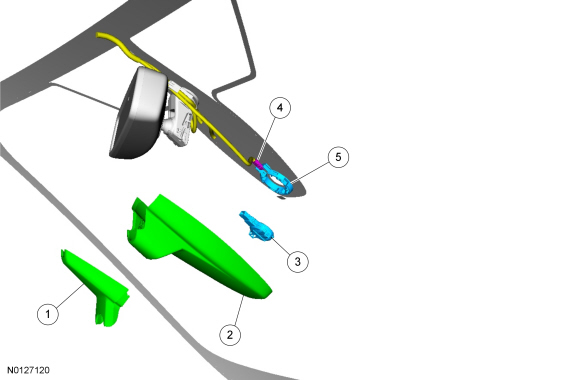

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

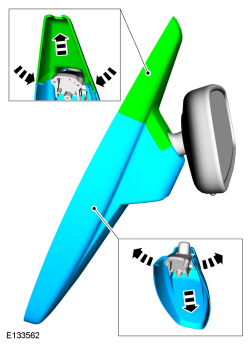

1.

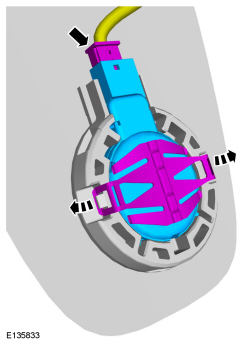

2.





Installation

1. NOTICE: Make sure that the windshield glass is clean and free of foreign material.

NOTICE: Inspect the silicone gel pad for damage. If damaged, install a new silicone gel pad.

To install, reverse the removal procedure.
