Entertainment System Control Panel: Service and Repair

Video Cable









Removal and Installation

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM)- Fusion or Audio Control Module (ACM)- MKZ .

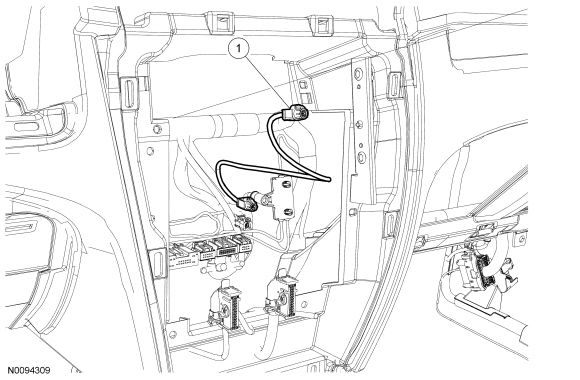

2. Remove the video cable.

3. To install, reverse the removal procedure.
- Secure the video cable using tape or zip-ties, as necessary.
