Connector Locations

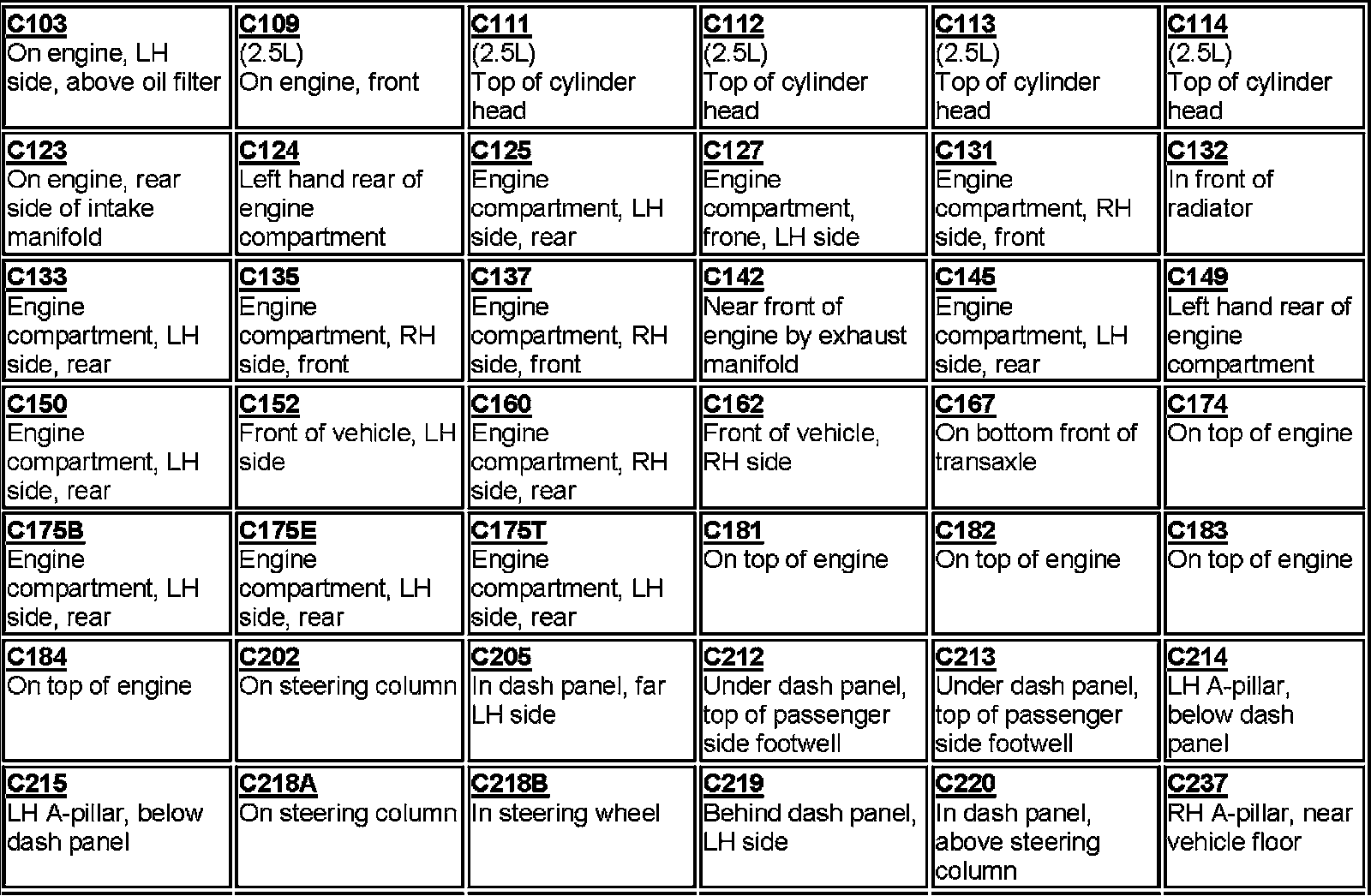

C103-C237:

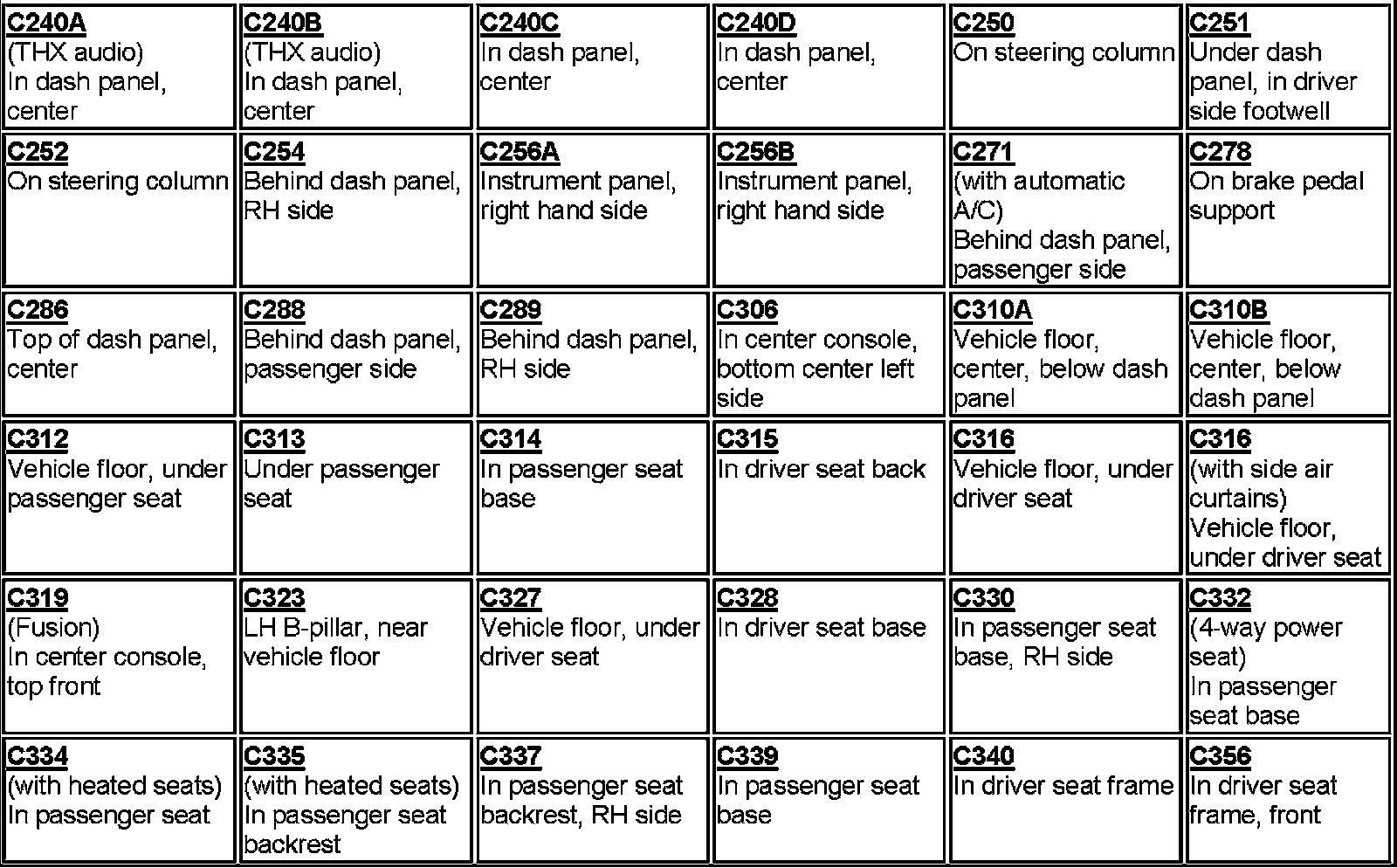

C240A-C356:

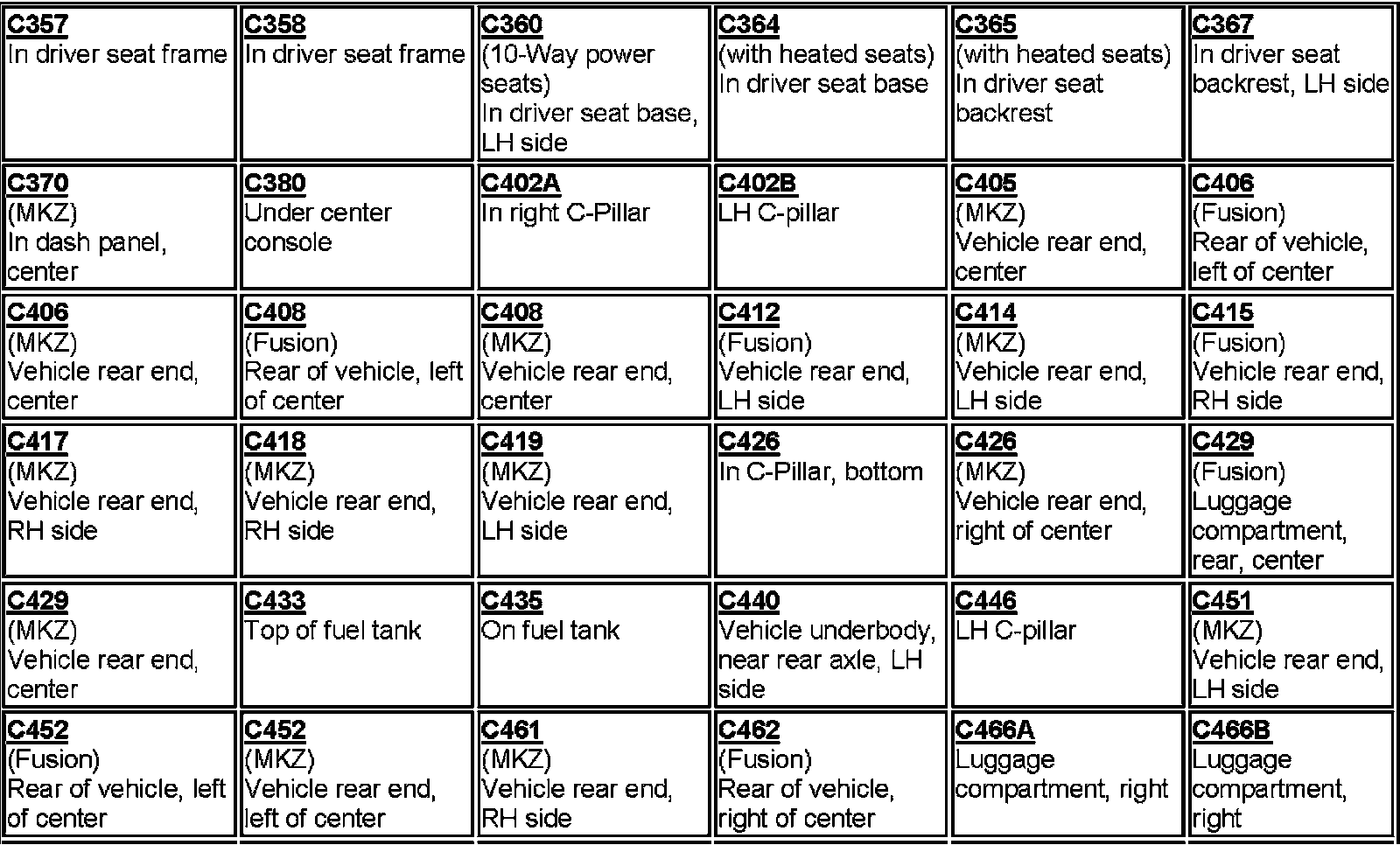

C357-C466B:

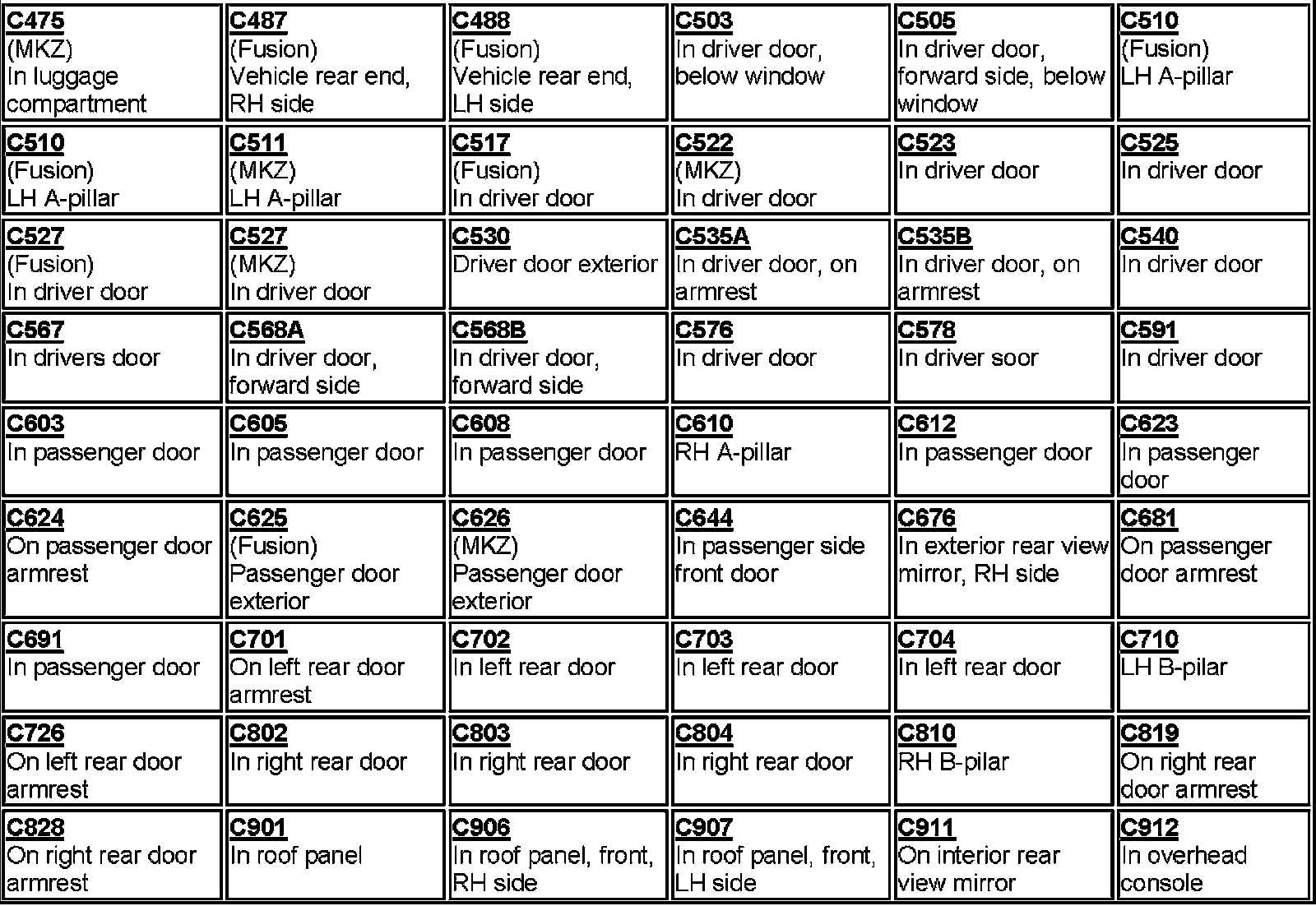

C475-C912:

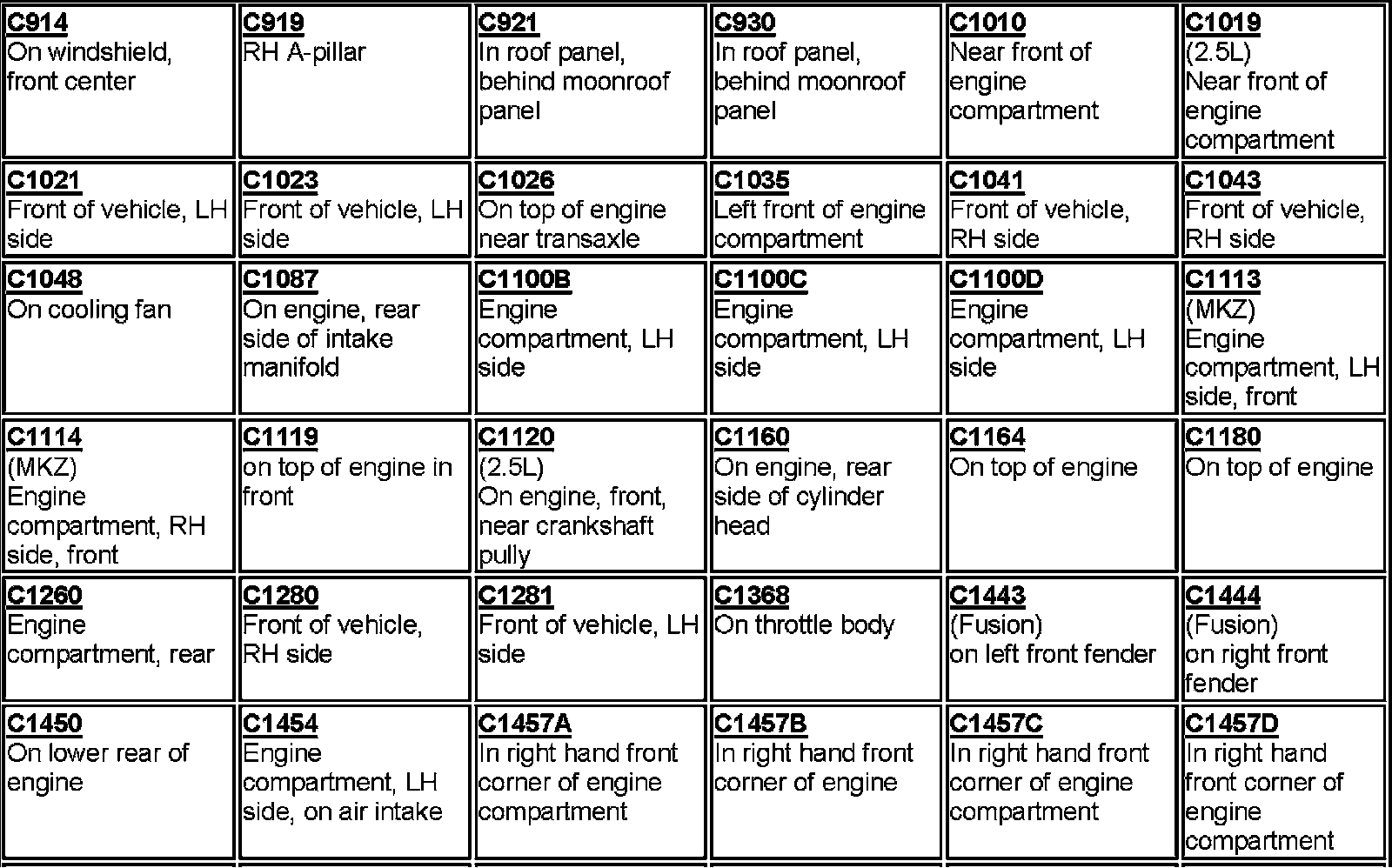

C914-C1457D:

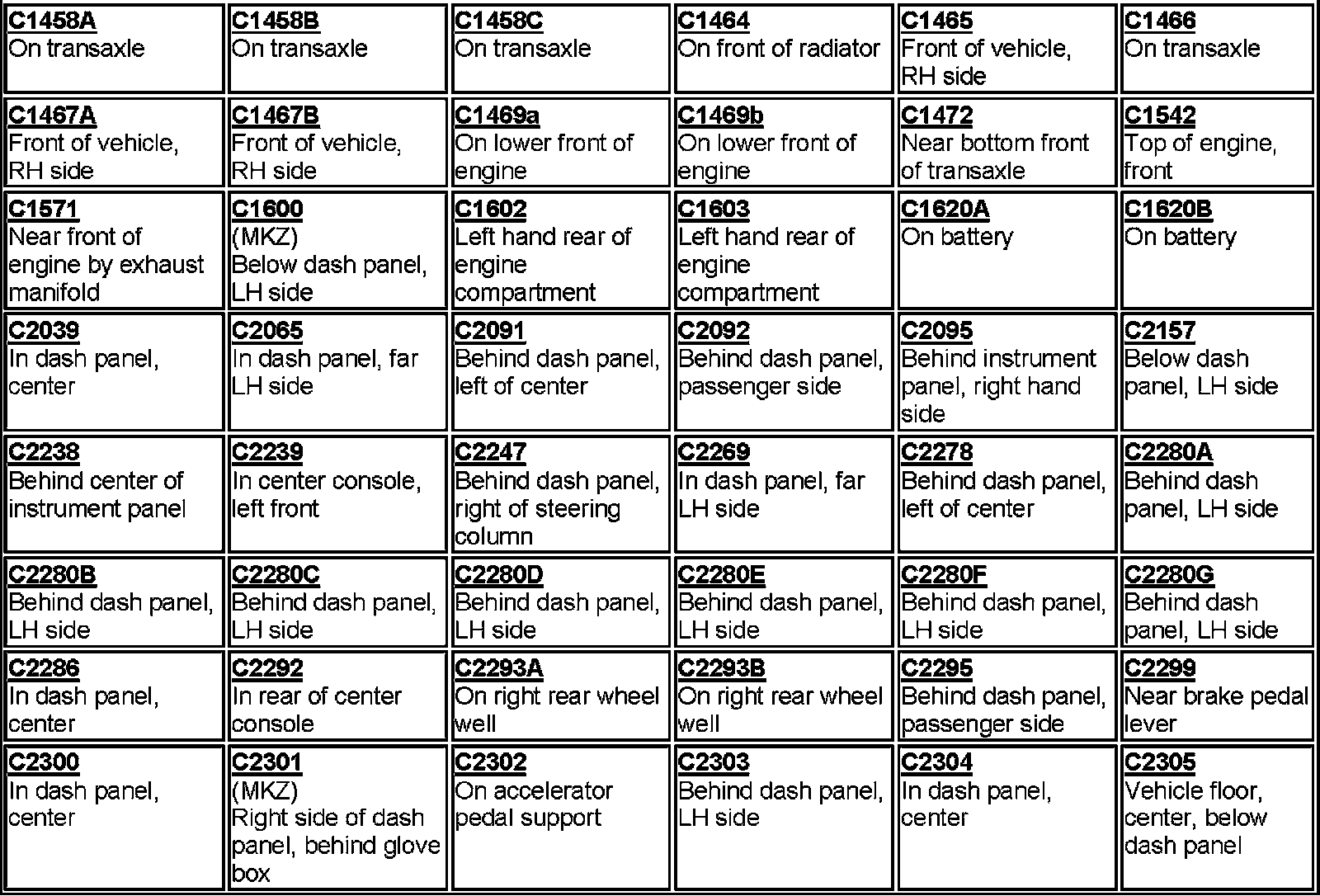

C1458A-C2305:

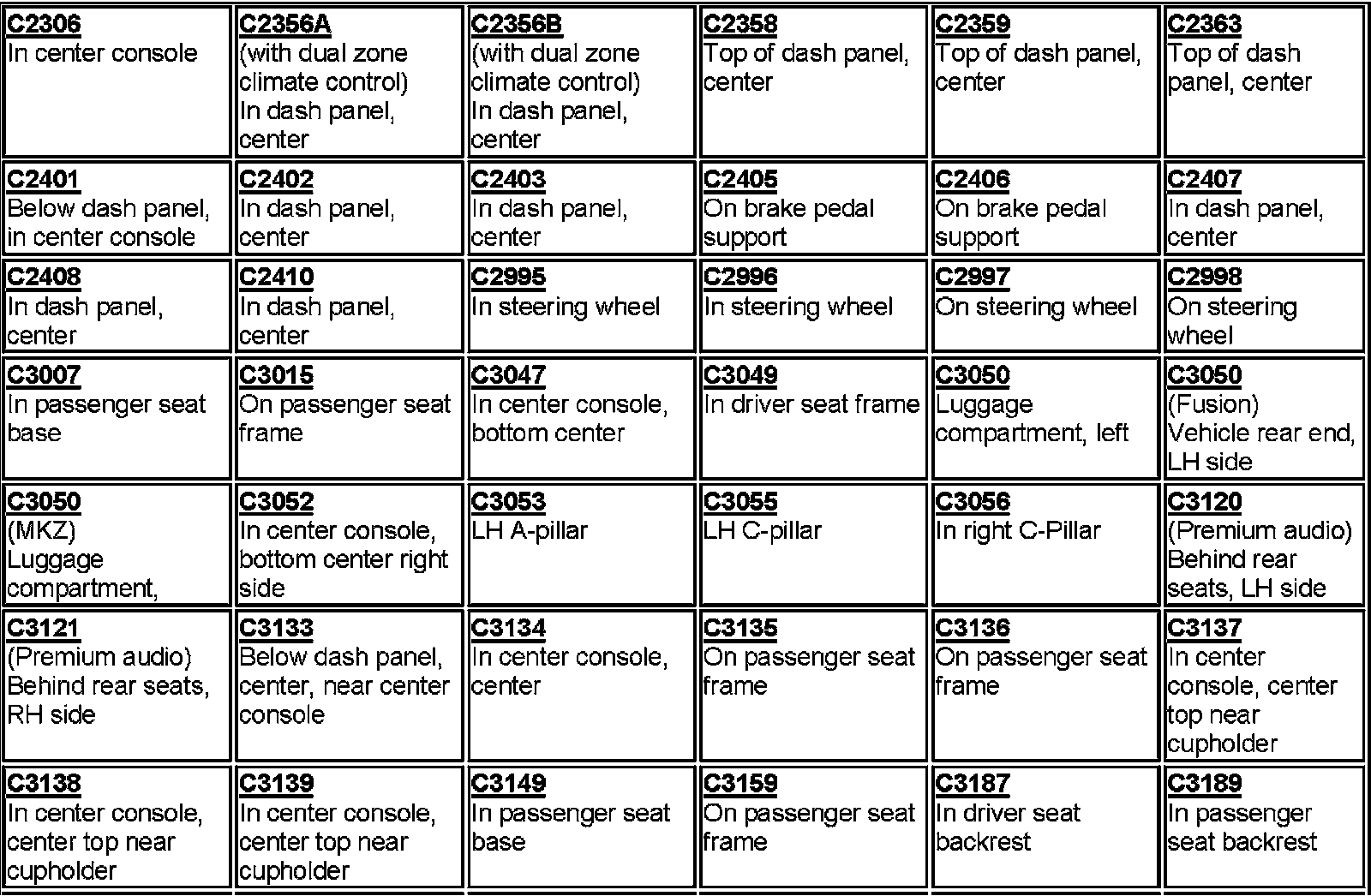

C2306-C3189:

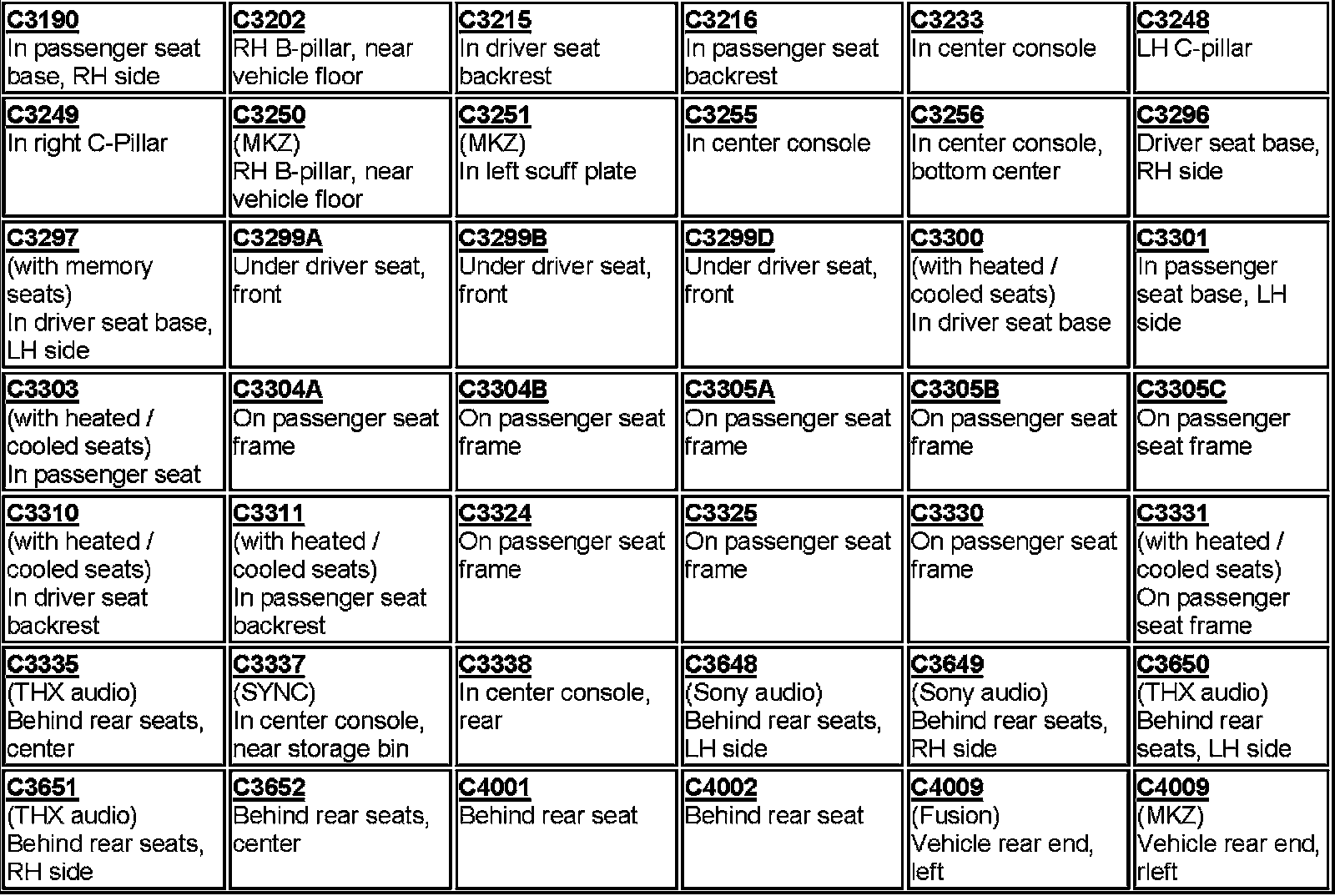

C3190-C4009:

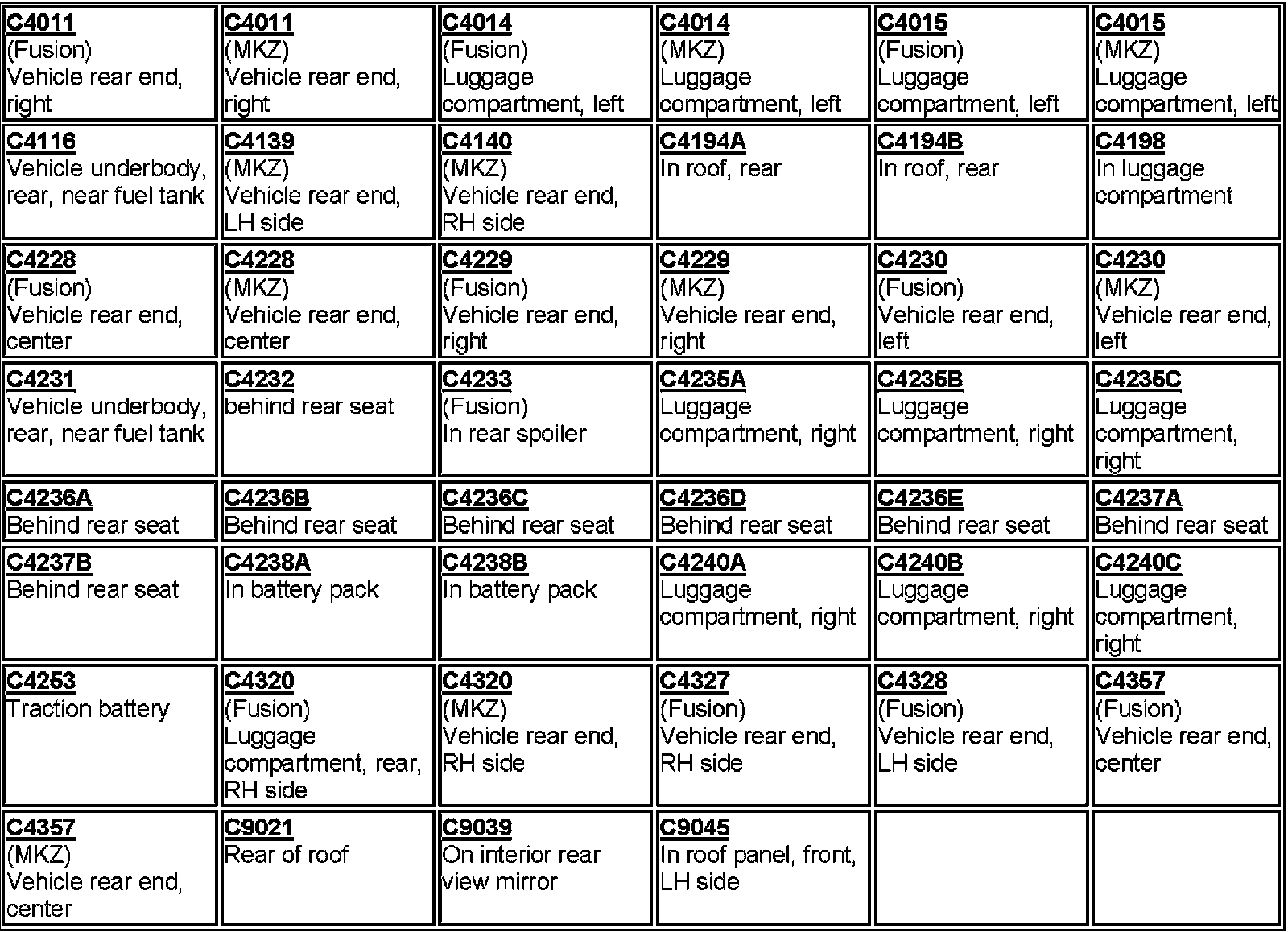

C4011-C9045:
