Automatic Transmission

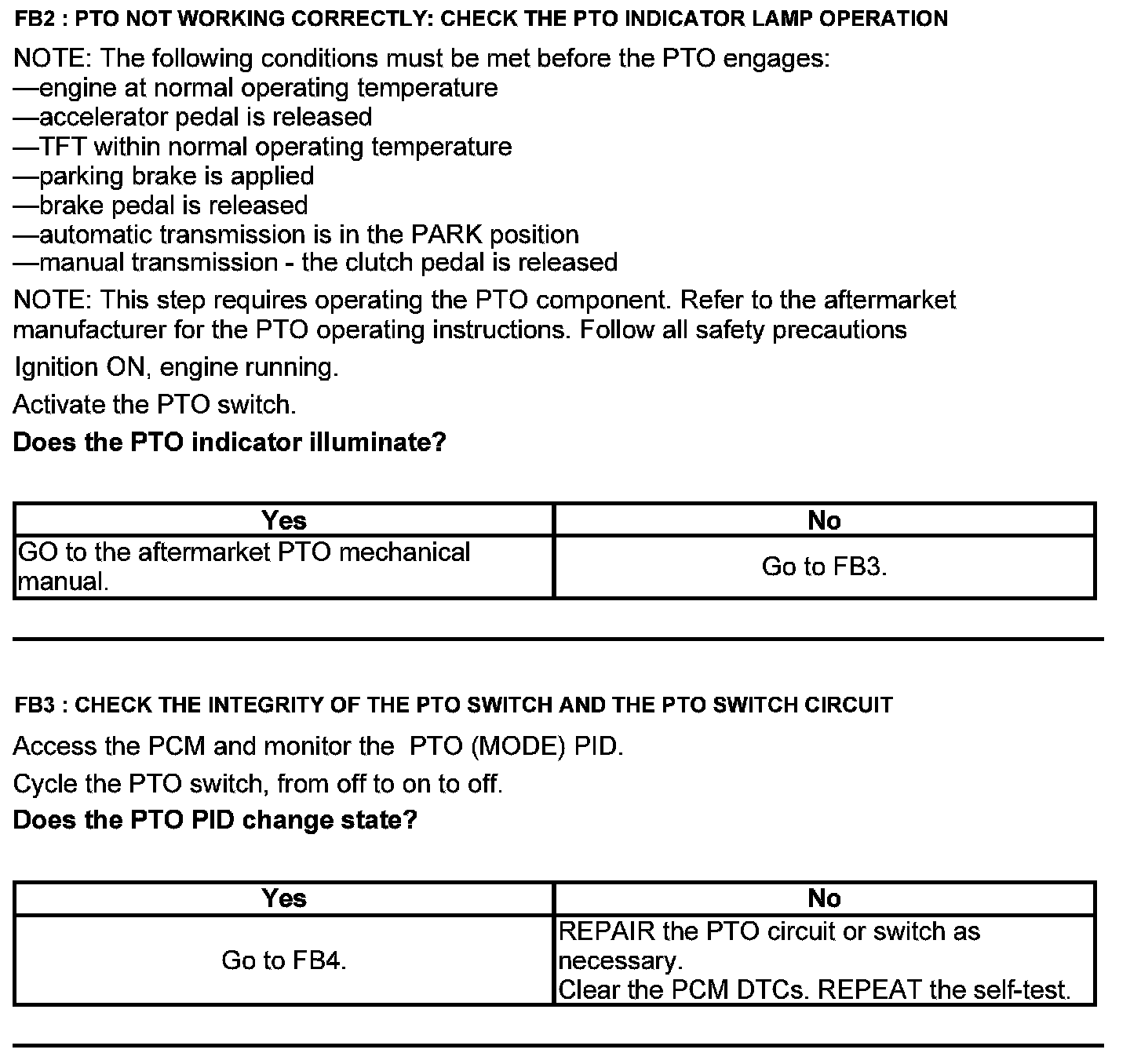

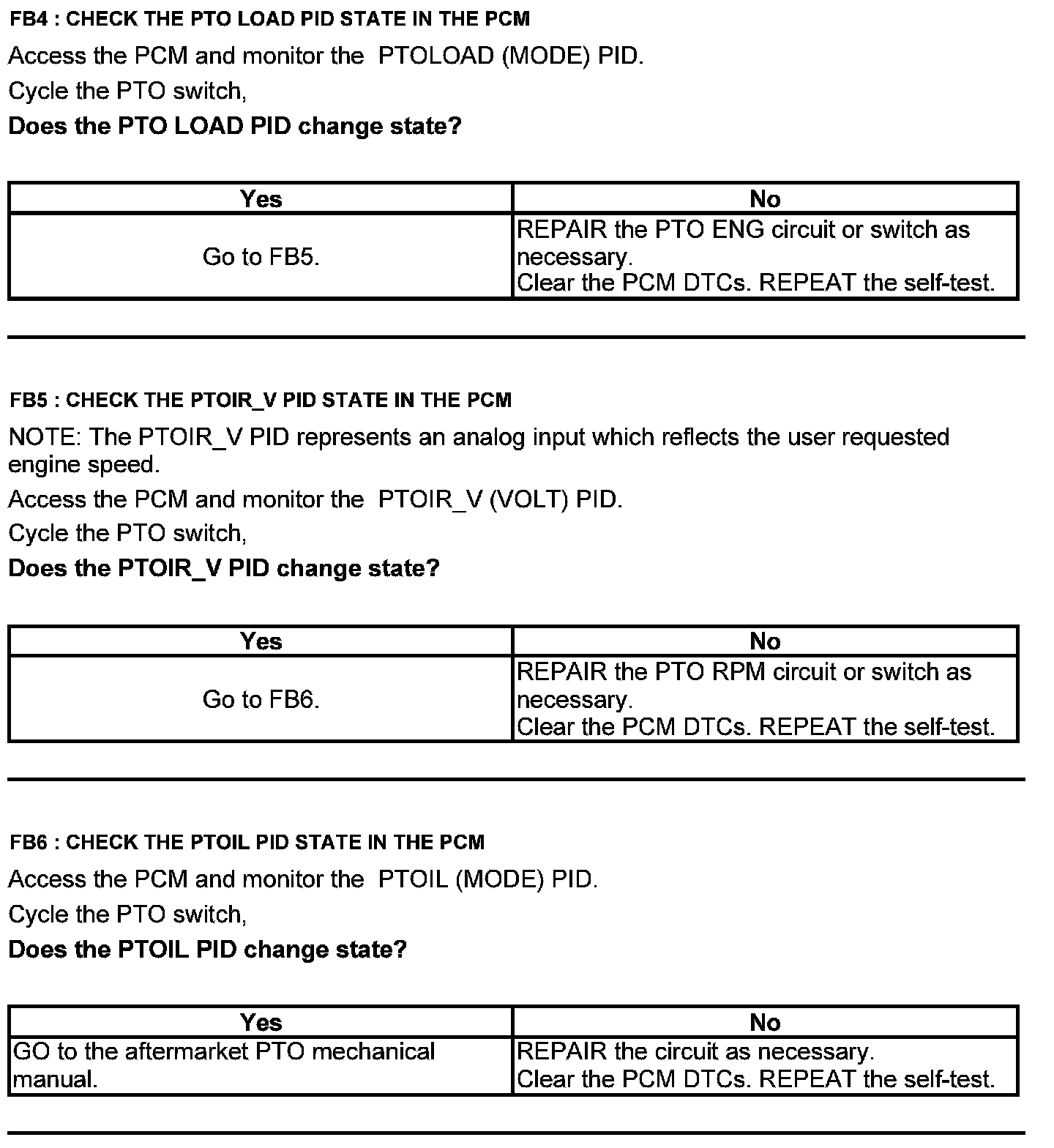

Power Take Off (PTO) - Automatic Transmission

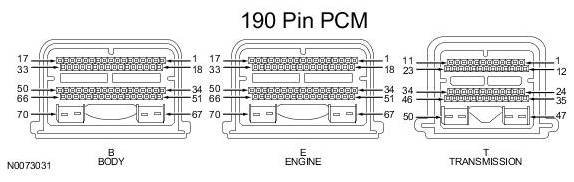

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
