Selector Lever Cable: Notes

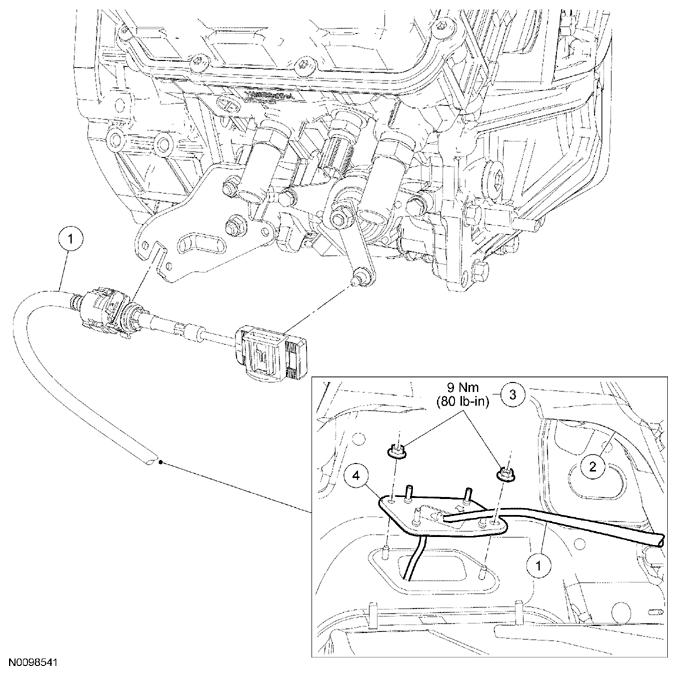

Fig 1: Exploded View Of Selector Lever Cable With Torque Specification
G07786429Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 54017A40 Insulation blanket
3 W707142 Selector lever cable grommet retaining nuts
4 57809 Selector lever cable grommet
