Differential Fluid Level Check

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Materials

Name	Specification
Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL	WSS-M2C942-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: If equipped.

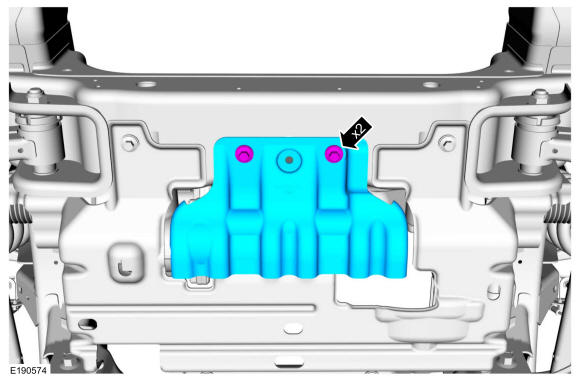

Remove the underbody shield bolts and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

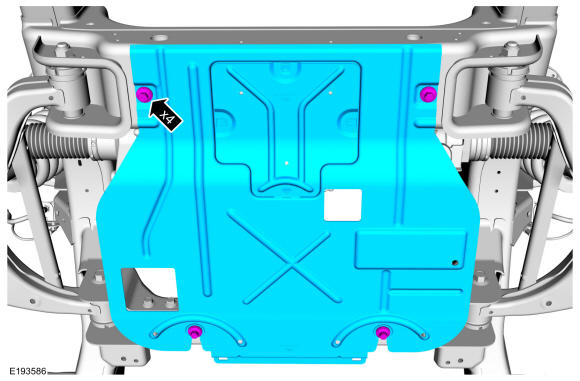

Remove the underbody shield bolts, the pin type retainers and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

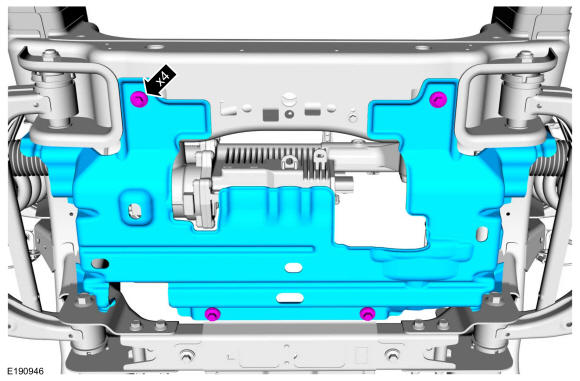

Remove the underbody shield bolts and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

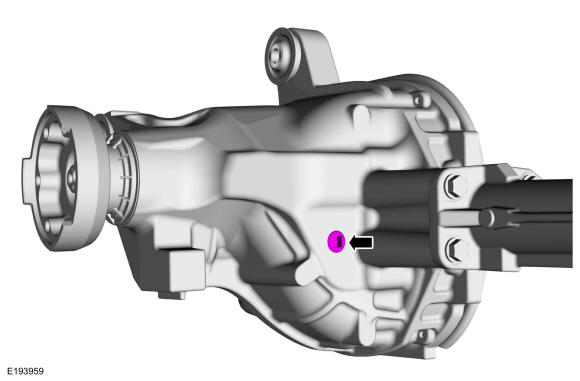

Remove the front differential fill plug.

Courtesy of FORD MOTOR COMPANY

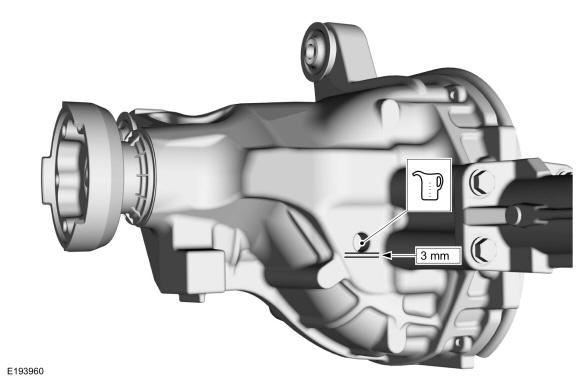

Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 3mm (0.118 in.) from the fluid level fill plug opening. Install the differential fill plug.
Material: Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY
Install the front differential fill plug.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and underbody shield bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the underbody shield bolts, or the pin type retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the underbody shield bolts.

Courtesy of FORD MOTOR COMPANY
