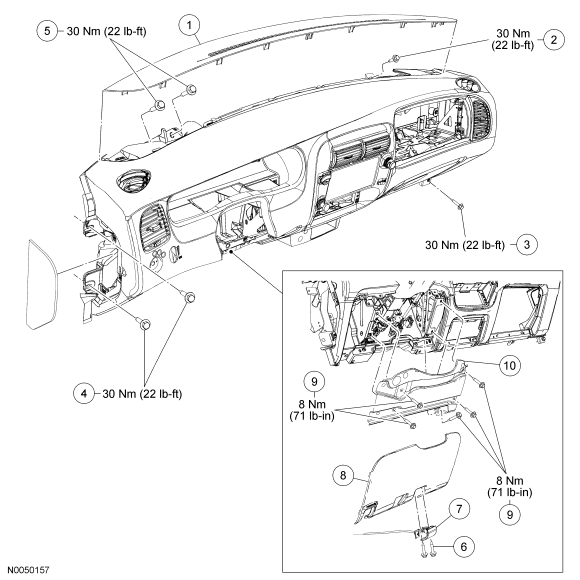

Instrument Panel - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 044E82 | Instrument panel defroster opening grille |
| 2 | N811560 | Instrument panel cowl top bolt |
| 3 | N811560 | Instrument panel bolt |
| 4 | N811560 | Instrument panel bolts (2 required) |
| 5 | N811560 | Instrument panel cowl top bolts (2 required) |
| 6 | N804693 | Hood release handle bolt (2 required) |
| 7 | 16B975 | Hood release handle |
| 8 | 04459 | Steering column opening panel cover |
| 9 | W705962 | Opening cover reinforcement panel bolts (5 required) |
| 10 | 017A28 | Opening cover reinforcement panel |
- For additional information, refer to the procedure in this article.
