Exterior rear view mirror switch: Schematic

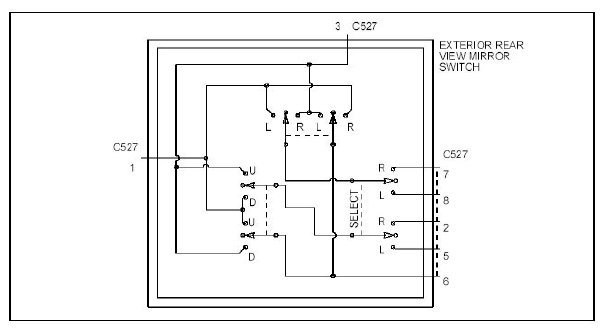

Fig 1: Exterior Rear View Mirror Switch - Component Testing
G07898337Courtesy of FORD MOTOR CO.
