Roof opening panel control switch: Schematic

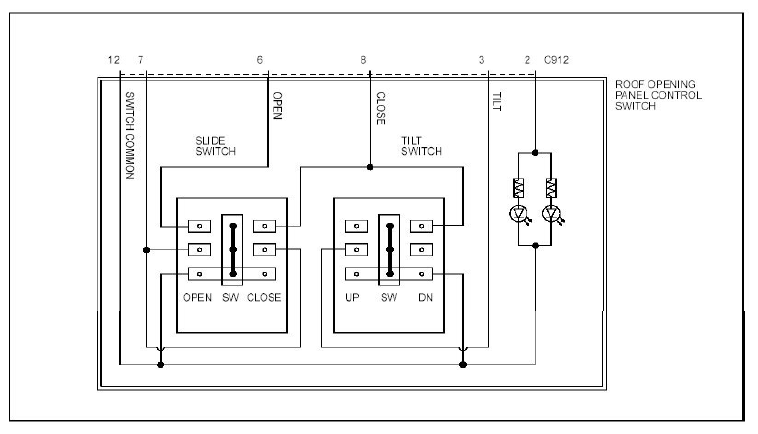

Fig 1: Roof Opening Panel Control Switch - Component Testing
G07898317Courtesy of FORD MOTOR CO.
