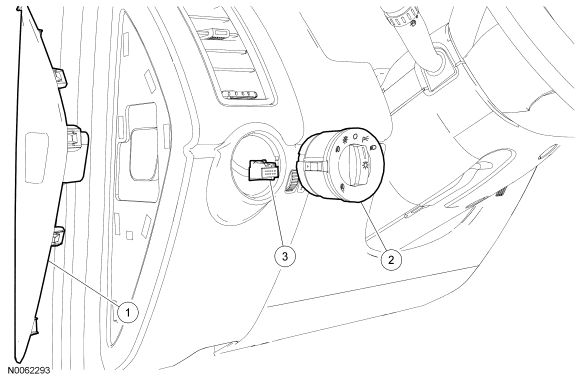

Fig 1: Exploded View Of Headlamp Switch
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
7804481
Instrument panel side finish panel
2
11654
Headlamp switch
3
-
Headlamp switch electrical connector (part of 14401)
