Rear Lamp Assembly: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Edge shown, MKX similar.

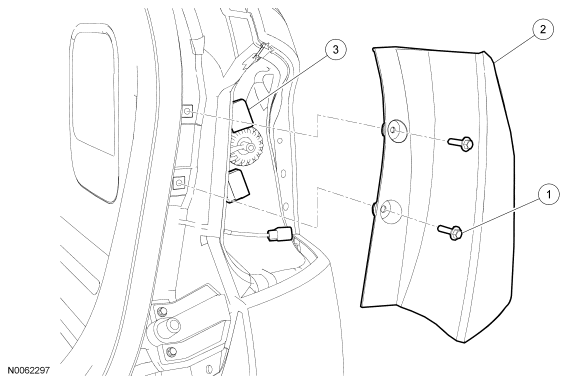

Fig 1: Exploded View Of Rear Lamp Assembly
GF0032332Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Rear lamp assembly screws (2 required)
2 13A505/13A504 Rear lamp assembly (LH/RH)
3 - Rear lamp assembly electrical connectors (part of 14A005)
