Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH center instrument panel finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the RH center instrument panel finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  3. Remove the 4 screws and the Front Controls Interface Module (FCIM).
    • Disconnect the electrical connectors.
    • To install, tighten to 3 Nm (27 lb-in).

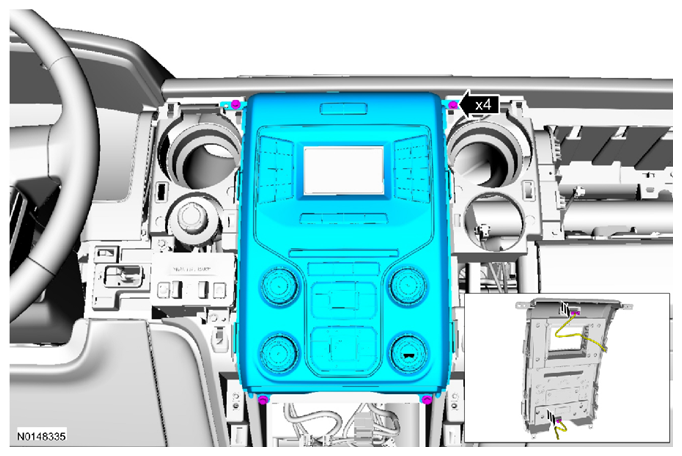

      Fig 1: Locating Front Control Interface Module Mounting Screws
      G08342541Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
